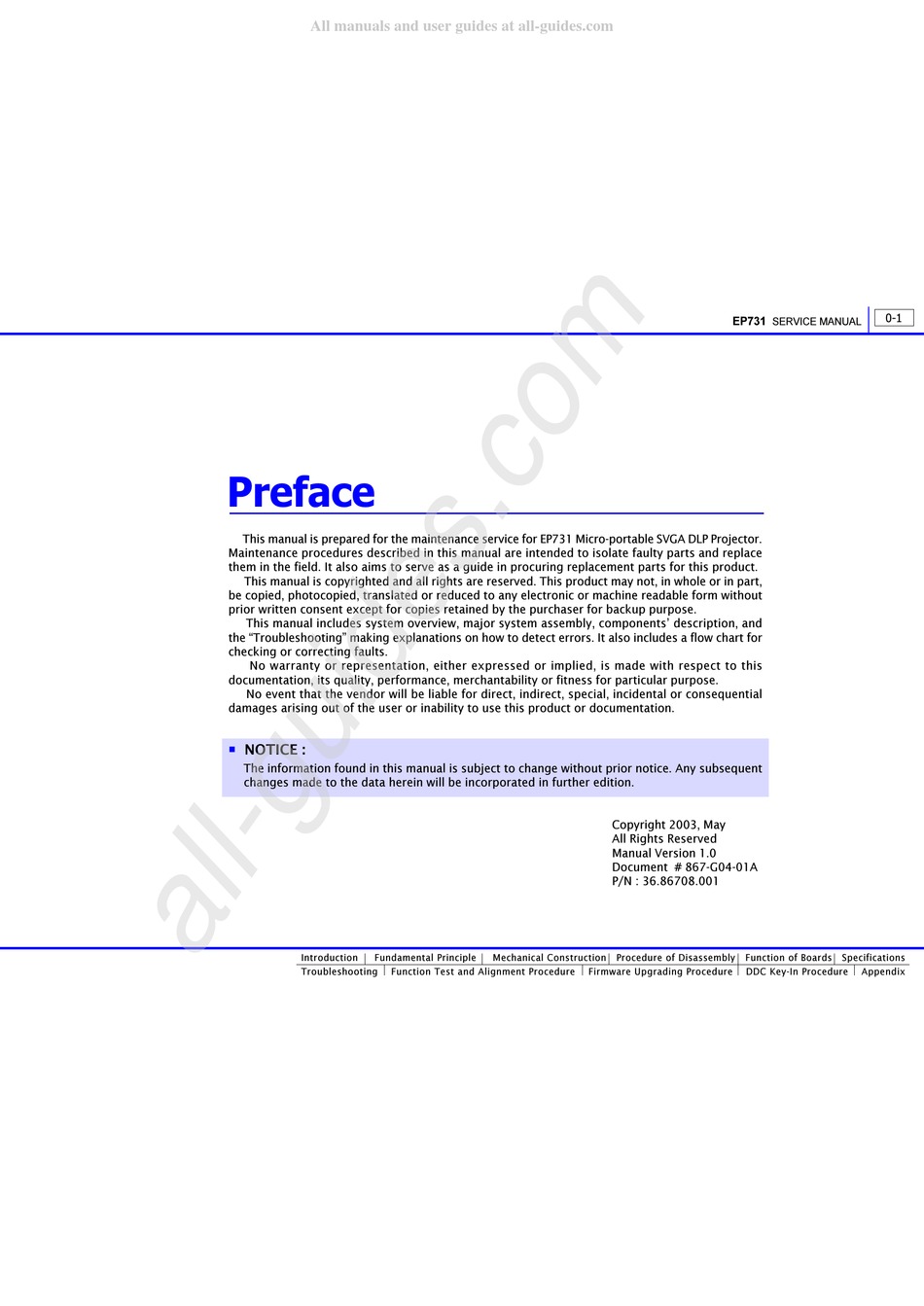

Preface
This manual is prepared for the maintenance service for EP731 Micro-portable SVGA DLP Projector.
Maintenance procedures described in this manual are intended to isolate faulty parts and replace
them in the field. It also aims to serve as a guide in procuring replacement parts for this product.
This manual is copyrighted and all rights are reserved. This product may not, in whole or in part,
be copied, photocopied, translated or reduced to any electronic or machine readable form without
prior written consent except for copies retained by the purchaser for backup purpose.
This manual includes system overview, major system assembly, components’ description, and
the “Troubleshooting” making explanations on how to detect errors. It also includes a flow chart for
checking or correcting faults.
No warranty or representation, either expressed or implied, is made with respect to this
documentation, its quality, performance, merchantability or fitness for particular purpose.
No event that the vendor will be liable for direct, indirect, special, incidental or consequential
damages arising out of the user or inability to use this product or documentation.
¡
NOTICE :
The information found in this manual is subject to change without prior notice. Any subsequent
changes made to the data herein will be incorporated in further edition.
Introduction
Fundamental Principle
Troubleshooting
Function Test and Alignment Procedure
Copyright 2003, May
All Rights Reserved
Manual Version 1.0
Document # 867-G04-01A
P/N : 36.86708.001
Mechanical Construction
Procedure of Disassembly
Firmware Upgrading Procedure
0-1
EP731
SERVICE MANUAL
Function of Boards
Specifications
DDC Key-In Procedure
Appendix
