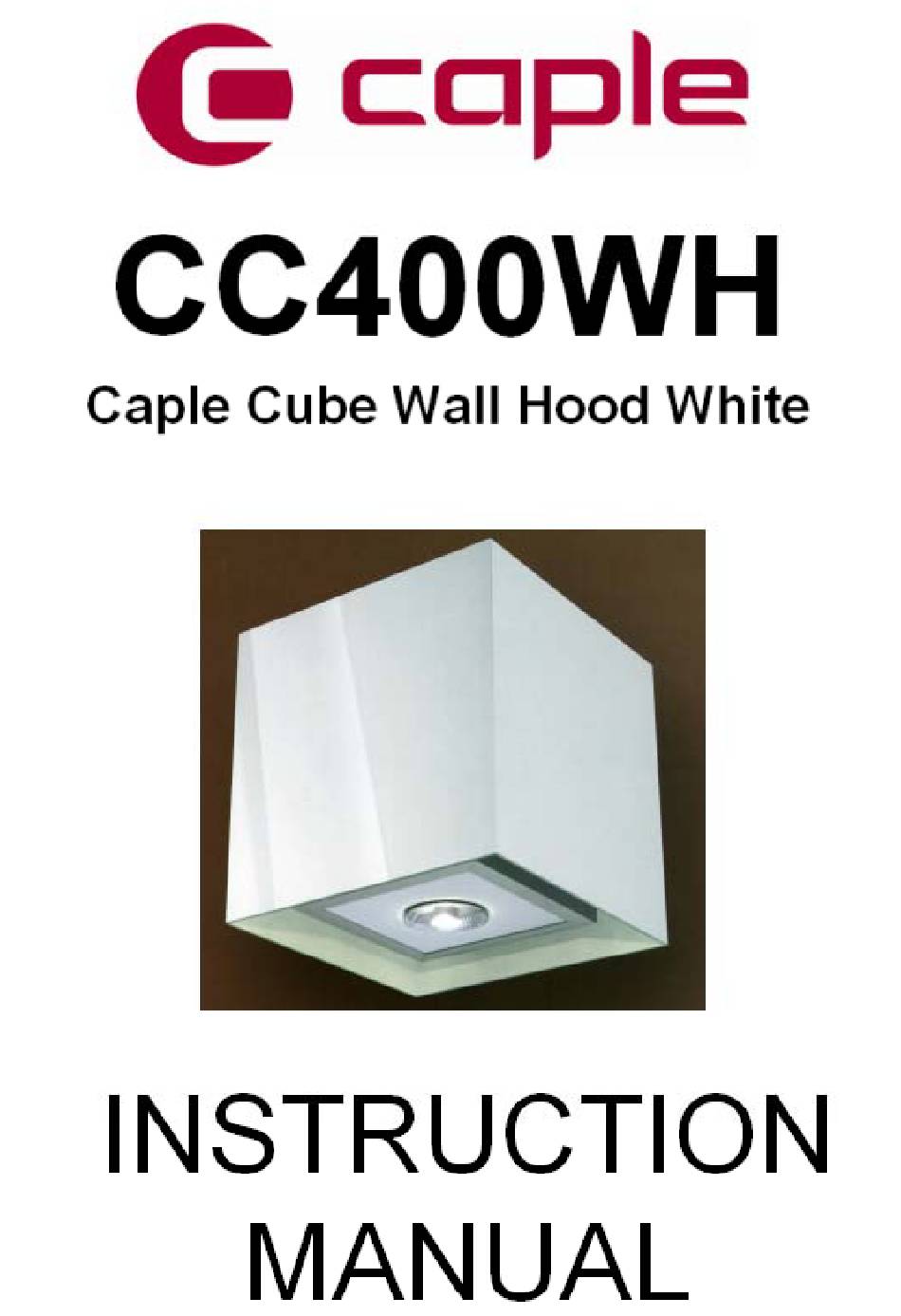

Caple CC400WH Instruction Manual
  1. Manuals
  2. Brands
  3. Caple Manuals
  4. Ventilation Hood
  5. CC400WH
  6. Instruction manual
Caple CC400WH Instruction Manual

Caple CC400WH Instruction Manual

Hide thumbs
1
2
3
4
5
6
7

Advertisement

Table of Contents

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CC400WH and is the answer not in the manual?

Questions and answers

Related Manuals for Caple CC400WH

Summary of Contents for Caple CC400WH

  • Page 2 Fig.4 Fig.1 VERSIONE ASPIRANTE EXHAUST MODE Fig.2 ABLUFTBETRIEB MODE ASPIRANTE MODALIDAD ASPIRANTE AFZUIGING Fig.3 VERSIONE FILTRANTE RECIRCULATING MODE UMLUFTBETRIEB MODE FILTRANTE MODALIDAD FILTRANTE FILTER 400 - 800 650 - 750 3LIOD2...
  • Page 3 Fig. 5 Fig. 6 Fig. 9 Fig. 7 Fig. 8 Fig.10 17 cm X + 10 cm 20 cm 65-75 cm 3LIOD2...

  • Page 4: Installing Instructions

    USE AND INSTALLING INSTRUCTIONS EXHAUST MODE INSTALLATION Carefully read the following important information • Drill the holes A-B-C for wall-fixing according regarding installation safety and maintenance. Keep this information booklet accessible for further to indications quoted in (Fig.3). Make the holes consultations.

  • Page 5: Use Instructions

    USE INSTRUCTIONS The filters are not washable nor re-useable and must be replaced at maximum every four months. CONTROL PANEL (Fig.1) To assemble the carbon filter it is necessary to: - Light ON/OFF - remove the metal anti-grease filters (Fig.4M) - Switch on at th speed (maximum) - rotate the 2 carbon filters to remove them (Fig.2) Speed reduction from th to st speed then...
  • Page 6 E NGL I S H RECIRCULATING KIT FOR COOKER HOOD RECIRCULATING KIT COMPONENTS Fig.1 COMPONENTS LIST: Fig.2 A) Protection grid B) Connecting tube C) Carbon filters D) Screws ASSEMBLING THE RECIRCULATING SYSTEM • Insert the connecting tube B into the appropriate opening of the cooker hood (fig.1) •...
