Summary of Contents for Caple CCH601BK

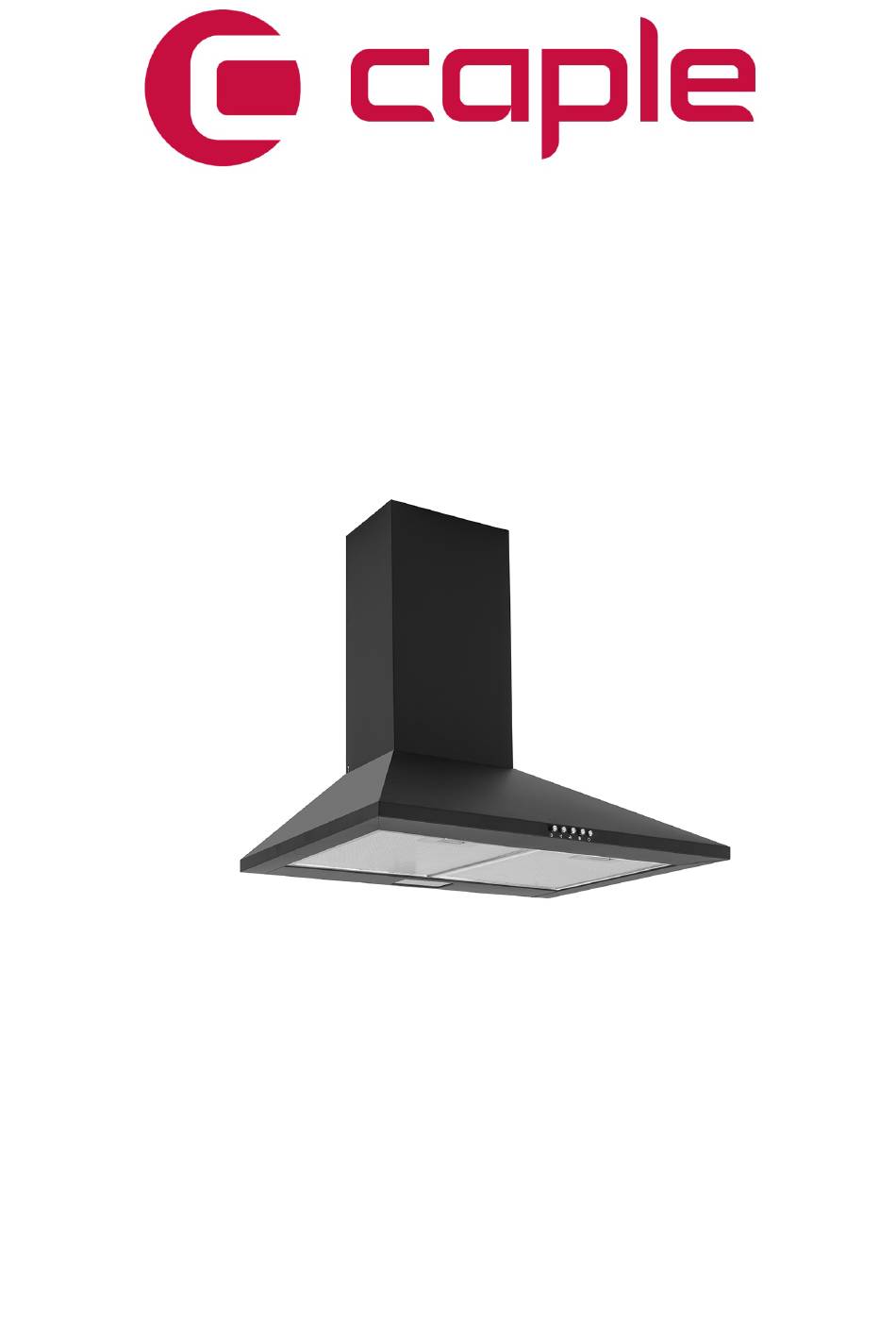

- Page 1 CCH601BK Caple 600mm Chimney Black Technical Manual...
- Page 2 CCH601BK Caple 600mm Chimney Black...
- Page 3 CCH601BK Caple 600mm Chimney Black...
- Page 4 CCH601BK Caple 600mm Chimney Black Item Part Number Description Quantity B21-2201-004-3 Upper Chimney (400MM height) B21-2201-006-3 Lower Chimney (400MM height) B71-4201-011-000-01-B Casing Assembly B19-K125-001-B Switch Assembly B23-2201-094-P Switch holder B62-2401-592-0 LED lamp Motor Assembly B76-4201-003-B B35-2802-021-0 Grease Filter Lamp connector cover...
- Page 5 CCH601BK Caple 600mm Chimney Black For Mechanical Switch（B19-K125-001-B） Item Part Number Description Quantity B30-2201-090-0 Switch box cover lid B60-2401-195-0 Push button B30-2201-089-0 Push button bottom B62-2301-048-0 Switch Cable For Chassis Assembly（B71-4201-011-000-01-B） Item Part Number Description Quantity B23-2201-016-P Round Casing Lid...
- Page 6 AC 220-240V 50/60Hz Control switch 1×2W MOTOR...
