Targus Control Max

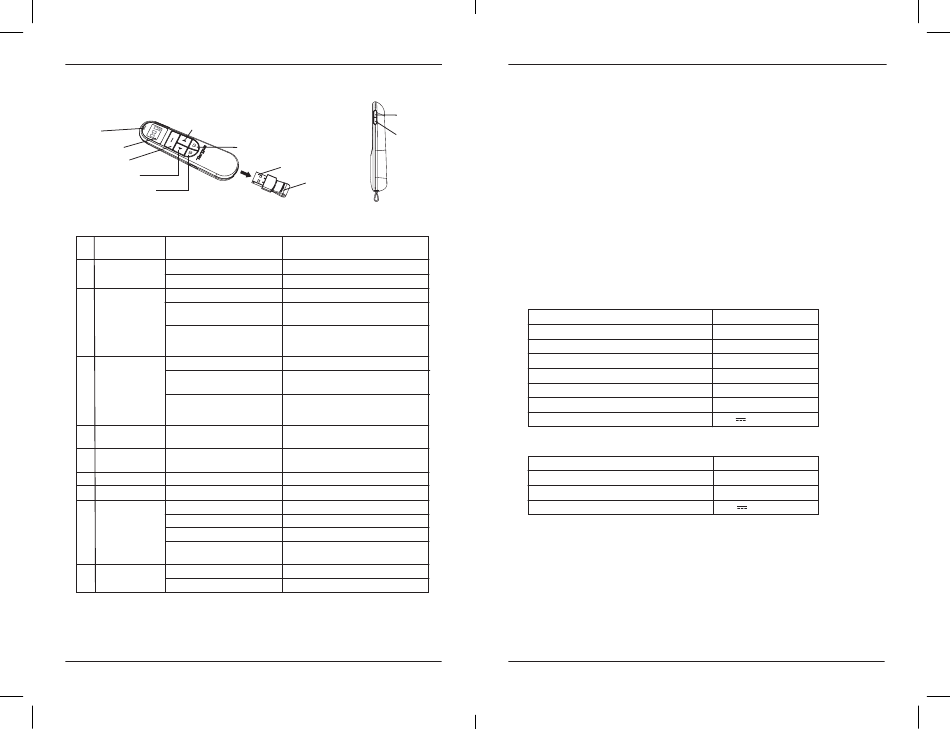

Keys and Functions

Laser
Indicator
Forward Button
LED
Black Screen Button
LCD Screen
Red Laser Button
Backward Button
Play PTT Button
Single Button /
Operation
Combo Button
Long press button less than 120 sec.
1 Laser Button
Long press button over 120 sec.
1. Short press during play PTT Mode
2. Short press during Vibration Timer
2 Forward Button Setting Mode
3. Long press during Vibration Timer
Setting Mode
1. Short press during play PTT Mode
2. Short press during Timer Setting Mode
3 Backward Button
3. Long press during Timer Setting Mode
Laser Button +
4
Long press Laser Button + Play PTT 3 sec.
Play PTT Button
Laser Button +
Long press Laser Button +
5
Black Screen Button
Black Screen Button 3 sec.
Play PTT Button
Short press
6
Black Screen Button
Short press
7
1. Short press first time
Vibration Timer
2. Short press second times
8
Button
3. Short press third times
4. Long press 3 sec.
1. Short press first time
Vibration Timer Start /
9
Pause Button
2. Short press second times
4
Vibration
Timer Button
Vibration
Timer Start /
Pause Button
USB-A Receiver
Silicone Loop
Function Description
Show red laser point
Stop to show red laser point
Forward page
Adding 1 hour at Hour Zone
or adding 1 min at Minute Zone
Continuous adding 1 hour until to 9 hours at Hour
Zone or continuous adding 1 minute until 59
minutes at Minute Zone
Backward page
Decreasing 1 hour at Hour Zone or
decreasing 1 minute at Minute Zone
Continuous decreasing 1 hour until to 0 hour at
Hour Zone or continuous decreasing 1 minute until
0 minute at Minute Zone
2.4G Wireless Mode pairing or re-pairing
Bluetooth Wireless Mode pairing or re-pairing
Play PTT / end PTT
Black screen / resume screen during play PTT
Enter Vibration Timer Setting Mode at Hour Zone
Enter Vibration Timer Setting Mode at Minute Zone
Quit Vibration Timer Setting Mode
Clear Vibration Timer Setting and quit Vibration
Timer Setting Mode
Start Vibration Timer
Pause Vibration Timer
Targus Control Max

Safety Measures

• Keep the presenter away from young children.
• Any attempt to disassemble, adjust or repair the presenter may result in exposure to the safety
hazards.

Troubleshooting

What do I do if the response time of the presenter is slow or it intermittently stops
working?
• Make sure that the presenter is within 66 feet (20 m) of its receiver.
• Increase the distance between the presenter's receiver and the base units of other wireless
devices.
• Turn off any wireless devices and their base units that are near the presenter's receiver.
• Replace the battery.

Product Specification

Wireless Presenter (AMP068)
2.4G Frequency Range
Bluetooth Frequency Range
Battery Type
Effective 2.4G RF Communication Range
Effective Bluetooth Communication Range
2.4G Maximum EIRP Power (dBm) (EU)
Bluetooth Maximum EIRP Power(dBm) (EU)
Rating
Wireless Receiver (AMP068R)
2.4G Frequency Range
Interface
2.4G Maximum EIRP Power (dBm) (EU)
Rating
2402MHz-2480MHz
2402MHz-2480MHz
AAA battery
20 metres max.
10 metres max.
-6.2dBm
-6.0dBm
3V 100mA
2402MHz-2480MHz
USB 1.1 / 2.0
-12.7dBm
5V 100mA
