Summary of Contents for Crosley Furniture Shoreline CF3118

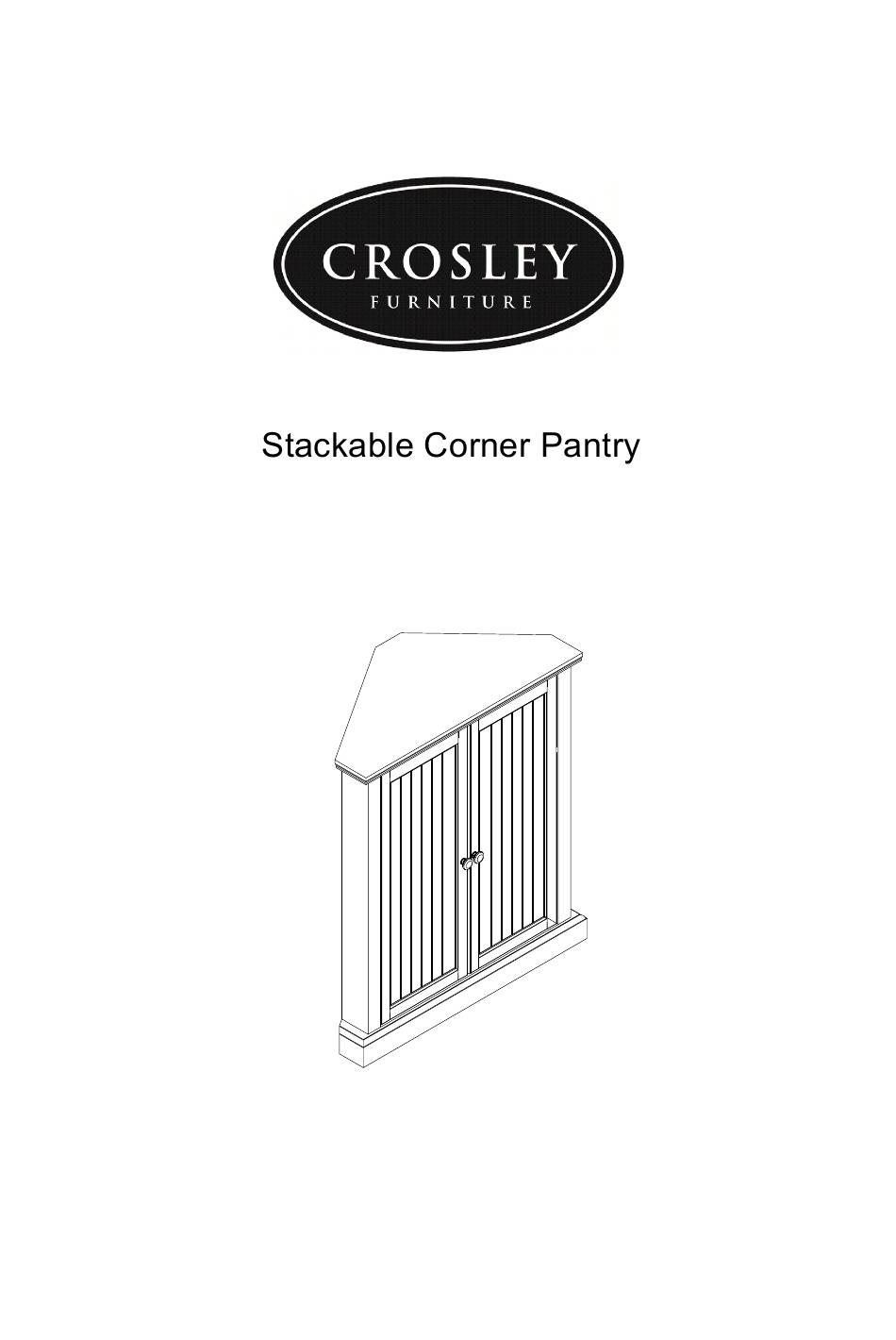

- Page 1 CF3118...
-
Page 2: Part List
PART LIST Top Panel Bottom Panel Left Panel Right Panel Back Rail 1 PC 1 PC 1 PC 1 PC 1 PC Back Panel Adjustable Shelf Door Panel 2 PCS 1 PC 2 PCS... - Page 3 ADDITIONAL TOOLS (Not Provided) Note: It is not recommended to use power tools during assembly...
- Page 4 Step 1. There are two installation options for magnet (part #4) based on overlay of pantries. Attach magnet (part #4) to top panel (part A) or bottom panel (part B) using round head screws (part #5) and phillips head screwdriver. Attach cam bolts (part #6) to top panel (part A) and bottom panel (part B) using phillips head screwdriver.
- Page 6 #9 #9 #9 x 32...
- Page 8 Step 9. Flip and overlay pantries together. (Not Included) Step 10. Attach connecting bars (part #12) to top panels (part A) using short screws (part #13) and phillips head screwdriver. Important: Safety strap kit (part #14) must be installed to prevent tipping, damage and/or injury.
