Setup Guide — SW MTP T 15HD A
This sheet provides quick start instructions for an experienced installer
to set up and operate any of the SW MTP T 15HD A Series
switchers.

Installation

Step 1 — Mounting
Turn off or disconnect all equipment power
sources and mount the MTP switcher as required.
Step 2 — Video and audio inputs
• Connect up to two, four, or six computer (VGA) video
sources to the Input connectors.
• Plug up to two, four, or six 3.5 mm stereo audio plug into
the audio jack.
Step 3 — TP output to the receiver
Terminate a TP cable as shown at right. Connect it
between the RGB/Audio Output connector and a
compatible MTP receiver.
N The cable should all be terminated using the
same standard on both ends of the cables.
Step 4 — Connect a local audio device
Connect an audio device to the Audio connector.
Wire the connector as shown at right.
NO GROUND HERE.
NO GROUND HERE.
Do not tin the wires!
C Connect the sleeves to ground (Gnd). Connecting the sleeve to a negative (-)
terminal will damage the audio output circuits.
Step 5 — Power
Wire the 2-pole captive screw connector for the included
external 12 VDC power supply as shown at right. Plug it into
the switcher.
Step 6 — Remote connector
N Use only one remote control type, RS-232 serial or
contact closure.
Connect an RS-232 OR contact closure controller. Wire the
connector as shown in the table at right. For contact closure
control, momentarily tie an input pin to ground to select
that input.
Step 7 — Pre-Peak
View the image and set the Pre-Peaking switch for the
PRE-
PEAK
best image quality to correct for long cable runs of the
ON
entire sytem (including all daisy-chained receivers).
OFF
INPUT 1
INPUT 2
Pins:
T568A
1 2 3 4 5 6 7 8
Pin Wire color
1 White-green
2 Green
3 White-orange
4 Blue
5 White-blue
6 Orange
7 White-brown
Insert
8 Brown
TP Wires
NOTE If you are using Enhanced
Skew-Free™ A/V cable, use the
TIA/EIA T568A standard only.
Tip
Tip
Ring
Sleeve(s)
Sleeve(s)
Tip
Tip
Ring
Unbalanced Stereo Output Balanced Stereo Output
Smooth
A
SECTION A–A
Power Supply
Output Cord
Contact
RS-232 Closure Function
Pin
— In #1
1
TX —
2
RX —
3
4 — In #2
Gnd Gnd
5
— In #3
6
— In #4
7
— In #5
8
9 — In #6
Setup Guide — SW MTP T 15 HD A (cont'd)

Operation

Select an input — Press and release the desired input button.
Toggle auto switch mode on and off —
1. Press and hold the Mode (Input 1) button.
2. Press and release the Auto (Input 3) or Normal (Input 2) button.
3. Release the Mode button.
Extron
SW6 MTP T 15HD A
INPUT 3
Switcher
INPUT 4
T568B
Wire color
White-orange
Orange
White-green
Blue
White-blue
Green
White-brown
Brown
Ridges
Captive
Screw
A
Connector
Tie Wrap
3"
16 (5 mm) Max.
Input #1
Transmit data
Receive data
Input #2
Ground
Input #3
Input #4
Input #5
Input #6
Extron USA - West
Headquarters
+800.633.9876
Inside USA / Canada Only
+1.714.491.1500
+1.714.491.1517 FAX
O TE
R EM
D IO
R
AU
IO L
U D
B /A
T 5 R G
P U E-
IN PR A K
PE U T
O N
T P
O U
O FF
T 3
P U
IN
T 6
P U
IN
T 1
P U
IN T 4
P U
IN
W ER 2
U T
PO IN P
V M AX
12 0. 2A
NO
MO
1
T
PU
IN O U
W ER
PO
V X
12 MA
.5A
Laptop
Laptop

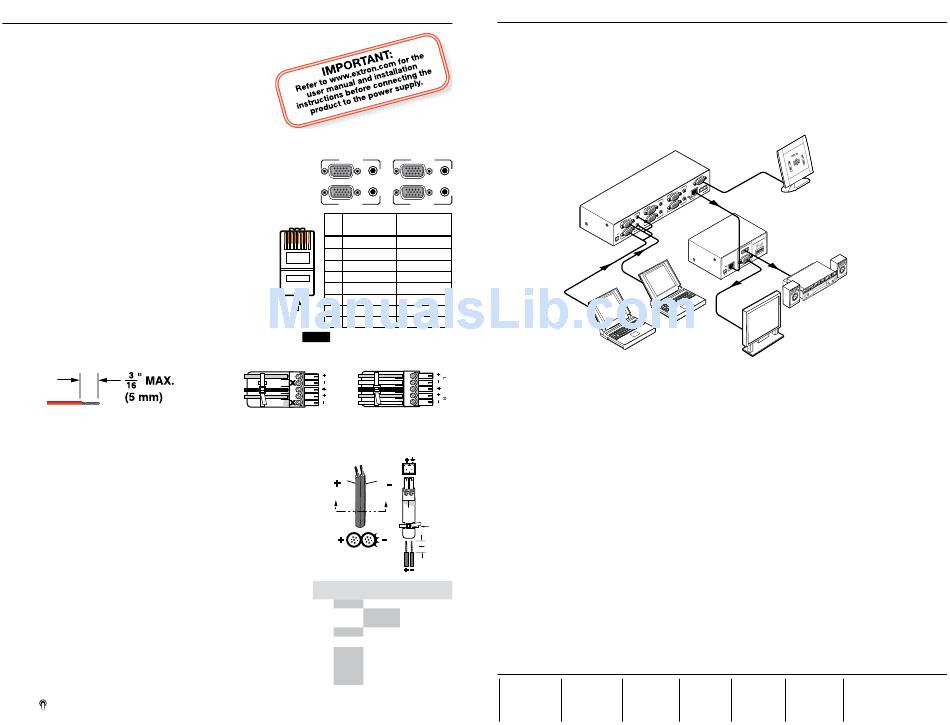

Typical SW6 MTP T 15HD A application
