Plug In - UTILITY WAREHOUSE Super router Setup Manual

Plug in

The way you set up your broadband
equipment depends on the type of
telephone socket you have installed
in your property.
If you have a standard master
socket you'll need to use a
microfilter for every socket in
your property that has a device
connected to it.
1. Insert the microfilter in the standard master socket.
2. Connect your telephone cable into the microfilter socket labelled
'phone' and the DSL cable into the socket labelled 'DSL'.
3. Connect the other end of the DSL cable into the grey socket labelled
'DSL' on the back of the router.
4. Assemble the power supply by sliding the plug into the slot on the
power adaptor and connect it to the router.
Telephone
Turn on the main switch and push the black on/off button on the back of
the router. A sequence of lights will come on and may take a minute or
two to stabilise.
Remember
You'll need to connect a filter to every telephone socket that is in
use in your property.
06 | Super Router Setup Guide

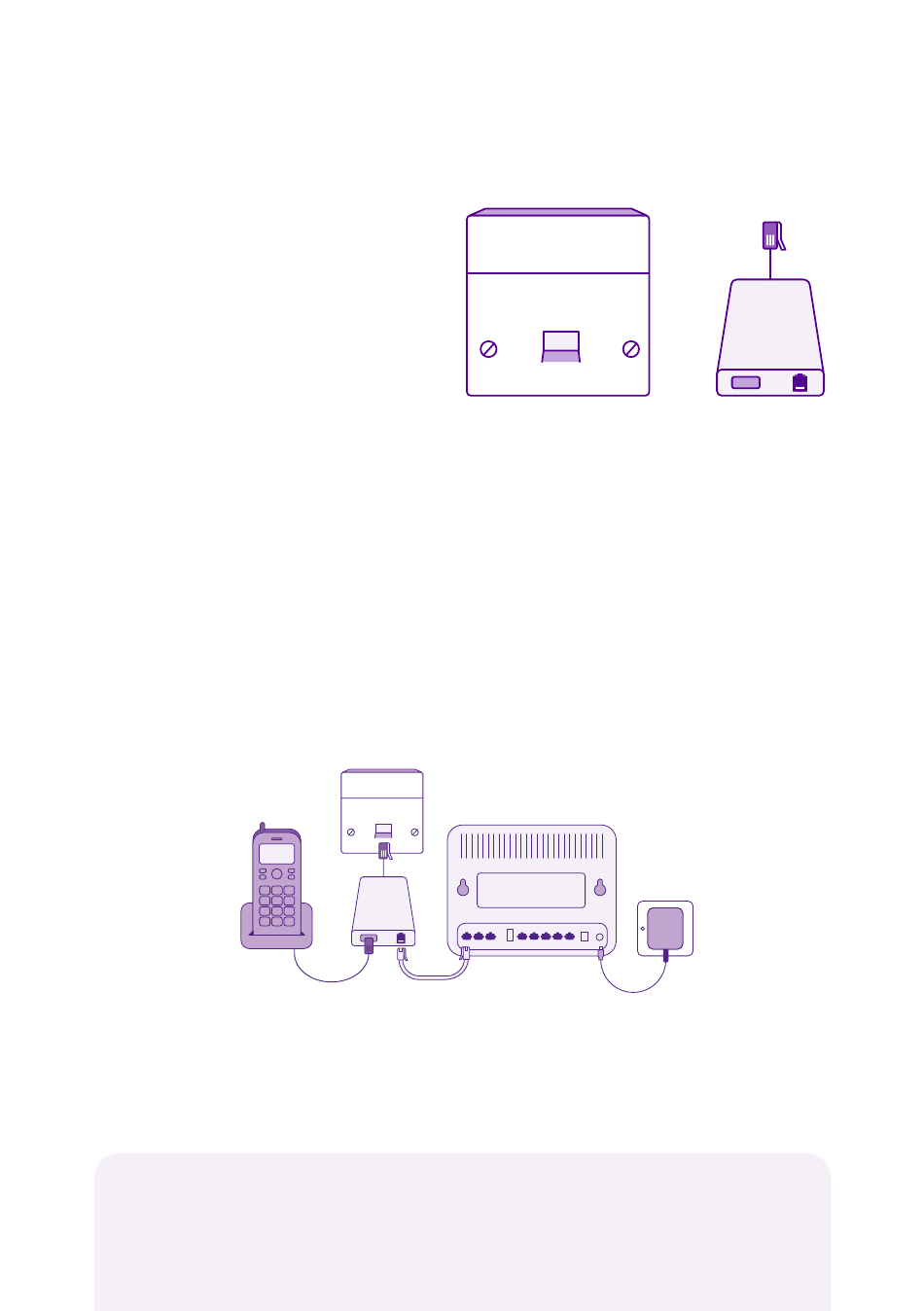

Standard master socket
Microfilter
DSL cable
Router
Power supply
