Industrial Electronic Devices
M
W
ODBUS
RITE
The means of the fields are:
If
the
field
"Enable"
checked, the Modbus request
is enabled;
In
the
field
"Slave
Address" the IP address of
the Modbus TCP device to
read is defined;
In the field "Port" the TCP
port
used
for
communication is defined;
In the field
"Slave
ID" the
address of the Modbus device that you have to write is defined;
In the field "Type" the data type of the register to write is defined. It is possible to choose between the following:
Coil Status;
o
Holding Register.
o
In the field "Address" the start address of the register to be written is defined;
In the field "NPoint" the number of consecutive registers to be written is defined;
In the field
"Poll
Time" the delay time to make the request is defined;
If the field
"On
Change" is checked, the converter sends the writing request when the data from IO-Link side change value;
If the field
"On
CMD" is checked, the converter sends the writing request when the data from IO-Link is received;
In the field
"Max
Error" the number of consecutive errors that the converter waits before suspending the request is defined;
In the field "Position" the address of the internal array where taking the information is defined;
In the field
"Start
Bit" the starting bit of the first byte of the field "Position" is defined;
If the field "Swap" is checked, the data written the Modbus registers are swapped;
If the field
"Swap
Word" is checked, the Modbus words are swapped;
In the field "Mnemonic" the description for the request is defined.
ADFweb.com S.r.l.
is
IP
the
User Manual IO-Link Slave / Modbus TCP Master
Document code: MN67963_ENG

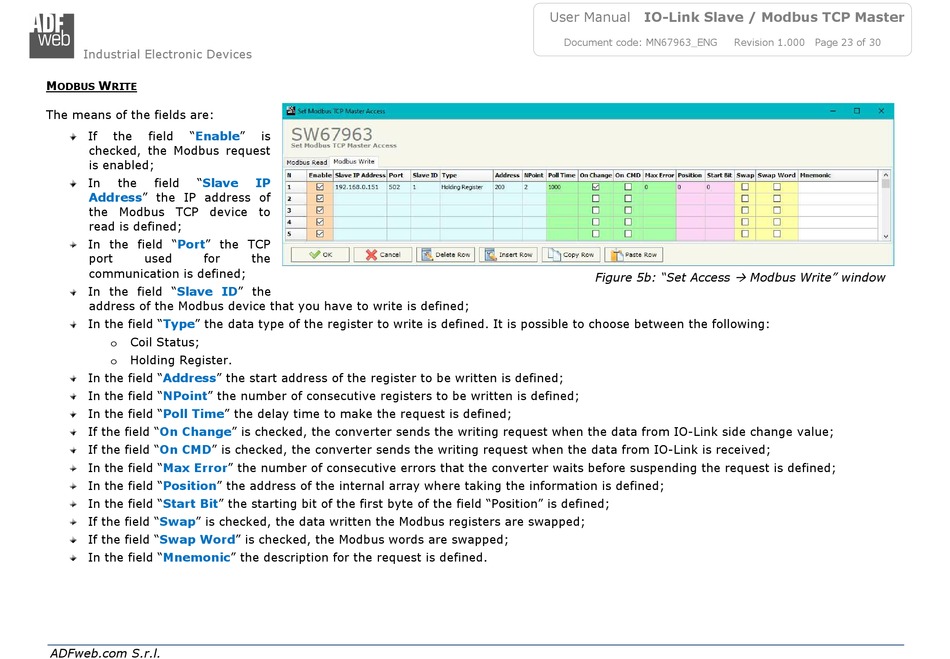

Figure 5b: "Set Access
Revision 1.000
Page 23 of 30
Modbus Write" window
