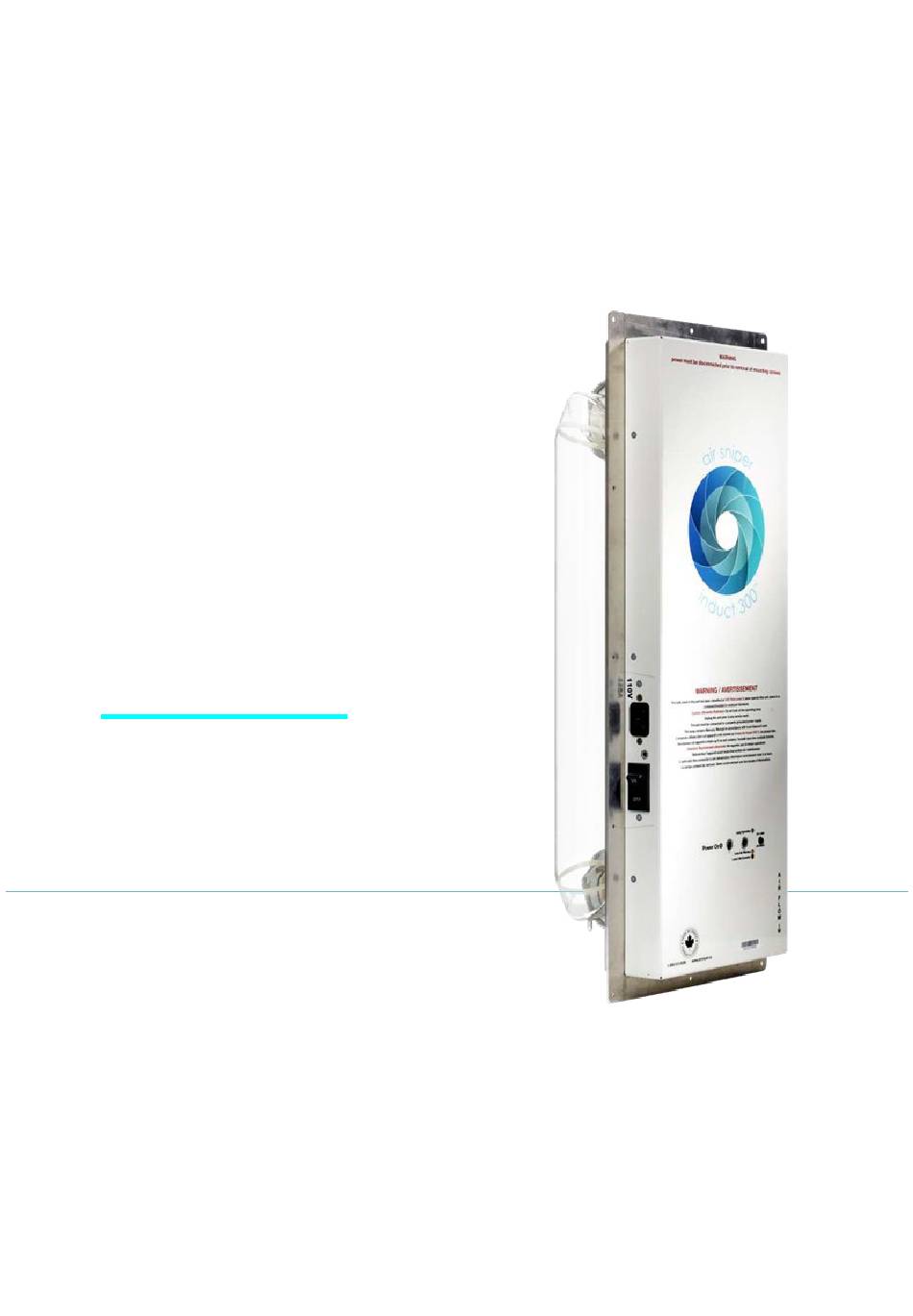

- Page 1 Air Sniper Induct 300W Standard Instruction Manual...
-
Page 2: A Word To Air Sniper Owners
An authorized Air Sniper dealer will know the system best, and if service or maintenance is needed, the Air Sniper team is here to help. Our team is dedicated to providing you with the best possible service and assuring your satisfaction with our product. -
Page 3: Important Safety Instructions
For inquiries regarding the Unit, or any other Air Sniper Products Contact: Air Sniper Head Office Bay 11, 6565 40th Street SE, Calgary, AB Canada T2C 2J9 1-888-338-9549 www.airsniper.ca... -
Page 4: Table Of Contents
TABLE OF CONTENTS A WORD TO AIR SNIPER OWNERS IMPORTANT SAFETY INSTRUCTIONS TABLE OF CONTENTS ABOUT YOUR UNIT DESIGN FEATURES INCLUDED PARTS INSTALLING YOUR UNIT REQUIRED TOOLS INSTALLATION DIRECTIONS FOR USE BULB STATUS TROUBLESHOOTING REPLACING YOUR UNIT REQUIRED TOOLS REPLACEMENT... -
Page 5: About Your Unit
DESIGN The Induct 300W is made up of several key components listed below. The Induct 300W Standard unit is designed to be installed in either the Return or Supply plenum of HVAC equipment, allowing for continuous sanitization of airflow up to 1500 CFM. -
Page 6: Features
FEATURES 300 Watt UV-C Induction Bulb Power Status Indicator Light Bulb Life Indicator Standard On/Off switch Airflow Differential Pressure Switch/Sensor SPECIFICATIONS Power Supply 110 V 50/60 Hz Energy Consumption 3.2 A @ 110 V Operating Temperature Range -25°C / 100°C Power control Systems On/Off Switch, Airflow Differential Pressure Switch/Sensor Bulb Life... -
Page 7: Included Parts
INCLUDED PARTS Included in the package you will find: 1. Air Sniper 300W Unit 2. Power Cable 3. 4 x Magnetic lined Reflective Panels (22 ¾” x 8” each) -
Page 8: Installing Your Unit
INSTALLING YOUR UNIT REQUIRED TOOLS Drill bit to initiate cut-out puncture Sheet metal tin snips or appropriate cutting equipment 12 #8 Tek screws Drill for Tek screws INSTALLATION CAUTION: Use care when unboxing and handling your unit. Ensure adequate space is available for unboxing, installation, and operation prior to attempting to handle your unit. - Page 9 Return air installation can assist with coil cleaning. For more information on best locations for your unit, consult the installation parameters in this manual or contact Air Sniper. b. Once an installation location has been determined, take note of the direction of airflow within the duct for installation, be sure to mount the unit accordingly (airflow direction is marked at the bottom right of the unit).
- Page 10 3. Cutting into duct a. Drill a hole large enough on one of the corners of the outline as a starting point to cut out the opening in the duct for the unit to be installed. Ensure that the drill hole is made within the perimeter traced in step 2d as to not leave a gap once the unit is installed.
- Page 11 4. Placing reflective panels a. Remove blue protective plastic on the provided magnetic reflective panels a. Carefully place the unit through the cut-out of the duct work. b. Using your drill and the 12 #8 Tek screws and the pre-drilled mounting holes around the unit, secure the unit into the duct work where you cut into.
-
Page 12: Directions For Use
DIRECTIONS FOR USE To Operate your Induct 300 unit, 1. Connect the Power Cable to the unit... - Page 13 3. Turn the unit on using the On/Off switch located on the right side of the white front panel. 6. Once an airflow is detected, the UV Lamp will illuminate, and the “Lamp Operating” LED will turn on.
-
Page 14: Bulb Status
When the yellow “Lamp Life Warning” colour is shown, please contact your local distributor or Air Sniper directly for a replacement. The Induct 300W is designed as a complete unit, therefore when the bulb expires, the entire unit must be replaced. -
Page 15: Replacing Your Unit
REPLACING YOUR UNIT The Air Sniper Induct 300W Unit uses a built in 300W UV-C Lamp with a lifetime of 5 years (43,000 hours, based on 24/7 operation). To track the life of the Lamp on your unit, check the “Lamp Operating” LED Colour when the unit is activated to determine the state of your unit. - Page 16 “Warranty”) for a period of three (3) years (the “Warranty Period”) from the date of purchase through an AIR-authorized dealer/distributor. During the Warranty Period, should an Air Sniper™ be determined to be defective, AIR shall repair or replace the defective Air Sniper™ unit(s) (at AIR or dealer’s option) within a reasonable period.
-
Page 17: Return Policy
RETURN POLICY In the event you are not completely satisfied with your Air Sniper product within 30 days from the proof of purchase date AIR will provide a full refund for the purchase price of the equipment. The unit must be returned to AIR in the original packaging and display no visible wear or damage.
