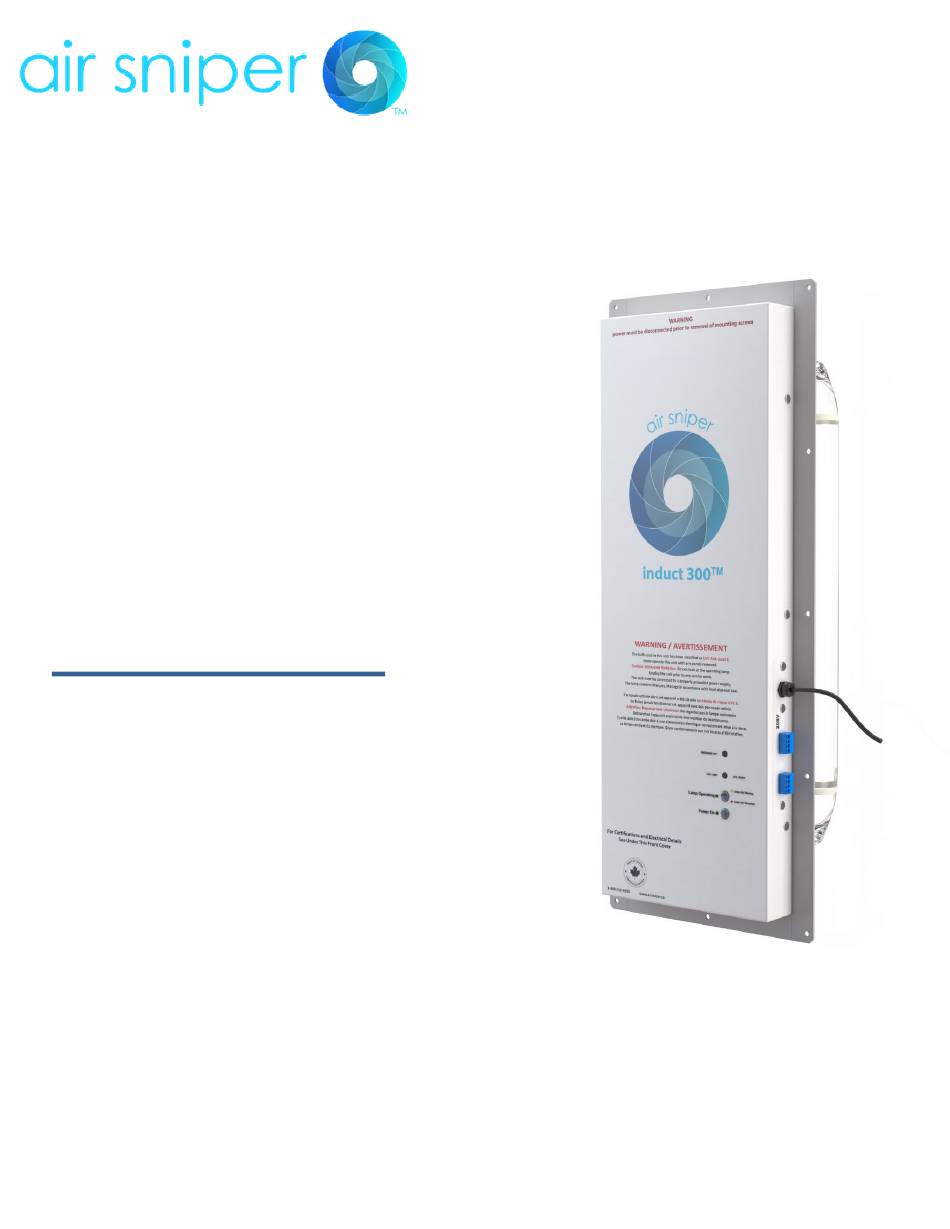

- Page 1 Air Sniper Induct 300W BAS compatible Instruction Manual...
- Page 2 © AIR ALPINE INNOVATIVE RESEARCH INC. All rights reserved. This document is subject to change without notice. All Air Sniper trademarks and logos are owned by Air Sniper or one of its affiliates. Unless expressly noted, names and brands of third parties that may be used in this document are not used to indicate an affiliation or endorsement between the owners of these names and brands and AIR ALPINE INNOVATIVE RESEARCH INC.
-
Page 3: Important Safety Instructions
Untrained personnel can perform installation and replacement of the unit as per the instructions within this manual. Do not Air Sniper products are not waterproof. Do not attempt to perform any maintenance on your attempt to use your unit in a wet environment. - Page 4 Air Sniper Induct 300W BAS compatible FEATURES No Ozone (UL 2998 Certified, CARB certified) 6+ Year Lamp Life (55, 200 Hours) BAS Compatible 300 Watt Bulb 5-Year Warranty SPECIFICATIONS 208-240 VAC, Single Phase, 60 Hz Available Power Requirements: Energy Consumption: 1.8 Amp Max (420 Watt) @208 VAC...
- Page 5 Air Sniper Induct 300W BAS compatible FEATURES No Ozone (UL 2998 Certified, CARB certified) 6+ Year Lamp Life (55, 200 Hours) BAS Compatible 300 Watt Bulb 5-Year Warranty SPECIFICATIONS 110V VAC, Single Phase, 60 Hz Available Power Requirements: Energy Consumption: 3.5 Amp Max (420 Watt) @110V VAC...
- Page 6 DETAIL DRAWINGS EPA Facility Registration Number 100516-CAN-1 |Induct 300 UPCS 628678453111 Tel: 1-866-466-2592 | Email: info@airsniper.ca | Web: www.airsniper.ca...
-
Page 7: About Your Unit
ABOUT YOUR UNIT For more information on the Induct BAS compatible unit and all other Air Sniper products and services, call (Toll Free) 1-888-338-9549, visit www.airsniper.ca or email Air Sniper at info@airsniper.ca with any questions, comments or concerns. DESIGN The Induct BAS compatible unit is made up of several key components listed below. - Page 8 FEATURES • 300 Watt UV-C Induction Lamp 6+ Year Lamp Life (55,200 Hours) • BAS Compatible • • UL 2998 Certified No maintenance • • Canadian Made SPECIFICATIONS Power Supply (depending on Model purchased) Single Phase, 110V A/C 50/60 Hz Electrical Safety Certification Single Phase, 208V –...
- Page 9 RECOMMENDED LINE CONDITIONER SPECIFICATIONS Line conditioner required to prevent damage. To prevent damage and ensure warranty coverage please ensure line conditioners are on all AC inputs to protect equipment from voltage spikes. If a line conditioner is not installed your Warranty may not be valid. Please see below for recommended line conditioner specifications.
- Page 10 Tel: 1-866-466-2592 Email: info@airsniper.ca Web: www.airsniper.ca EPA Facility Registration Number 100516-CAN-1...
-
Page 11: Included Parts
INCLUDED PARTS Included in the package you will find: Induct BAS compatible Power Connection Cord 4 x optional Magnetic Lined Reflective Panels (22 ¾” x 8” each) (12) - #8 Tek Screws Tel: 1-866-466-2592 Email: info@airsniper.ca Web: www.airsniper.ca EPA Facility Registration Number 100516-CAN-1... -
Page 12: Installing Your Unit
Inspect the unit and all components, make note of any damage or defects that may have occurred during shipment. If after opening your unit you notice any missing or damaged components, please contact your Air Sniper representative for immediate assistance. (Toll Free) 1.888.338.9549 www.airsniper.ca... - Page 13 Return air installation can assist with coil cleaning. For more information on best locations for your unit, consult the installation parameters in this manual or contact Air Sniper. d. Once an installation location has been determined, take note of the direction of airflow within the duct, In order to maximize effectiveness, make sure to mount the unit accordingly.
- Page 14 4.Cutting into the duct a. Drill a hole on one of the corners of your traced outline using it as a starting point to cut out the opening in the duct for the unit to be installed. Ensure that the drill hole is made within the perimeter traced as to not leave a gap once the unit is installed.
- Page 15 3. Placing Optional reflective panels If using panels,remove blue protective plastic film from the provided magnetic reflective panel. Carefully place the unit through the cut-out in the duct work Using your drill, the (12) #8 Tek screws and the pre-drilled mounting holes, secure the unit into the pre-cut duct work Due to the thickness of ducts or imperfections foil HVAC tape may be required to prevent light leakage on the cut lines.
-
Page 16: Directions For Use
It is important to maintain that each wire is routed to the correct location in each port. For more information regarding BAS wiring, or any other BAS features please call 1-888-338-9549 to speak to one of our representatives, or email Air Sniper at info@airsniper.ca with any questions that you may have. - Page 18 If all the connections are correct and the outlet is tested to verify the unit is receiving power but the “Power On” LED still isn’t illuminated, turn your unit off and contact an Air Sniper representative. Tel: 1-866-466-2592 Email: info@airsniper.ca Web: www.airsniper.ca...
- Page 19 When the “Lamp Operating” LED color is yellow indicating “Lamp Life Warning” please contact your local distributor or an Air Sniper representative directly for a replacement. The Induct BAS compatible unit is designed as a complete unit, therefore when the lamp expires, the entire unit must be replaced.
-
Page 20: Troubleshooting
If the “Lamp Operating” LED is not able to illuminate at any airflow and troubleshooting didn’t solve the issue. Please contact your Air Sniper representative at 1.888.338.9549 or email us at info@airsniper.ca Tel: 1-866-466-2592 Email: info@airsniper.ca Web: www.airsniper.ca... - Page 21 6. Once connected and powered on, the “Lamp Operating” LED will be illuminated. 7. Once the new unit is installed, carefully package the old unit with all included equipment to ship to your local distributor or directly to Air Sniper for store credit. Tel: 1-866-466-2592 Email: info@airsniper.ca Web: www.airsniper.ca...
-
Page 22: Warranty
Air Sniper™ unit(s) (at AIR or dealer’s option) within a reasonable period. Remedy Procedures If the Air Sniper™ unit proves defective within the Warranty Period, the purchaser may choose one of the following remedies, after contacting AIR for a Return Authorization Number: 1.
