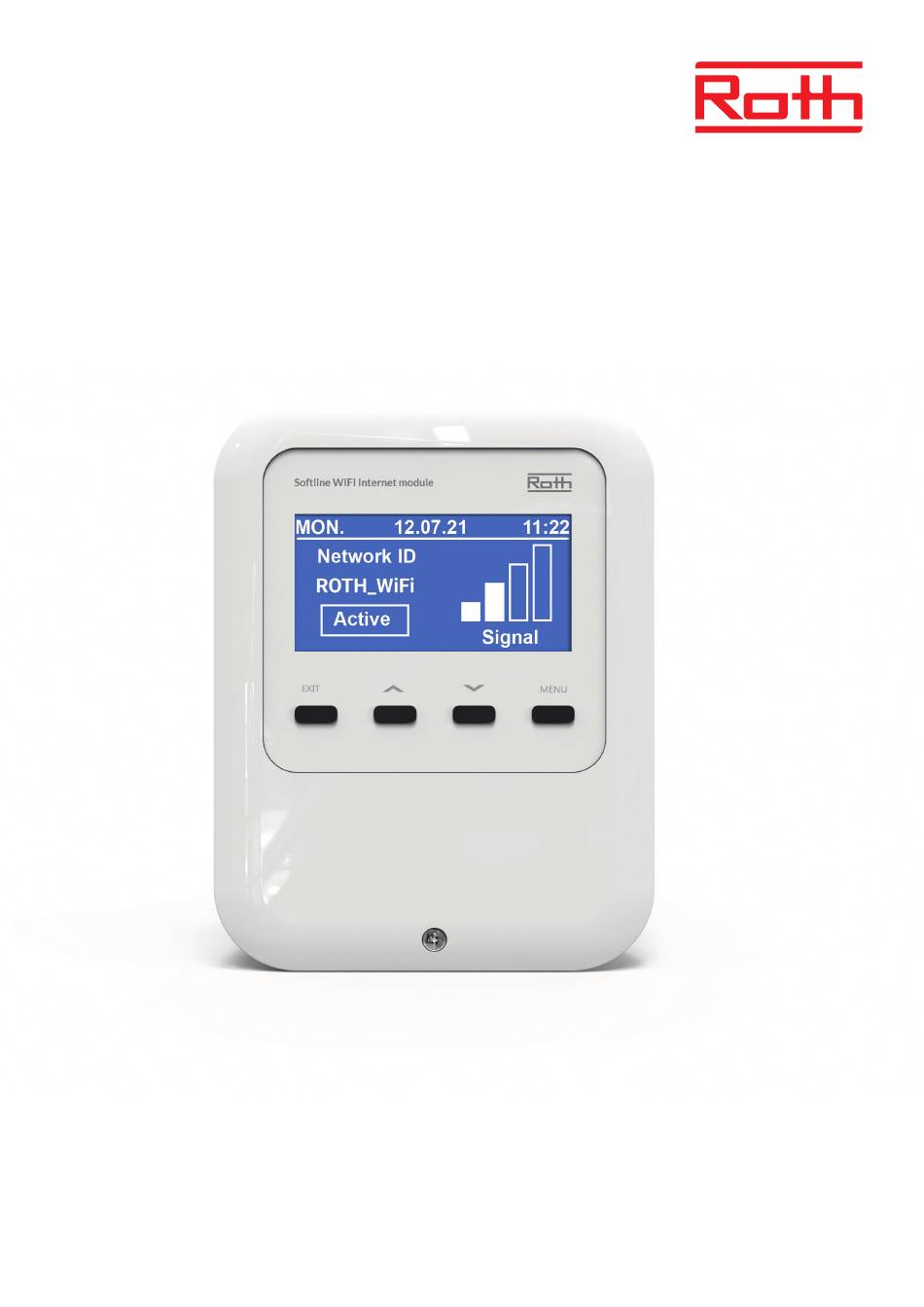

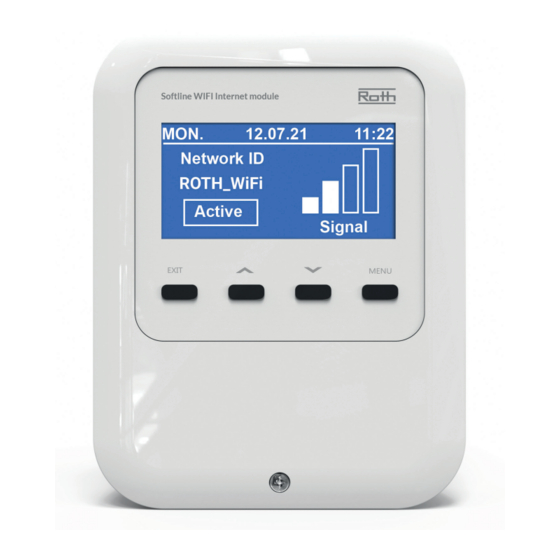

- Page 1 Roth Softline WiFi Internet module Advanced wireless internet connection for Softline Controller - Master...
-
Page 2: Table Of Contents
TABLE OF CONTENT I. Safety ..............................3 II. First start-up ............................4 III. Screen description ..........................7 IV. WiFi module functions ........................7 1. Network WiFi selection ........................ 7 2. Network configuration .........................8 3. Registration ..........................8 4. Reset module password .......................9 5. -
Page 3: Safety
I. SAFETY Roth Softline WiFi Internet module must always be installed by a qualified person. The WiFi Internet module must always be mounted on a wall or in a cabinet in a secure way. WARNING Risk of fatal electric shock from touching live connections. Before working on the controller switch off the power supply and prevent it from being accidentally switched on. -
Page 4: First Start-Up
Follow these steps while starting the device for the first time to ensure its failure-free operation: Step 1. Connect Roth Softline WiFi Internet module with the included RS cable and power supply. In order to connect the cables, remove the module cover (screw in the bottom on the front) and connect the cables as indicated on connector labels and diagrams below: Diagram for wiring and communication with Softline controller –... - Page 5 MENU. Press MENU to “CONFIRM” or choose “CANCEL” with ▲ – press MENU. Step 4. Configure the settings for the internet connection. To enable the Roth WiFi Internet module to connect to the internet, it needs to be registered to the local WIFI router. Registration to local router: Press MENU to enter, select “Network Wi-Fi selection”...
- Page 6 Step 5. Connecting Master controller to the app Please see the specific instruction delivered together with the Master Controller for more details. Can also be found on our website. The user navigates in the menu structure using the buttons located below the display. To wake up the display from sleep mode just press one of the buttons.
-
Page 7: Screen Description
1. NETWORK WIFI SELECTION To enable the Roth WiFi Internet module to connect to the internet, it needs to be registered to the local router. Registration of WiFi internet module to local router: Diagram – Network configuration menu Press MENU to enter, select “Network Wi-Fi selection”... -
Page 8: Network Configuration
Network Network Reset Registra- Time Screen Language Service Factory Software WiFi configura- module tion settings settings version menu settings version selection tion password 2. NETWORK CONFIGURATION Diagram – Network configuration menu Diagram – Network configuration menu Block diagram – main menu Menu Network configura-... -
Page 9: Reset Module Password
This submenu enables the user to configure the connection between the Softline Controller – Master, the Softline WiFi Internet module and between the WiFi Internet modules. Selecting the “Registration” with MENU. The module will now ask for a confirmation of the registration. By confirming “Yes” with MENU, the module and the controller will prepare a pairing code. -
Page 10: Screen Settings
Clock Date Automatic settings settings Diagram – screen settings 6. SCREEN SETTINGS Diagram – screen settings Menu Screen Settings Display Screen Extinguishing Screen view Screen fade contrast brightness time Screen view It is only possible to view WiFi menu on the screen. Display contrast Contrast on the display - +/-10 Screen brightness... -
Page 11: Service Menu
Language version Diagram – service menu 8. SERVICE MENU Diagram – service menu Service menu Diagram – service menu Display Factory contrast settings Service menu should only be used by a highly qualified person and only when it is necessary to adjust advanced settings that can have a big influence on the functionality and performance of the system. -
Page 12: App Configuration
VI. App configuration If you want to be able to control your Roth Softline heating system using the Roth Softline app, you need to create an account on the Roth Softline app. The app can be downloaded” in the App Store or in Google Play.
