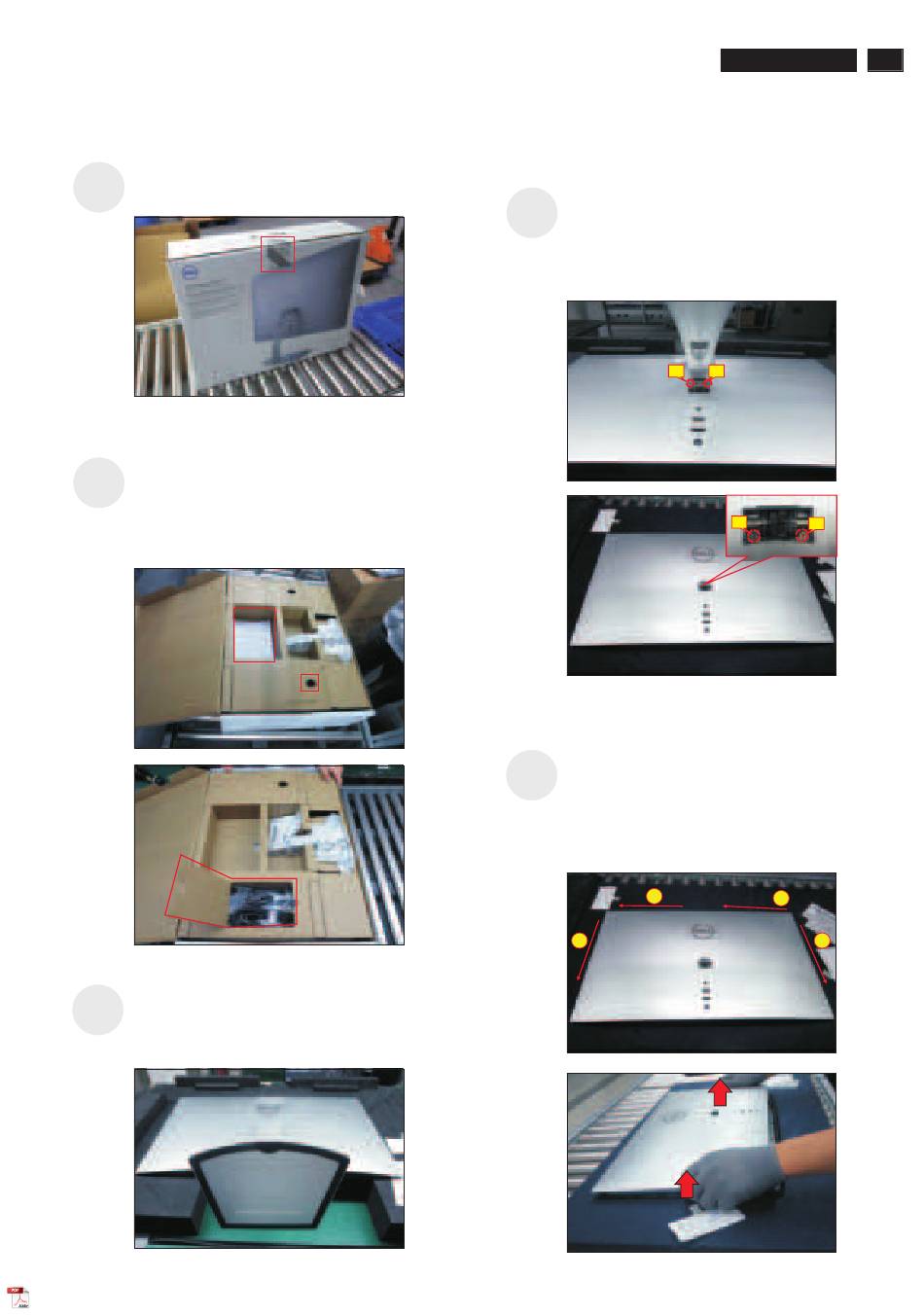

1. Disassembly Procedures:
Open the pizza carton with a proper tool, then put
S1
down the pizza carton, and open the carton.
Take out the QSG from the catron, and then take out
the Paper-Top with other accessories including
user's manual, HDMI cable, power cable, power
S2
adapter and other packing materials from the carton.
(Note: It depends on whether users returning the
accessories)
QSG
Take out the whole packed monitor and then remove
the EPE bags which packed monitor and stand
S3
base, and then put the monitor face down on the
table with protective cushion.
Lift up the stand , then use a Philips-head screwdriver
to remove 2pcs screws for unlocking the whole unit
including stand and base, then remove the stand and
S4
base. Use a Philips-head screwdriver to remove 2pcs
screws for release the hinge cover.
(No.1~2 screw size=M3x11, Torque=7.5
No.3~4 screw size=M2x0.4x3.2, Torque=2
2
Use a proper tool insert the gap of the rear cover top
side (marked 1) as the following picture to release the
rear cover, then wedge your fingers between the rear
cover and the panel to release the rear cover, then use
S5
one hand to press the panel module, the other hand to
pull up carefully the rear cover in order of arrow
preference 1~3 for unlocking mechanisms of rear
cover, and then remove the rear cover carefully.
2
3
1
DELL S2719DM
0.5kgfxcm;
±
kgfxcm)
~3
1
3
4
1
3
