Dell S2719DGF Disassembly Procedure

Dell S2719DGF Disassembly Procedure

Hide thumbs Also See for S2719DGF:

Advertisement

Quick Links

S2719DGF
1
1. Disassembly Procedures:
Step
S1.Before
disassemble

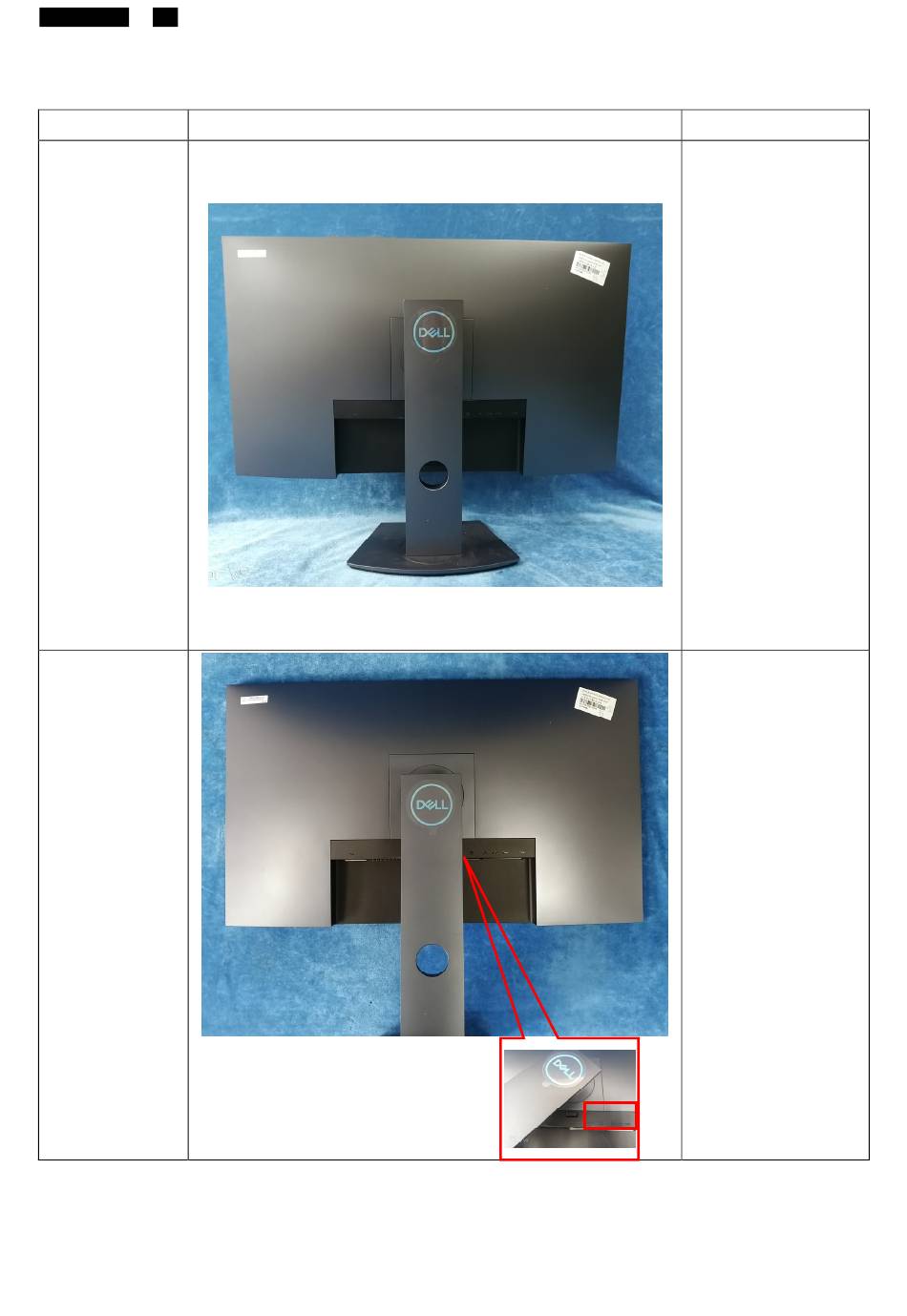

S2. Remove the
STAND-BASE
ASS'Y
Figure
1
Remark
Turn off power,
Unplug external

cables from product
Press the button on the
red then pull out the
stand upward, stand
will be remove.
Note:
To prevent scratches
on the LCD screen
while removing the
stand, ensure that the
monitor is placed on a
soft, clean surface.
Push

Advertisement

loading

Summary of Contents for Dell S2719DGF

  • Page 1 S2719DGF 1. Disassembly Procedures: Step Figure Remark Turn off power,   S1.Before Unplug external    disassemble cables from product Press the button on the red then pull out the stand upward, stand will be remove. S2. Remove the Note: To prevent scratches STAND-BASE ASS’Y on the LCD screen...
  • Page 2: Rear Cover

    S2719DGF Use a Philips-head screwdriver to remove 4 screws for unlocking S3.Remove the mechanisms. REAR COVER. (No.1~4 screw size=M4x10; Torque=12±2kgf.cm) S4.Remove the Disconnect the pins Cables and and the tapes. Tapes...
  • Page 3 S2719DGF Use a Philips-head screwdriver to remove 9 screws for remove S5.Remove the the middle frame Middle_Frame (No.1~9 screw size=M3x4; Torque=3±0.5kgf.cm) S6.The Panel Use a Philips-head screwdriver to remove 4 screws for remove S6.Remove the the hook Hook (No.1~4 screw size=M2x3.5;...
  • Page 4 S2719DGF S7.Remove the mylar Use a Philips-head screwdriver to remove 7 screws for remove main board and Power S8.Remove the board (No.1~7 screw Main Board and Power Board size=D3x6; Torque=6±1kgf.cm No.7 screw size=M4x6; Torque=6±1kgf.cm) S9.Disconnect the pins...
  • Page 5 S2719DGF S10.The Mainframe Mainframe Use a Philips-head screwdriver to remove 1 screw for remove USB board S11.Remove the (No.1 screw USB board size=M3x6; Torque=4±1kgf.cm) Disconnect the pins...
  • Page 6 S2719DGF Use a Philips-head screwdriver to remove 2 screws for remove S12.Remove the the latch Latch (No.1~2 screw size=M3x6; Torque=6±1kgf.cm) S13.The Rear Cover S14.The Middleframe and the Key Board...
  • Page 7 S2719DGF Remove electrolyte capacitors (red mark) from printed circuit boards Take out bulk cap. pin S8.Remove solder with soldering capacitors iron and absorber Lift the bulk cap. up and away from the...
  • Page 8: Tools Required

    S2719DGF 2. Product material information The following substances, preparations, or components should be disposed of or recovered separately from other WEEE in compliance with Article 4 of EU Council Directive 75/442/EEC. Capacitors / condensers (containing No used PCB/PCT) Mercury containing components...
