- Page 1 LCD Drawer User Manual MODEL: AMil-W1730e-AC / AMil-W1730b-AC 17.3" Multi Input LCD Console - 1 - i-Tech Company LLC Modified: 09-16-21 TOLL FREE: (888) 483-2418 • EMAIL: info@itechlcd.com • WEB: www.iTechLCD.com...
- Page 2 1 * 1.8 Meter USB A Type cable Please check items above. If any item is mi ssing or damaged, please contact your dealer promptly. - 2 - i-Tech Company LLC Modified: 09-16-21 TOLL FREE: (888) 483-2418 • EMAIL: info@itechlcd.com • WEB: www.iTechLCD.com...
-
Page 3: Table Of Contents
2.2 Standard Installation……………….………………………………….…… -9- 2.3 LCD KVM Console and KVM Cascade Installation…………… …….…. -10- 2.4 LCD OSD Menu Setup………………………………………………..….… -11- Certificates………………………………………………………………..….….… -12- - 3 - i-Tech Company LLC Modified: 09-16-21 TOLL FREE: (888) 483-2418 • EMAIL: info@itechlcd.com • WEB: www.iTechLCD.com... -
Page 4: Introduction

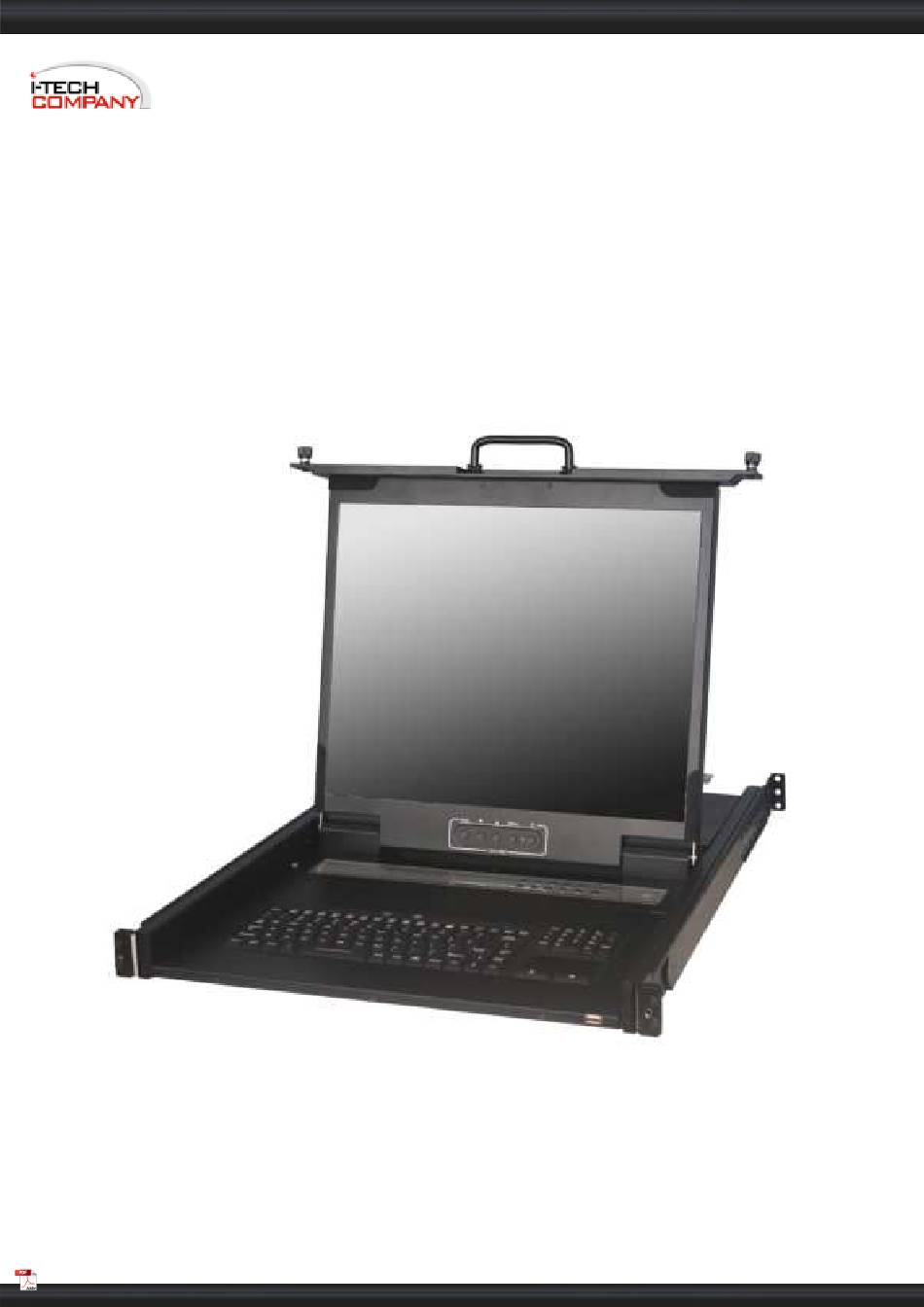

1 Introduction 1.1 Overview The 17.3" LCD KVM integrates keyboard, LCD display and touch pad in a drawer type worktable and provides a convenient space-saving operation mode for KVM switch technology. The cover is an LCD display, while the base is keyboard and touchpad. KVM console is a control device integrating 17.3"... -
Page 5: Product Specifications
100-240V AC 50/60Hz via IEC Type power cord Housing Metal housing Weight 14Kg 482 x 42 x 660 (mm) Dimension(W x H x D) - 5 - i-Tech Company LLC Modified: 09-16-21 TOLL FREE: (888) 483-2418 • EMAIL: info@itechlcd.com • WEB: www.iTechLCD.com... -
Page 6: Front View
Mounting bracket Install into rack cabinet Lock button Auto lock / release when lcd pull up and down USB2.0 HUB port - 6 - i-Tech Company LLC Modified: 09-16-21 TOLL FREE: (888) 483-2418 • EMAIL: info@itechlcd.com • WEB: www.iTechLCD.com... -
Page 7: Rear View
VGA port USB port Connect to server or KVM. DVI port Connect to server or KVM. For USB peripheral device USB 2.0 - 7 - i-Tech Company LLC Modified: 09-16-21 TOLL FREE: (888) 483-2418 • EMAIL: info@itechlcd.com • WEB: www.iTechLCD.com... -
Page 8: Installation
2 Installation 2.1 Rack Installation Step 1 Loosen screw A on both sides to slide out and remove the two rear slide rails. Rear Slide Rails Step 2 Attach the two rear slide rails to the rear vertical mounting rails of the rack cabinet using standard M6 cage nuts and screws. -
Page 9: Standard Installation
* Please Pay Attention to Earthing of Equipment The standard installation is completed, and LCD KVM console can be powered on. Then power on connected hosts. - 9 - i-Tech Company LLC Modified: 09-16-21 TOLL FREE: (888) 483-2418 • EMAIL: info@itechlcd.com • WEB: www.iTechLCD.com... -
Page 10: Lcd Kvm Console And Kvm Cascade Installation
(4) Turn on the KVM and LCD console power first and then power on hosts to prevent loss of any keyboard or mouse. Cascade connection drawing: VGA USB - 10 - i-Tech Company LLC Modified: 09-16-21 TOLL FREE: (888) 483-2418 • EMAIL: info@itechlcd.com • WEB: www.iTechLCD.com... -
Page 11: Lcd Osd Menu Setup
Press this key to Decrease setting or scroll down the menu bar press to seletion video input Auto/Source OSD Control Operation Main Menu - 11 - i-Tech Company LLC Modified: 09-16-21 TOLL FREE: (888) 483-2418 • EMAIL: info@itechlcd.com • WEB: www.iTechLCD.com... -
Page 12: Certificates
(2) If the equipment is interrupted, it may cause unnecessary operations. This equipment complies with regulations of EN55022:CLASS B. RoHS The whole package including products, packaging materials and documents meet RoHS equipments. - 12 - i-Tech Company LLC Modified: 09-16-21 TOLL FREE: (888) 483-2418 • EMAIL: info@itechlcd.com • WEB: www.iTechLCD.com...
