Installation Guide - Innova GetGo SF02M3W:4+7 Owner's Manual

Note: For safety reasons, lifting of the adjustable bed frame must be performed by two (2) people; and the
SET UP & INSTALLATION
Step 2:
With two able-bodied people, place carton on floor and remove the lid on the box.
Step 3:
It is recommended to test the bed while still in the box before fully setting up.

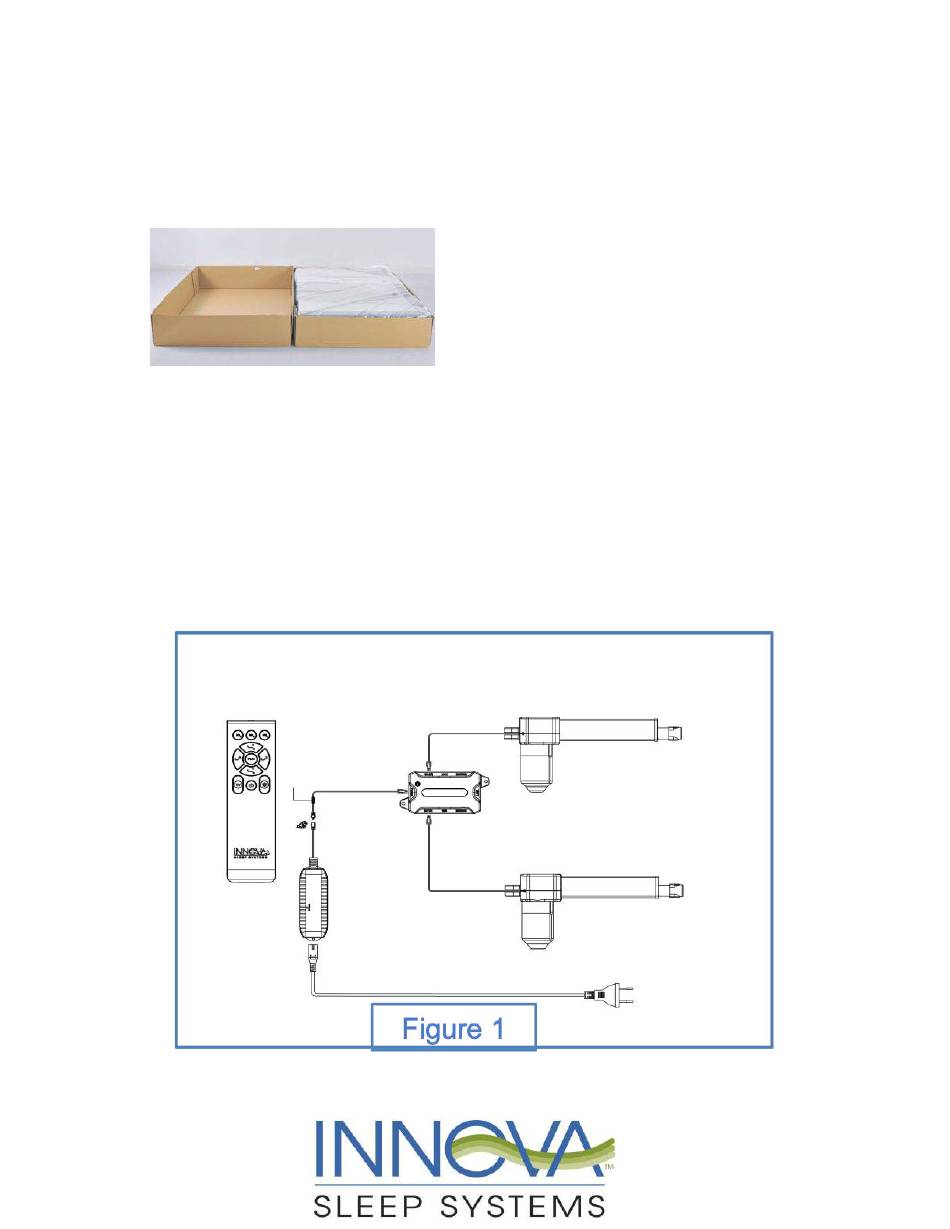

• Connect the Transformer "E" to Control Box "F". Extend the cord from Control
Box "F" and attach to the short electrical output cord on Transformer "E".
• Extend the Power Cord "D" and plug it into the Transformer "E". (See Figure 1)
STEP 1
Lift the folded bed frame unit out of the shipping carton
STEP 2
Lower the head and foot frame pieces with their top
side facing downward.
STEP 3
Using a pair of scissors (not included), cut the ties
to remove all accessory boxes and retainer bar from
inside the unit.
—04—
Installa
7
