Innova FLOAT FN04M5W Owner's Manual

Innova FLOAT FN04M5W Owner's Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
SLEEP SYSTEMS
OWNER'S MANUAL
FLOAT
Model FN04M5W

Advertisement

loading
Need help?

Need help?

Do you have a question about the FLOAT FN04M5W and is the answer not in the manual?

Questions and answers

Related Manuals for Innova FLOAT FN04M5W

Summary of Contents for Innova FLOAT FN04M5W

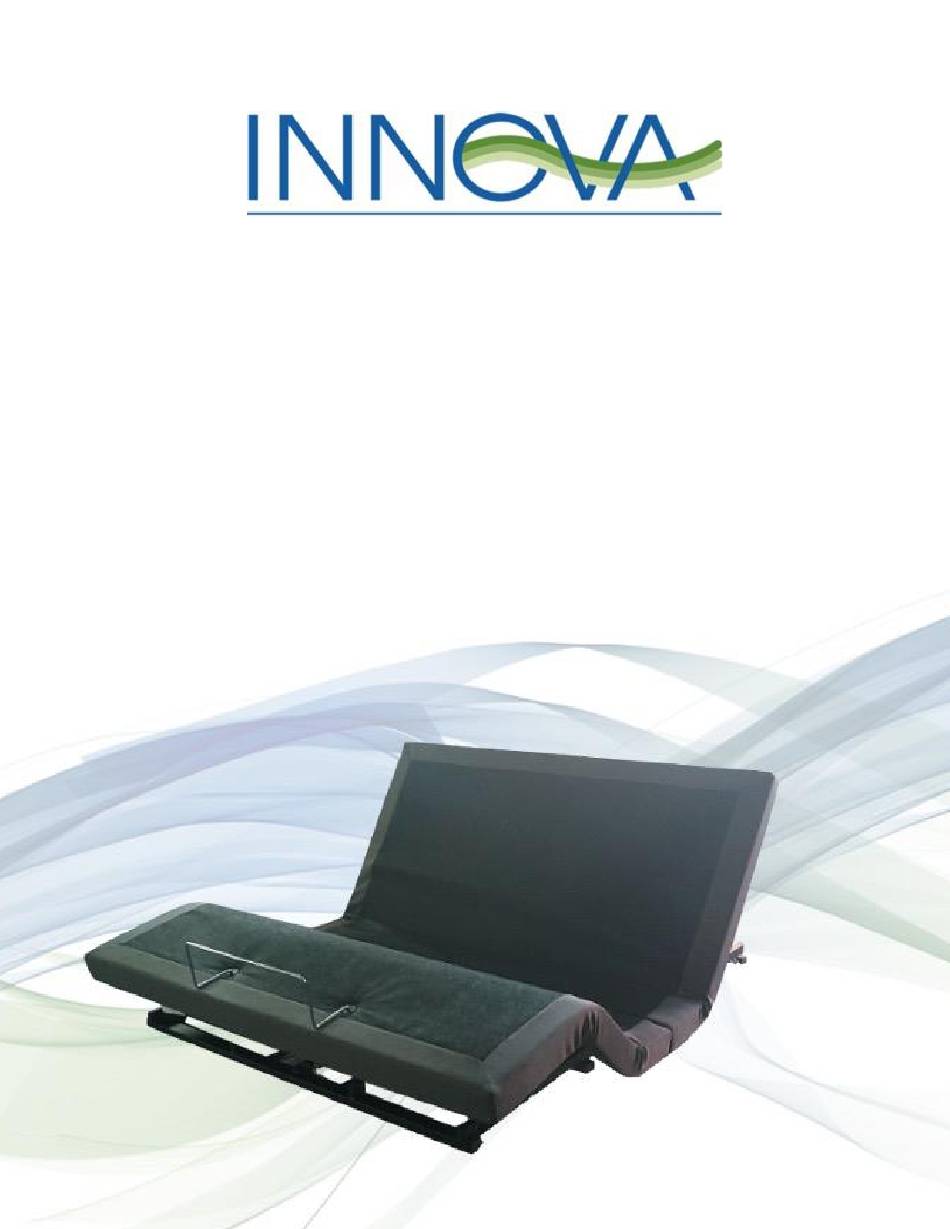

  • Page 1 SLEEP SYSTEMS OWNER’S MANUAL FLOAT Model FN04M5W...
  • Page 2 Table of Contents Precautions ..................Parts List ....................Installation Guide ................... Remote Control Instructions ..............Warranty Info……………………………………………………..…………..
  • Page 3 PRECAUTIONS WARNING Read the following information before using this product. Failure to adhere to these terms and precautions could compromise safety, cause product malfunction and/or void a portion of your warranty. Electrical power surges are a leading cause of problems with electrical circuits. In order to help protect your investment in case of a power surge or outage, use an electrical surge protection device (not included).
  • Page 4 PRODUCT RATINGS: The product’s lift motors are not designed for continuous use of more than 2 minutes in an 18 minute period, or approximately 10% duty cycle. For every 30 minutes of use for the massage motor, 30 minutes of rest is needed. The massage functions should be used for a total of 2 hrs in a 12 hr period.
  • Page 5 FCC COMPLIANCE: This device complies with part 15 of the FCC Rules for residential use. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
  • Page 6 PARTS LIST Step 1: Check and verify all parts are included before discarding any packing materials. All electronics and components that need to be installed are located in boxes under the base or attached to the frame. B) Mattress Retainer Bar (1) A) Wireless Remote C) Power Cord (1) Control (1)
  • Page 7 SET UP & INSTALLATION Step 2: With two able-bodied people, place carton on floor and remove the lid on the box. Lift the folded bed frame unit out of the shipping carton Step 3: It is recommended to test the bed while still in the box before fully setting up. •...
  • Page 8 Step 4: Insert 3 AAA batteries into the Wireless Remote. Step 5: Plug the Power Cord into a grounded electrical outlet. A surge protector is recommended. Using the Wireless Remote Control, push the HEAD UP button and then push the FOOT UP button to test the bed.
  • Page 9 Step 7: With the help of your able-bodied assistant, carefully lift the adjustable bed frame and set it in place upright on its legs. Excessive pressure and dragging the bed without lifting may damage the legs. Remove all protective plastic covering. Note: Check and make sure that all power cords are untangled and do not interfere with any adjustable bed mechanisms.
  • Page 10 Wireless Remote Control Instructions For toll-free customer service, call 1-877-386-1373 (US) or 1-833-486-8334 (Canada) or email us: service@innovasleep.com Please tell us your name, phone, address, Model Name and/or Model ID (found on the law label tags, which are stapled to the head of the base), purchase date, and your question or concern when you call or email.
  • Page 11 How to Program Memory Position Buttons: The remote has 4 memory buttons: "M1", "M2", "M3", and "M4". These positions have been tested but have not been preprogrammed, as each user will have his/her own individual preferences. In order to set each button, adjust the bed to the desired position. Press and hold the memory button and the set button for 3 seconds simultaneously.
  • Page 12 How to Set and Remove Child Safety Locks: The Child Safety Locks prevent the head and foot of the bed from moving from current position until they are turned off. When the Child Safety Locks are engaged, the Remote will not sync to the Control Box. To turn on Child Safety Locks: Press the SET and HEAD UP buttons simultaneously for 5-8 seconds (Figure 6).
  • Page 13 SYNCHRONIZING TWO BEDS The bed base is designed to allow two twin XL bases to become an Eastern King base and two Split-Cal-King bases to become a Cal-King base. You can use the same Remote to control two side-by-side beds bases by following Step 6 on the installation guide to synchronize one Remote with the two Control Boxes of the two units.
  • Page 14 OR REPLACEMENT AS DESCRIBED BELOW. WHO MAY USE THIS WARRANTY? Innova Sleep Products, Inc. (“Innova”) extends this limited warranty only to the consumer who is the original purchaser of a new Product (the “Purchaser”). It does not extend to any subsequent owner or other transferee of the Product. Floor model Products and Products sold expressly “as is”...
  • Page 15 With respect to any defective Product or part thereof (as listed above) during the first year of the Warranty Period, Innova will, in its sole discretion, either: (i) repair such Product (or the defective part) free of charge to the Purchaser, or (ii) replace the Product (or the defective part) with new or refurbished Product(s) or part(s) free of charge to the Purchaser.
  • Page 16 Product in order to perform service on the Product. It is the sole responsibility of the Purchaser to provide adequate space and accessibility to the Product. In the event that Innova is unable to perform service due to lack of accessibility, Finding Law Label the service call will be billed to the Purchaser and the service will have to be rescheduled.
  • Page 17 INCLUDING WITHOUT LIMITATION, WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE AND WARRANTIES AGAINST HIDDEN OR LATENT DEFECTS. IN SO FAR AS SUCH WARRANTIES CANNOT BE DISCLAIMED, INNOVA LIMITS THE DURATION AND REMEDIES OF ALL IMPLIED WARRANTIES, INCLUDING WITHOUT LIMITATION, THE WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE TO THE DURATION OF THIS WRITTEN WARRANTY.
  • Page 18 TROUBLESHOOTING Remote doesn’t light up or bed works intermittently a. Change the batteries with 3 AAA lithium batteries of any brand. b. If your base does not work after changing the batteries, check to see if there is a green light on the Transformer, which is the black box on the floor that is attached to the Power Cord that plugs in to the surge protector or wall.
  • Page 19 WHEN TWO BEDS DO NOT ALIGN: On the higher angled bed of the two, use a 19mm wrench to turn the nuts on the Level Right mechanism counterclockwise to adjust the angle until the higher angle bed matches the level of the lower angle bed and lock the nut with the reinforcement nuts.
  • Page 20 For toll-free customer service, call 1-877-386-1373 (US) or 1-833-486-8334 (Canada) or email service@innovasleep.com Please tell us your name, phone, address, Model Number/ID (found on the law label tags, which are stapled to the head of the base), purchase date, and the question or concern when you call or email.
