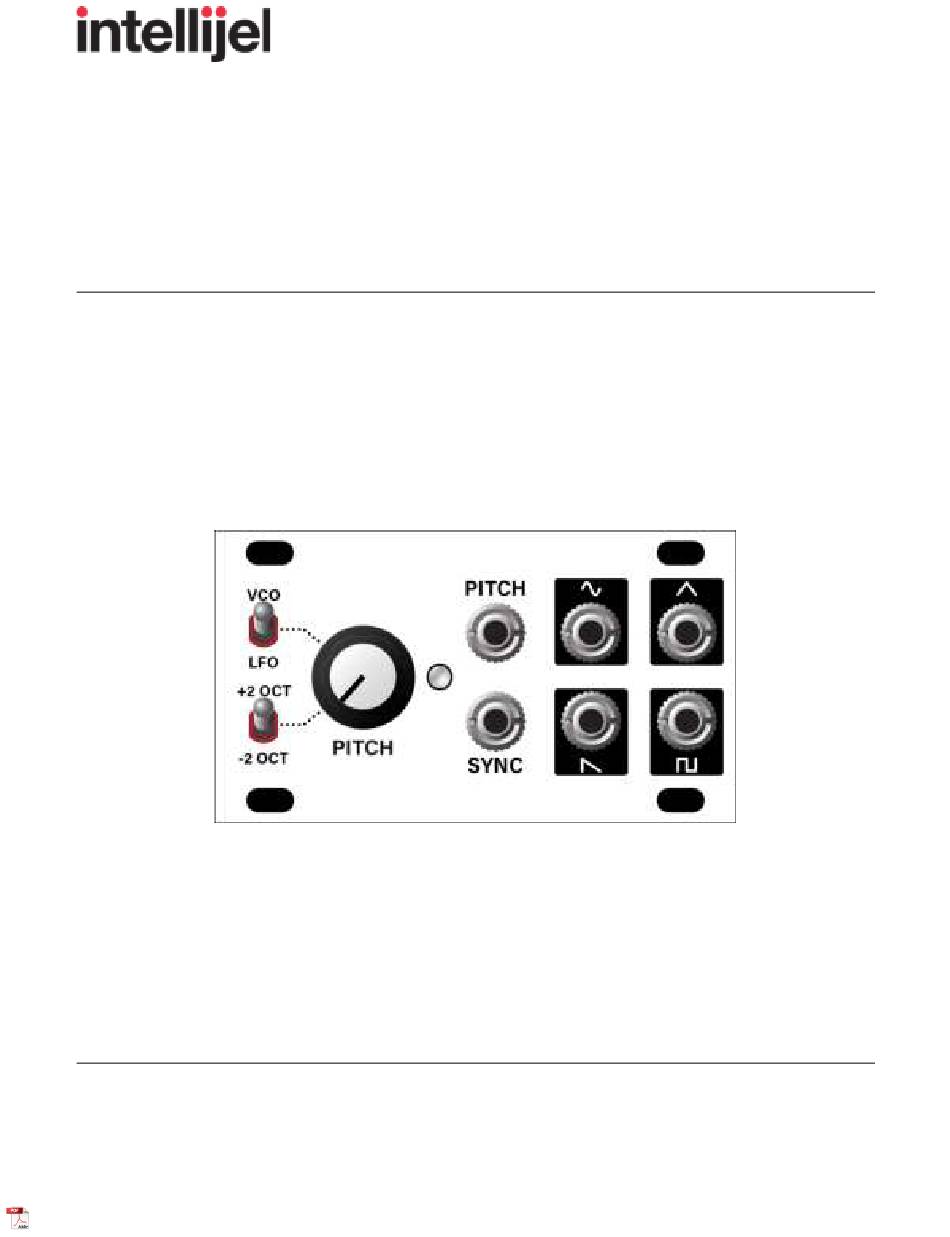

- Page 1 VCO 1U Syncable, Multi-Waveform Analog Oscillator & LFO Manual (English) Revision: 2021.07.18...
-
Page 2: Table Of Contents
TABLE OF CONTENTS COMPLIANCE INSTALLATION Before You Start Installing Your Module FRONT PANEL TECHNICAL SPECIFICATIONS VCO 1U Manual... -
Page 3: Compliance
(2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by Intellijel Designs, Inc. could void the user’s authority to operate the equipment. Any digital equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. -
Page 4: Installation
Before You Start Intellijel Eurorack modules are designed to be used with a Eurorack-compatible case and power supply. We recommend you use Intellijel cases and power supplies. Before installing a new module in your case, you must ensure your power supply has a free power header and sufficient available capacity to power the module: ●... -
Page 5: Installing Your Module
Eurorack case. Ensure the red stripe on the cable lines up with the -12V pins on the bus board. On Intellijel power supplies the pins are labelled with the label “-12V” and a thick white stripe. - Page 6 You should immediately check that all your modules have powered on and are functioning correctly. If you notice any anomalies, turn your system off right away and check your cabling again for mistakes. VCO 1U Manual...
-
Page 7: Front Panel
OFFSET trimmer to do this — but you’ll want to keep your trim tool away from the SCALE trimmer. Proceed at your own risk. OCTAVE switch : This three-position switch raises (in the top position) or lowers (in the bottom position) the oscillator’s pitch (or LFO rate) by two octaves. VCO 1U Manual... - Page 8 SAWTOOTH OUT : Sawtooth wave output. This waveform has both even and odd harmonics, which makes this the brightest and buzziest sounding output. Sawtooth waves are ideal for use in subtractive synthesis, where they’re run through a filter which removes (and helps shape) the harmonic content. VCO 1U Manual...
-
Page 9: Technical Specifications
TECHNICAL SPECIFICATIONS Width 14 hp Maximum Depth 37.5 mm Current Draw 19 mA @ +12V 16 mA @ -12V VCO 1U Manual...
