Buff Mult Manual
Buff Mult

Dual 1 x 3 Buffered Mult


Manual Revision: 2018.03.26



Advertisement

loading

Related Manuals for Intellijel Buff Mult

Summary of Contents for Intellijel Buff Mult

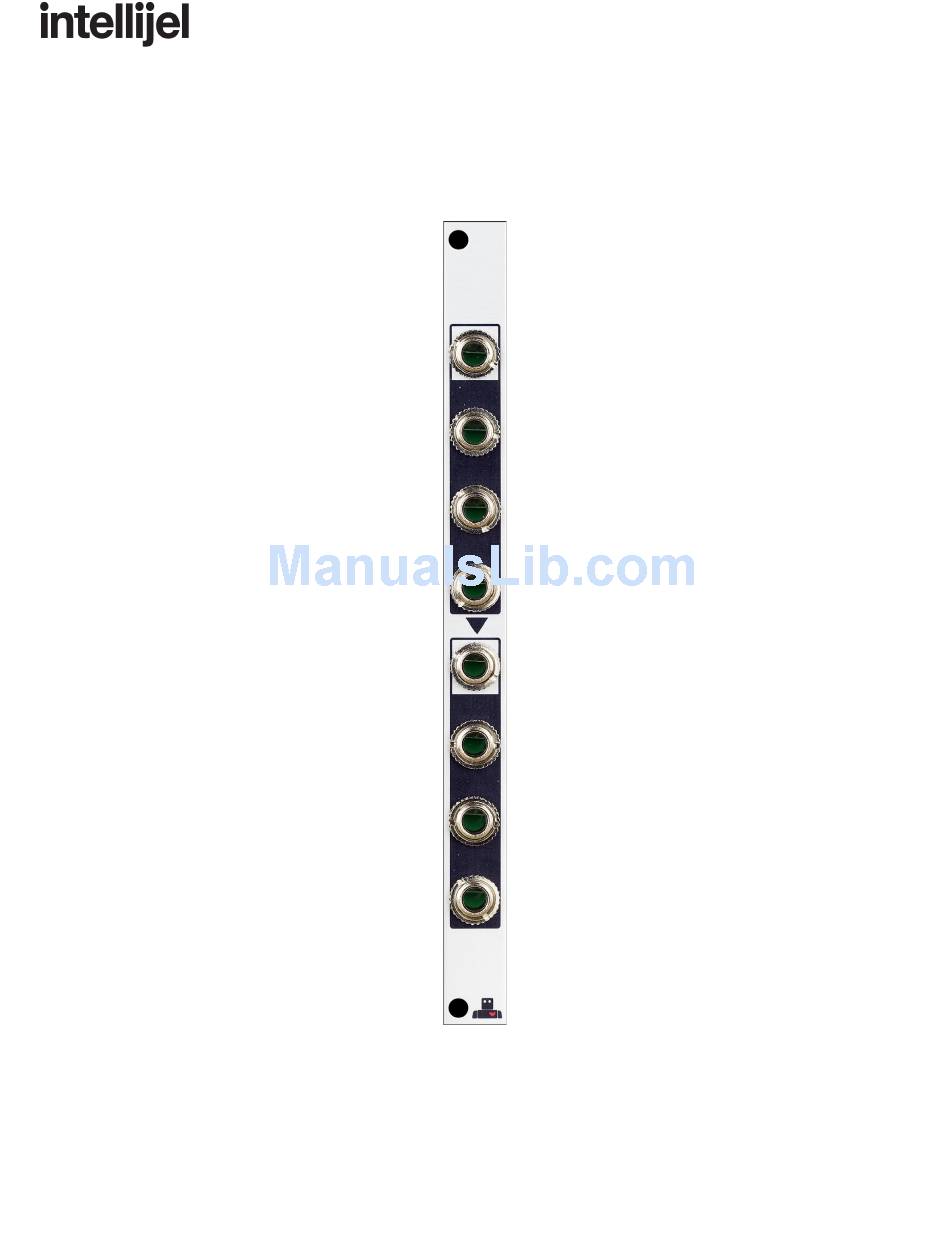

  • Page 1         Buff Mult Manual  Buff Mult   Dual 1 x 3 Buffered Mult      Manual Revision: 2018.03.26     ...

  • Page 2: Installation

          Installation  Intellijel Eurorack modules are designed to be used with a Eurorack-compatible case and power  supply.  Before Your Start  Before installing a new module in your case you must ensure your case’s power supply has  sufficient available capacity to power the module: ...
  • Page 3 Eurorack  case. Ensure the red stripe on the  cable lines up with the -12V pins on the  bus board. On Intellijel power supplies  the pins are labelled with the words  “-12V” and a thick white stripe, as ...

  • Page 4: Operation

      Operation  Buff Mult is a dual 1 x 3 buffered signal multiplier. A signal multiplier takes an input  signal and routes it to multiple outputs simultaneously. For example, you might want  to route keyboard’s pitch CV to three different destinations: one to govern the pitch of ...

  • Page 5: Technical Specifications

         Buff Mult Manual           Technical Specifications    Width  2 hp  Maximum Depth  39 mm  Current Draw  4 mA @ +12V  17 mA @ -12V      Page 4 ...
