Related Manuals for Intellijel Stereo Line In 1U
Summary of Contents for Intellijel Stereo Line In 1U

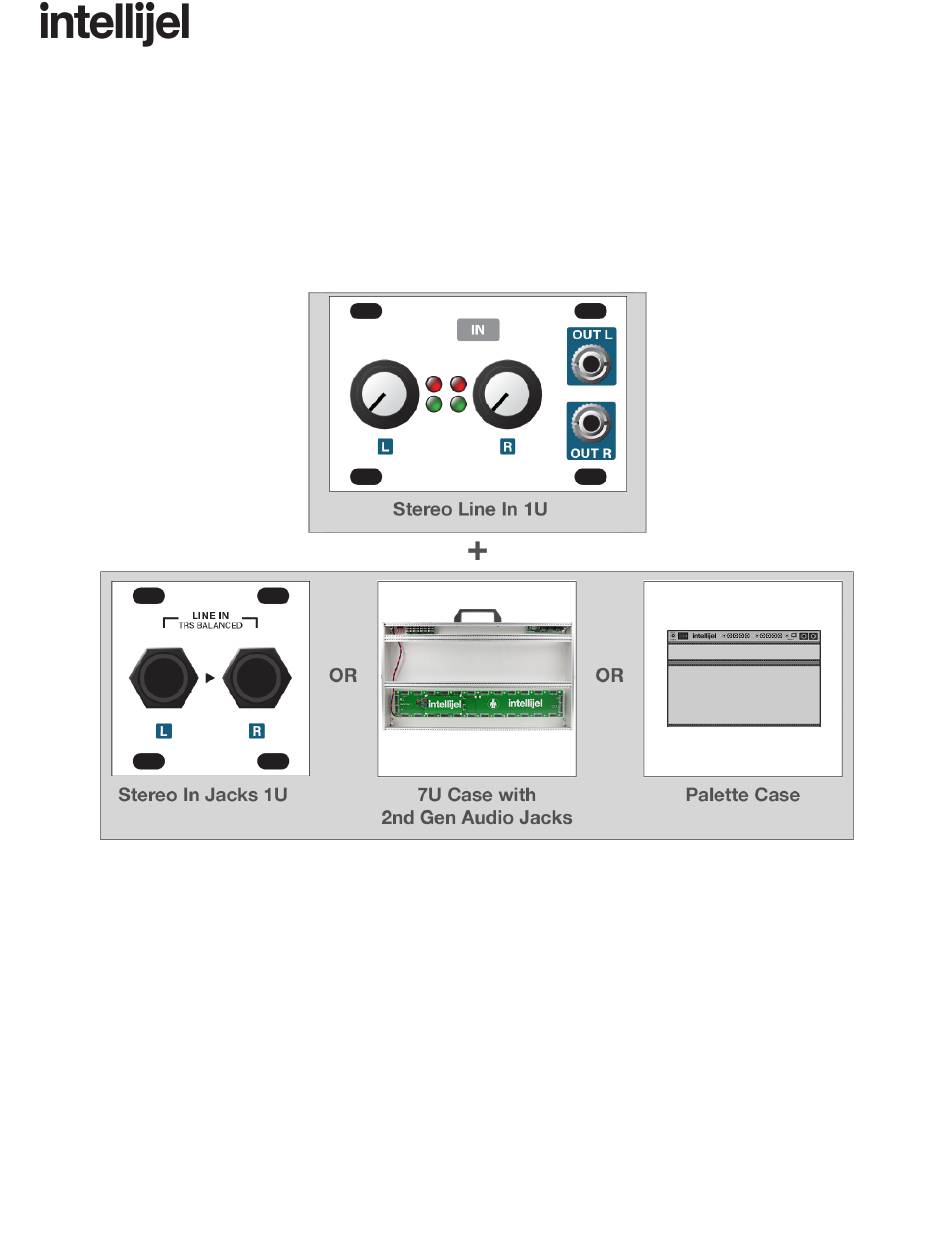

- Page 1 Stereo Line In 1U System Manual Stereo Line In 1U System Stereo Balanced Line Audio Input Manual Revision: 2020.03.02...
-
Page 2: Table Of Contents
Connecting Two Stereo Line In 1U Modules to a 7U Case Connecting Both a Stereo Line In 1U and a Stereo Line Out 1U to a 7U Case Connecting a Stereo Line In 1U to a Palette Case’s ¼” Jacks... -
Page 3: Compliance
(2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by Intellijel Designs, Inc. could void the user’s authority to operate the equipment. Any digital equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. -
Page 4: System Overview
Stereo Line In 1U System Manual System Overview Use the Stereo Line In 1U system to bring external audio into your modular system for processing. The system works with balanced +4 dBu professional audio products and with -10dbV unbalanced gear. -
Page 5: Installation
Before Your Start Intellijel Eurorack modules are designed to be used with a Eurorack-compatible case and power supply. We recommend you use Intellijel cases and power supplies. Before installing a new module in your case, you must ensure your power supply has a free power header and sufficient available capacity to power the module: ●... -
Page 6: Installing Your Module
Eurorack case. Ensure the red stripe on the cable lines up with the -12V pins on the bus board. On Intellijel power supplies the pins are labelled with the label “-12V” and a thick white stripe: If you are using another manufacturer’s power supply, check their documentation for instructions. - Page 7 Stereo Line In 1U System Manual Once connected, the cabling between the module and power supply should resemble the picture below: Before reconnecting power and turning on your modular system, double check that the ribbon cable is fully seated on both ends and that all the pins are correctly aligned.
-
Page 8: Connecting A Stereo Line In 1U To A Stereo In Jacks 1U
Connecting a Stereo Line In 1U to a Stereo In Jacks 1U The Stereo Line In 1U module ships with a ribbon cable for connecting to a pair of ¼” TRS audio jacks — either those built-in to the 2nd generation Audio Jacks Board installed in Intellijel 7U cases ;... -
Page 9: Connecting A Stereo Line In 1U To The ¼" Jacks On A 7U Case
Connecting a Stereo Line In 1U to the ¼” Jacks on a 7U Case The Stereo Line In 1U module ships with a ribbon cable for connecting to a pair of ¼” TRS audio jacks — either those built-in to the 2nd generation Audio Jacks Board installed in Intellijel 7U cases ;... -
Page 10: Connecting Two Stereo Line In 1U Modules To A 7U Case
¼” jacks on the Audio Jacks Board . Connecting Both a Stereo Line In 1U and a Stereo Line Out 1U to a 7U Case You can connect both a Stereo Line In 1U and a Stereo Line Out 1U module to the Audio Jacks board, giving you two inputs and two outputs on a 7U case. -
Page 11: Connecting A Stereo Line In 1U To A Palette Case's ¼" Jacks
Connecting a Stereo Line In 1U to a Palette Case’s ¼” Jacks The Stereo Line In 1U module ships with a ribbon cable for connecting to a pair of ¼” TRS audio jacks — either those built-in to the 2nd generation Audio Jacks Board installed in Intellijel 7U cases ;... -
Page 12: Front Panel (Stereo Line In 1U)
Stereo Line In 1U System Manual Front Panel (Stereo Line In 1U) Controls A. INPUT GAIN L Scales the input signal level, which arrives via a ¼” jack (ie. a Stereo Line In 1U module, a Palette case, or a... -
Page 13: Inputs & Outputs
¼” input jack (i.e, a Stereo In Jacks 1U module; a Palette case; or an Intellijel 7U case with a 2nd generation Audio Jacks Board ). The level of this signal is governed by the INPUT GAIN L knob... -
Page 14: Front Panel (Stereo In Jacks 1U)
An external signal patched into this ¼” TRS jack is passed through to the right channel of a connected Stereo Line In 1U module, where it’s amplified to eurorack levels and made available to other eurorack modules via the right ⅛” output on the Stereo Line In 1U module. -
Page 15: Technical Specifications
Stereo Line In 1U System Manual Technical Specifications Stereo Line In 1U Width 12 hp Maximum Depth 38 mm Current Draw 18 mA @ +12V | 12 mA @ -12V Maximum Balanced Input Line Level +13dbU...
