- Page 1 Polaris Manual Polaris Versatile Multimode VCF / Phaser Manual Revision: 2018.09.13 ...
-
Page 2: Table Of Contents
Polaris Manual Table of Contents Table of Contents Compliance Installation Installing Your Module Overview Features Front Panel Controls Inputs & Outputs Multi Modes Trimmers Technical Specifications Page 1 ... -
Page 3: Compliance
(2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by Intellijel Designs, Inc. could void the user’s authority to operate the equipment. Any digital equipment has been tested and found to comply with the limits for a ... -
Page 4: Installation
Installation Intellijel Eurorack modules are designed to be used with a Eurorack-compatible case and power supply. We recommend you use Intellijel cases and power supplies. Before installing a new module in your case, you must ensure your power supply has a free ... - Page 5 Eurorack case. Ensure the red stripe on the cable lines up with the -12V pins on the bus board. On Intellijel power supplies the pins are labelled with the label “-12V” and a thick white stripe: ...
-
Page 6: Overview
Polaris’s AP phaser mode combined with frequency modulation can be used to achieve a phaser effect. With so much versatility in a modest size, the Polaris is an ideal filter for a starter system and an excellent addition to the tonal palette of a larger modular. ... -
Page 7: Front Panel

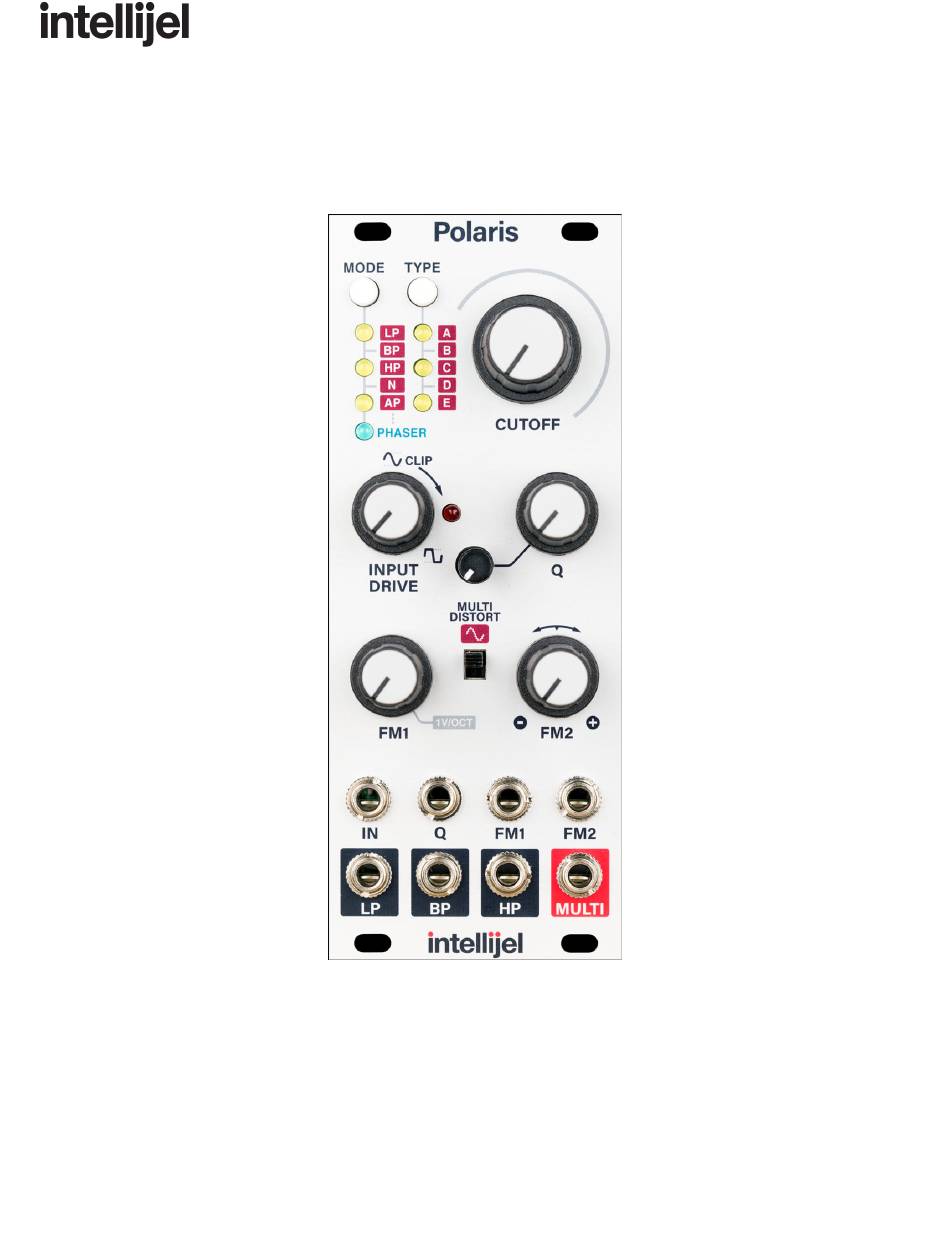

Polaris Manual Front Panel Page 6 ... -
Page 8: Controls
Polaris Manual Controls 1. MODE - This button cycles between the different filter modes of the MULTI output. The LED's below the button indicate the currently selected mode. The modes are LP (Low ... -
Page 9: Multi Modes
Polaris Manual Multi Modes The MODE and TYPE buttons are used to select the filtered signal available at the MULTI output. Pressing either button cycles through the respective options and the current selection is ... -
Page 10: Trimmers
Trimmers The side of the Polaris PCB has a resonance balance trimmer that can be used to set the balance of the self-resonating feedback of the filter with the input signal. This trimmer can be adjusted to change the ... -
Page 11: Technical Specifications
Polaris Manual Technical Specifications Width 10 hp Maximum Depth 40 mm Current Draw 60 mA @ +12V 56 mA @ -12V Page 10 ...
