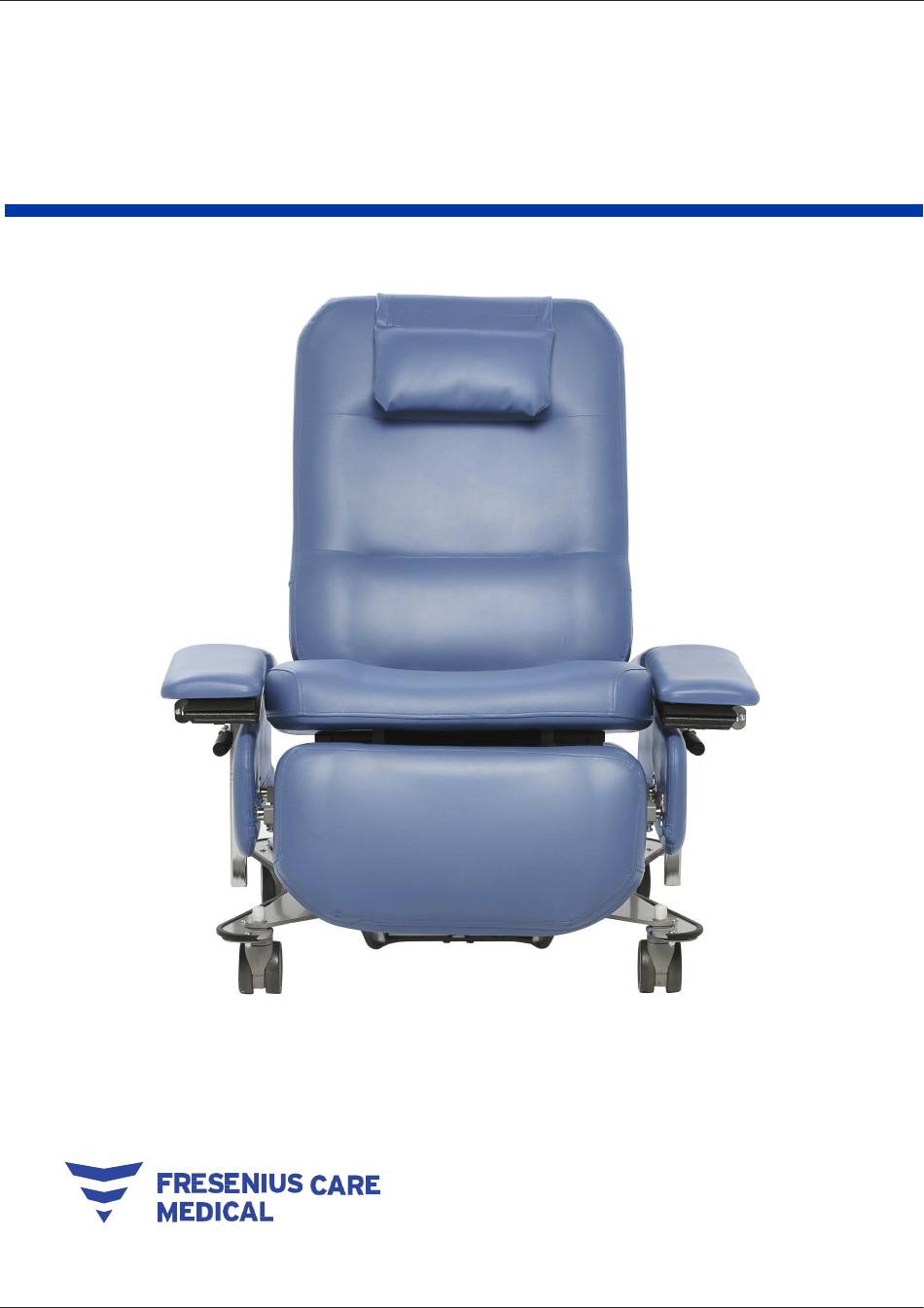

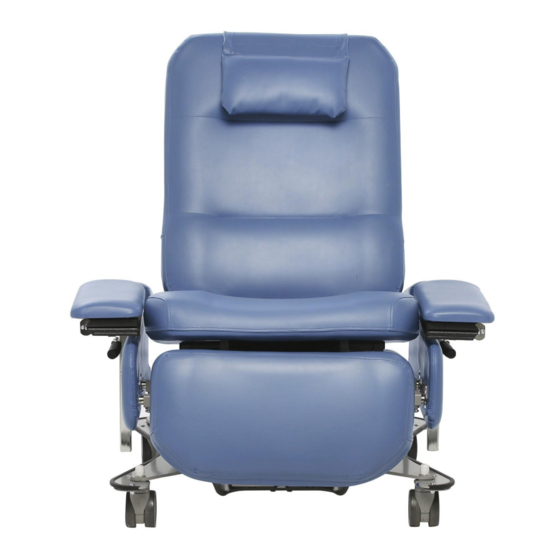

  • Page 1 Medical Treatment Chair T688B Series Instruction Manual...

  • Page 2: Table Of Contents

    FRESENIUS MEDICAL CARE MEDICAL TREATMENT CHAIR INSTRUCTION MANUAL - T688B Series CONTENTS INDICATIONS FOR USE& GENERAL SAFETY ........2 Indications for Use ............2 General Safety .............. 2 Side Effects ..............3 Contraindications ............3 Reporting serious incident ..........3 OPERATING THE MEDICAL TREATMENT CHAIR ....

  • Page 3: Indications For Use& General Safety

    The Medical Treatment Chair is also intended for use in day surgery. The T688B Series chair is designed so that the occupant is accommodated in a seated position with the hips moved back so that the occupant’s back is against the back rest and the legs outstretched and supported by the seat and leg rests.

  • Page 4: Side Effects

    FRESENIUS MEDICAL CARE MEDICAL TREATMENT CHAIR INSTRUCTION MANUAL - T688B Series chairs, and is made of non-conducting material. In general, no responsibility or liability can be accepted by the manufacturer for failure to adhere to the guidelines and instructions contained in this manual.

  • Page 5: Operating The Medical Treatment Chair

    FRESENIUS MEDICAL CARE MEDICAL TREATMENT CHAIR INSTRUCTION MANUAL - T688B Series OPERATING THE MEDICAL TREATMENT CHAIR 1. WARNING: To avoid risk of an electric shock, this chair must only be connected to supply mains with protective earth. 2. When the chair is stationary and positioned to give minimum interference to staff, ensure that all four brakes are locked by depressing the pedal on top of each castor or depressing the centre locking pedals (if fitted) on both sides of chair.
  • Page 6 FRESENIUS MEDICAL CARE MEDICAL TREATMENT CHAIR INSTRUCTION MANUAL - T688B Series 16. To allow the patient to rise from the chair, lower the chair and return it to the upright position. (press and hold memory position #2 until in position) 17.

  • Page 7: Installing The Medical Treatment Chair

    FRESENIUS MEDICAL CARE MEDICAL TREATMENT CHAIR INSTRUCTION MANUAL - T688B Series INSTALLING THE MEDICAL TREATMENT CHAIR Note: Transport damage, if any, should be inspected and reported immediately after delivery. No claims for transport damage will be accepted 7 days after the delivery date.

  • Page 8: Battery Backup (If Fitted)

    The chair must be connected to the power supply to recharge at least every 5 days. HAND CONTROLS & PROGRAMMING Each T688B Series Medical Treatment Chair can be supplied with two hand controls. One nurse-operated hand control and one patient-operated hand control. The patient’s individual hand control allows operation of the leg rest and backrest position.

  • Page 9: Programming Instructions

    Note: If system does not beep when all of the actuators have stopped, please contact Fresenius Medical Care or authorised agent at the contact details provided in Section 5 of this manual for further engineering advice as engineering assistance will be required.

  • Page 10: Maintenance

    The battery cannot be changed by the user. If this is required please contact Fresenius Medical Care or authorised agent. No liability can be accepted by the manufacturer if the chair is operated whilst faulty and further damage occurs.

  • Page 11: Fabric Standards

    Flame Retardant tested to AS1530.3* UV Stable - tested to ISO 105-B02 Colour fastness to artificial light: Xenon arc fading lamp test* *NOTE: This is for Fresenius Medical Care standard supply fabric. Customer specific fabric may not meet these standards. TROUBLE-SHOOTING In the event the chair fails to operate correctly please take the following steps prior to contacting Fresenius Medical Care or its authorised agent.

  • Page 12: Arranging A Service

    ARRANGING A SERVICE In the event that the chair fails to operate correctly or to arrange a service please contact your local representative or Fresenius Medical Care Office. Note: Please quote the chair serial number ( which can be found on the Type Label attached to the chair.

  • Page 13: Warranty Information

    5. The T688B Series Medical Treatment Chair is covered by a 12 month warranty. 6. The T688B Series Medical Treatment Chairs are not covered by warranty if used outdoors. 7. The use of unauthorised labour will void the warranty. Contact Fresenius Medical Care for approval prior to commencing work.

  • Page 14: Physical Description

    PHYSICAL DESCRIPTION DESCRIPTION OF DEVICE T688B series chairs are electrically powered chairs with separate actuators allowing individual movement of lifting, backrest and leg rest. The Nurse Handset hung at the rear of the chair includes controls for Hi-Low (whole chair height), backrest, leg rest, memory position1, 2 &3, and storing memory positions.

  • Page 15: Operating Conditions

    FRESENIUS MEDICAL CARE MEDICAL TREATMENT CHAIR INSTRUCTION MANUAL - T688B Series 8.2.4 Operating Conditions 5ºC – 40ºC (41ºF - 104ºF) Temperature range 20% – 90% Relative humidity 8.2.5 Transport & Storage Conditions 5ºC – 40ºC (41ºF - 104ºF) Temperature range 20% –...

  • Page 16: Key To Symbol

    FRESENIUS MEDICAL CARE MEDICAL TREATMENT CHAIR INSTRUCTION MANUAL - T688B Series Type Label 8.2.7 Key to Symbol 8.2.8 Article Number/Catalog Date of manufacture Number Serial Number CE mark Manufacturer For indoor use only Caution, warning Consult Instruction Manual authorized representative in...
  • Page 17 FRESENIUS MEDICAL CARE MEDICAL TREATMENT CHAIR INSTRUCTION MANUAL - T688B Series Storage and Handling Symbols Keep Dry This way Fragile Fragile Handle with Care Handle with Care Hand Control Symbols Backrest control Memory Position 1 Seat Height Memory Position 2...

  • Page 18: Guidance And Manufacturer's Declaration

    Guidance and manufacturer's declaration -electromagnetic emission The T688B Series Chair is intended for use in the electromagnetic environment specified below. The customer or the user of the T688B Series Chair should assure that it is used in such an environment. Emissions test...
  • Page 19 Guidance and manufacturer’s declaration – electromagnetic immunity The T688B Series Chair is intended for use in the electromagnetic environment specified below. The customer or the user of the T688B Series Chair should assure that it is used in such an environment. IMMUNITY test...
  • Page 20 Guidance and manufacturer’s declaration – electromagnetic immunity The T688B Series Chair is intended for use in the electromagnetic environment specified below. The customer or the user of the T688B Series Chair should assure that it is used in such an environment. Electromagnetic environment –...
  • Page 21 RF communications equipment and the T688B Series Chair The T688B Series Chair is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The customer or the user of the [ME EQUIPMENT or ME SYSTEM] can...
  • Page 22 Fresenius Medical Care Seating (Australia) Pty. Ltd. 786 Stud Road, Scoresby, VIC 3179 Australia...
