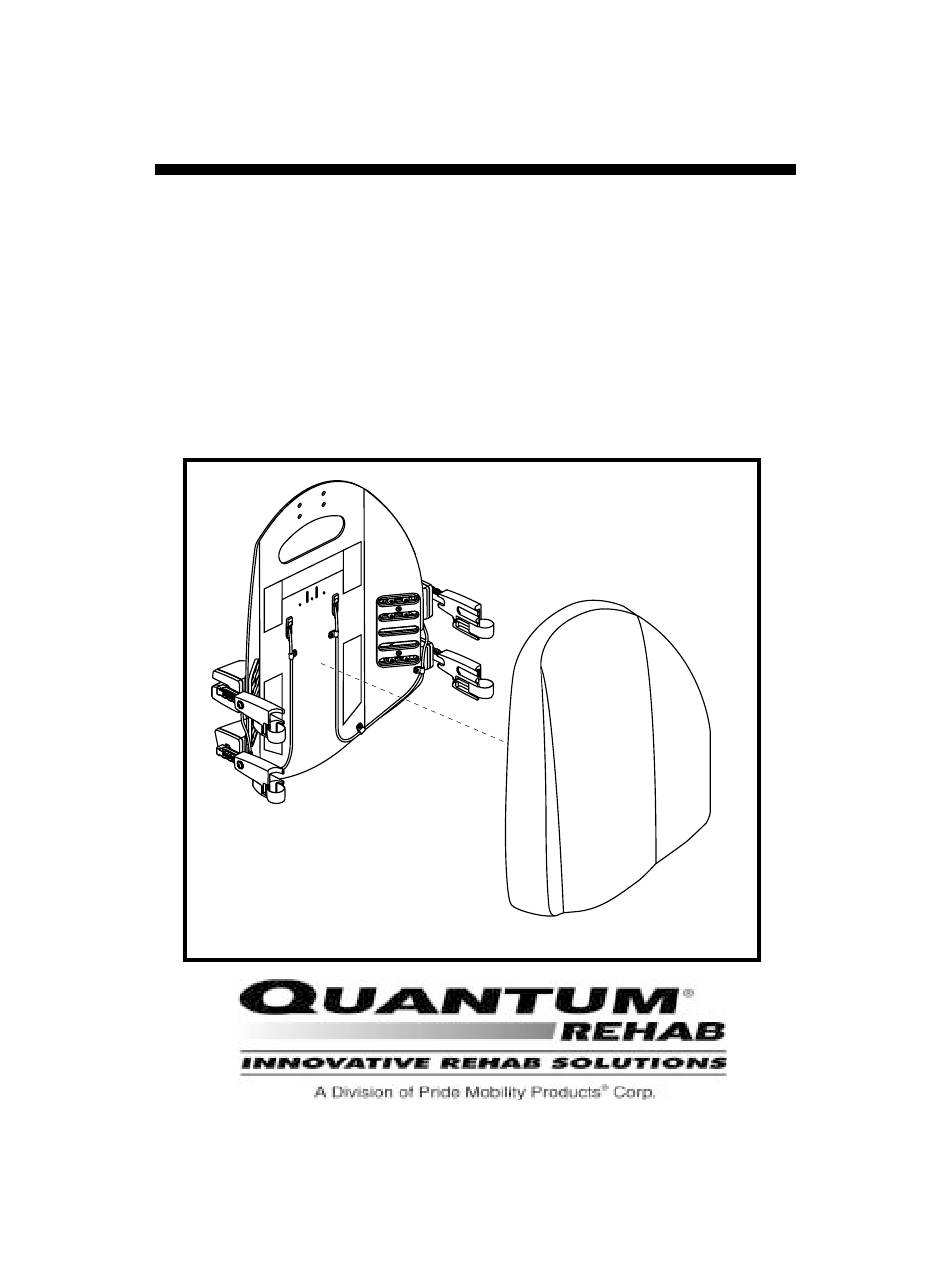

- Page 1 Synergy TRU-Balance INSTALLATION AND CARE INSTRUCTIONS Synergy Shape Back Power Tilt Synergy Shape Back ® ACN# 088 609 661 ACN# 088 609 661...
- Page 2 SAFETY GUIDELINES WARNING! A Quantum Rehab Specialist or a qualified technician must perform the initial setup of this product and must perform all of the instructions in this manual. The symbols below are used throughout this owner's manual and on the product to identify warnings and important information.
-
Page 3: Table Of Contents
THE SYNERGY SHAPE BACK ............ 7 MOUNTING BRACKET COMPONENTS ........9 INSTALLATION AND USE ............10 COMFORT ADJUSTMENTS ............12 REMOVING THE SYNERGY SHAPE BACK ......17 CLEANING .................. 17 STORAGE ..................19 CARE AND MAINTENANCE ............19 WARRANTY ................19 www.quantumrehab.com... -
Page 4: Label Information
The symbols below are used on the product to identify warnings, mandatory ac- tions, and prohibited actions. It is very important for you to read and understand them completely. Read and follow the information in the owner’s manual. Synergy Shape Back www.quantumrehab.com... -
Page 5: Introduction
Installation and Care Instructions INTRODUCTION WELCOME to Quantum Rehab, a division of Pride Mobility Products Corporation (Pride). The product you have purchased combines state-of-the- art components with safety, comfort, and styling in mind. We are confident that the design features will provide you with the conveniences you expect during your daily activities. - Page 6 NOTE: If you ever lose or misplace your product registration card or your copy of this manual, contact us and we will be glad to send you a new one immediately. My Quantum Rehab Specialist Is: Name: _____________________________________________________ Address: ___________________________________________________...
-
Page 7: The Synergy Shape Back
Installation and Care Instructions THE SYNERGY SHAPE BACK The Synergy Shape Back is a unique seatback cushion that is available in standard, tall, and low versions and is fully adjustable for user comfort and positioning needs. Figures 1 and 2 provide information on the Synergy Shape Back components and cushions. - Page 8 Installation and Care Instructions Synergy Shape Back Synergy Shape Back Synergy Shape Back Cushion Tall Cushion Low Cushion Figure 2. Synergy Shape Back Cushions Synergy Shape Back www.quantumrehab.com...
-
Page 9: Mounting Bracket Components
The mounting pin can be used in either the front or back of the mounting bracket and works with the positioning screw to set the Synergy Shape Back at the desired recline angle and seat depth. The safety setscrew must be removed before the mounting pin can be removed and must be reinstalled once the mounting pin is in place. -
Page 10: Installation And Use
WARNING! Make sure the safety setscrew is tightly in place before using the Synergy Shape Back. NOTE: Seatback recline angle, depth, width, and height may be set prior to mounting the Synergy Shape Back on the chair. See “Comfort Adjustments.” To install the Synergy Shape Back on chairs... - Page 11 The right bracket is shown in figure 6 for reference. 2. Hold the Synergy Shape Back up to the desired height on the seat canes and make note of where the mounting brackets will be MOUNTING SCREW located.
-
Page 12: Comfort Adjustments
Once you are familiar with the operation of your chair, there are adjustments you can make to your Synergy Shape Back to increase your comfort, like seatback depth, recline angle, width, and height. See figures 8, 9, 10, and 11. - Page 13 WARNING! When adjustments are complete, be sure to tighten all of the positioning screws and the safety setscrew if you moved the mounting pins. POSITIONING SCREW POSITIONING SCREW MOUNTING MOUNTING PIN Figure 8. Seatback Depth Adjustment www.quantumrehab.com Synergy Shape Back...
- Page 14 POSITIONING SCREW MOUNTING PIN POSITIONING SCREW MOUNTING PIN MAXIMUM RECLINE MAXIMUM PRECLINE Figure 9. Maximum Recline and Precline Angle Adjustment Synergy Shape Back www.quantumrehab.com...
- Page 15 See figure 10. WARNING! When adjustments are complete, be sure to tighten all of the positioning screws LOOSEN POSITIONING SCREWS MOUNTING BLOCKS LOOSEN POSITIONING SCREWS Figure 10. Lateral Support Adjustment www.quantumrehab.com Synergy Shape Back...
- Page 16 2. Reposition all four mounting brackets lower on the seat canes. See figure 11. 3. Tighten all four mounting screws. WARNING! When adjustments are complete, be sure to tighten all of the mounting screws. MOUNTING SCREW MOUNTING SCREW Figure 11. Seatback Height Adjustment Synergy Shape Back www.quantumrehab.com...
-
Page 17: Removing The Synergy Shape Back
Installation and Care Instructions REMOVING THE SYNERGY SHAPE BACK Your Synergy Shape Back can easily be removed using the quick-release system. To remove the Synergy Shape Back: 1. Set the park brake or turn the controller off, if equipped. 2. Lift the quick-release handle on the back of the seatback and push the seat forward and up with one sweeping motion. -
Page 18: Cleaning
WARNING! Do not attempt to put the outer cover in a dryer. This may cause shrinking. 5. Once dry, put the inner cushion back inside the cover. Zip the cover closed, and replace the Synergy Shape Back onto the seat of your chair. INNER CUSHION ZIPPER OUTER COVER Figure 13. -
Page 19: Storage
The Synergy Shape Back cushion is designed and produced to the highest of standards. Our Synergy Shape Back cushion is guaranteed to be free of defects in material and workmanship for a period of 24 months. The outer cover is guaranteed to be free of defects in material and workmanship for a period of 90 days. - Page 20 www.pridemobility.com www.prideservice.com www.quantumrehab.com Pride Mobility Products Corporation 182 Susquehanna Avenue Exeter, PA 18643-2694 Pride Mobility Products Company 380 Vansickle Road Unit 350 St. Catharines, Ontario L2R 6P7 Canada Pride Mobility Products Ltd. Unit 106, Heyford Park Camp Road Upper Heyford, Oxfordshire OX25 5HA Pride Mobility Products Australia Pty.
