Summary of Contents for Quantum Rehab Quantum Dynamo ATS
- Page 2 CAUTION! Failure to heed the cautions in this owner’s manual may result in damage to your power chair. NOTE: Important things to remember when using your power chair. Copyright © 2003 Pride Mobility Products Corp. www.pridemobility.com Quantum Dynamo ATS RevE/May03...
-
Page 3: Table Of Contents
Attention parents, guardians, and power chair attendants: Please read this manual in its entirety before allowing a minor to operate the Quantum Dynamo ATS. Give close attention to all safety guidelines, warnings, and cautions contained in this manual. Neither this manual nor this power chair is intended for use by a... -
Page 4: Introduction

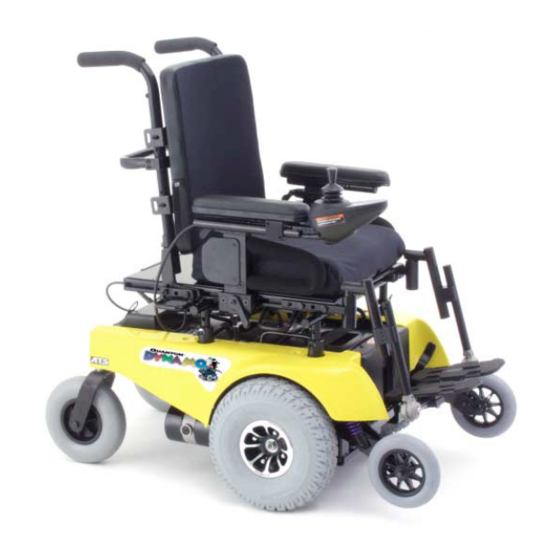

INTRODUCTION NTRODUCTION Welcome to Pride Mobility Products Corporation (Pride). Congratulations on the purchase of your new Quantum Dynamo ATS. The Quantum Dynamo ATS design combines the most advanced state-of-the-art components with modern, attractive styling. We are certain that the design features and trouble-free operation of your new power chair will add convenience to your daily living. -
Page 5: Safety
Pride will not be held responsible for injuries and/or property damage resulting from failure to observe weight limitations. WARNING! Do not carry passengers on your power chair. Carrying passengers on your power chair may result in personal injury and/or property damage. Quantum Dynamo ATS RevE/May03 www.pridemobility.com... - Page 6 Failure to maintain 30-35 psi tire pressure in pneumatic tires at all times may result in tire and/or wheel failure, causing serious personal injury and/or damage to your Quantum Dynamo ATS. WARNING! Inflate your power chair drive tires from a regulated air source with an available pressure gauge.
- Page 7 Your power chair is equipped with a manual freewheel lever to allow for manual maneuverability by a trained attendant. For more information about how to place your power chair into and out of freewheel mode, see “Your Quantum Dynamo ATS”.
- Page 8 Turn the power off. See “Operation.” Ensure your power chair is not in freewheel mode. See “Your Quantum Dynamo ATS” Turn both caster wheels toward the transfer destination to improve power chair stability during transfer. Make sure both armrests are flipped up or removed from your power chair.
- Page 9 WARNING! Battery posts, terminals, and related accessories contain lead and lead compounds. Wash hands after handling. WARNING! Always protect the batteries from freezing and never charge a frozen battery. Charging a frozen battery may result in personal injury and/or damage to the battery. Quantum Dynamo ATS RevE/May03 www.pridemobility.com...
-
Page 10: Emi/Rfi
This is hard to predict. The effect may depend on a number of factors including: Strength of the radio waves Construction of the power chair Position of the power chair (whether it is on level ground or on a slope) Whether or not the power chair is in motion www.pridemobility.com Quantum Dynamo ATS RevE/May03... - Page 11 Be aware that adding accessories and/or components or modifying the power chair may make it more susceptible to interference from radio wave sources. There is no easy way to evaluate the effect of accessories or modifications upon the overall immunity of the power chair. Quantum Dynamo ATS RevE/May03 www.pridemobility.com...
-
Page 12: Your Quantum Dynamo Ats
Typically, the seating system includes the armrests, the seatback, the seat base, and the joystick/controller. The power base is the heart of your Quantum Dynamo ATS. The power base assembly includes two drive wheels, two anti-tip wheels, two rear caster wheels, a body shroud, four frame assemblies (located under the body shroud), two battery boxes, and the electrical connectors. -
Page 13: Specifications
YOUR QUANTUM DYNAMO ATS SPECIFICATIONS Suspension: Active-Trac suspension Drive Wheels: 10 in., pneumatic, center-mounted (solid tires are optional) Caster Wheels: 8 in., solid, rear articulating Anti-tip Wheels: 6 in., solid, front mounted Maximum Speed: Up to 4.0 mph* Brakes: “Intelligent Braking,” electronic regenerative, disc park brake"... - Page 14 YOUR QUANTUM DYNAMO ATS JOYSTICK/CONTROLLER HARNESS MAIN CIRCUIT BREAKER BATTERY CHARGER AC CONNECTOR POWER RECEPTACLE AMMETER Figure 3. Power Base Rear View - Electronics Tray FRONT BATTERY BOX MOTOR CONNECTORS BATTERY CONNECTORS SEAT MOUNT CONNECTORS BATTERY CAUTION LABEL REAR BATTERY BOX Figure 4.
-
Page 15: Seat And Power Base Components
This is called freewheel mode. WARNING! Do not use your Quantum Dynamo ATS while the drive motors are disengaged unless you are in the presence of an attendant! Do not disengage the drive motors when your power chair is on an incline. The chair... -
Page 16: Active - Trac System
After you have become familiar with your power chair’s operation, you may find the need to make adjustments to the seat to increase your comfort. WARNING! If your Quantum Dynamo ATS was config- ured at your authorized Pride provider or service cen- ter, please consult your healthcare professional before changing seat position or making any other adjustment. -
Page 17: Armrest Adjustment
1. Use a 3/16-in. hex key to remove the two screws on the back of the leg rest. See figure 12. 2. Slide the adjustment tube up or down to the desired position. FRONT 3. Reinstall and tighten the screws. SHOULDER BOLT Figure 10. Flip-up Armrest Height Adjustment Quantum Dynamo ATS RevE/May03 www.pridemobility.com... -
Page 18: Joystick Extension
The anti-tip wheels are preset at the factory to a height of 3/4-in. off the ground. This is the ideal setting for most Quantum Dynamo ATS users. However, you may encounter situations where you may need to adjust the anti-tip wheels. -
Page 19: Operation
When you release the joystick and allow it to return to the neutral position, you engage the electromagnetic brakes. This causes your power chair to decelerate and come to a complete stop. Quantum Dynamo ATS RevE/May03 www.pridemobility.com... -
Page 20: Speed And Mode Adjustments
“ripple up and down of lights”, turn off the controller, allow the joystick to return to the neutral position, then turn on the controller. NOTE: If you still get “ripple up and down of lights”, contact your authorized Pride Provider. www.pridemobility.com Quantum Dynamo ATS RevE/May03... - Page 21 The battery condition meter lights on the keypad indicate sleep mode by blinking once every five seconds. To restore power and continue, push the on/off key twice. Quantum Dynamo ATS RevE/May03 www.pridemobility.com...
- Page 22 The Europa master remote consists of the following (see figure 15): 1. joystick 2. keypad 3. controller communications connector 4. off-board charger/programming socket Figure 15. Europa Master Remote www.pridemobility.com Quantum Dynamo ATS RevE/May03...
- Page 23 This means that it is still locked. 3. Hold the magnetic key on or near the key symbol again to unlock the system. When the key symbol stops flashing, you may turn on the power chair. Quantum Dynamo ATS RevE/May03 www.pridemobility.com...
- Page 24 Europa. See figure 15. If you use and off-board charger, the charger current should not exceed 8 amps. Contact your autho- rized Pride provider for more information. NOTE: The socket may also be used for reprogramming the Europa. Contact your authorized Pride provider for more information. www.pridemobility.com Quantum Dynamo ATS RevE/May03...
- Page 25 The controller must be turned off and then on again even if the source of the fault is removed. If you cannot resolve the problem, contact your authorized Pride provider. Quantum Dynamo ATS RevE/May03 www.pridemobility.com...
-
Page 26: Batteries And Charging
1. Fully recharge any new battery prior to initial use. This will bring the battery up to about 90% of its peak performance level. 2. Run your Quantum Dynamo ATS about the house and yard. Move slowly at first, and do not stray too far until you become accustomed to the controls and break in the batteries. - Page 27 Deep-cycle batteries are specifically designed to provide power, drain down their charge, and then accept a relatively quick recharge. Lead-acid batteries should be charged as often as possible. They do not have a “memory” like nickel-cadmium batteries. Quantum Dynamo ATS RevE/May03 www.pridemobility.com...
-
Page 28: Disassembly
DISASSEMBLY We work closely with our battery manufacturer to provide a battery that best suits the Quantum Dynamo ATS’s specific demands. Fresh batteries arrive regularly and are promptly shipped with a full charge. During shipping, the batteries encoun- ter temperature extremes that may influence their initial performance. Heat robs the charge from the battery, and cold slows the power available and extends the time needed to recharge the battery (just as with a car battery). - Page 29 LEFT POWER BASE FRAME ASSEMBLY FRONT FRAME Figure 17. Quantum Dynamo ATS Component Assemblies DISCONNECT THE JOYSTICK/CONTROLLER HARNESS. Disconnect the joystick/controller harness from its connector on the electronics tray. See figure 3. You may need to pull firmly and gently wiggle the harness to remove it from the connector.
-
Page 30: Assembly
See figure 25. Figure 23. Frame Assemblies 4. Repeat for the other power base frame asssembly. www.pridemobility.com Quantum Dynamo ATS RevE/May03... - Page 31 1. Reconnect the joystick/controller harness to its connector on the electronics tray. See figure 3. CAUTION! Do not place the joystick/controller harness so that it can be pinched in the seat frame or the power Figure 26. Connect Battery Well Frame base frame. Quantum Dynamo ATS RevE/May03 www.pridemobility.com...
-
Page 32: Care And Maintenance
(e.g., sealed lead-acid or gel cell). Temperatures above 122° F may cause your Quantum Dynamo ATS to operate at a reduced speed. This is a safety feature built into the controller that helps prevent damage to the motor and other electrical components. See “Operation.”... -
Page 33: Storage
Use soapy water and dry the seat thoroughly. TIRES AND TUBES If your Quantum Dynamo ATS is equipped with pneumatic tires, you should check the air pressure at least once a week. This prolongs the life of your tires and helps to ensure the proper operation of your chair. -
Page 34: Battery Replacement
WORN MOTOR BRUSH MOTOR BRUSHES The electric motors that power your Quantum Dynamo ATS use carbon brushes. These brushes may become susceptible to wear over a long period of time. The motor brushes are the two contacts located inside the motor assembly that supply power to the motor. -
Page 35: Corrective Maintenance
Disconnect both batteries before load testing, and follow the directions that came with the load tester. If either one of the batteries fails the load test, replace both of them. If your Quantum Dynamo ATS still does not power up, contact your authorized Pride provider. -
Page 36: Optional Accessories
The footrest is height and angle adjustable and provides you with a resting place for your feet while you operate your power chair. SPECIALTY SEATING SYSTEMS Your Quantum Dynamo ATS may be equipped with specialty seating. Please refer to the instructions that come with the seat. Figure 33. Cup Holder www.pridemobility.com... -
Page 37: Warranty
LIFETIME LIMITED WARRANTY For the lifetime of your Quantum Dynamo ATS from the date of purchase, Pride will repair or replace at our option to the original purchaser free of charge any of the following parts found upon examination by an authorized representative of Pride... - Page 38 This warranty gives you specific rights, and you may also have other rights which vary from state to state. Please fill out and return the warranty card to Pride. This assists Pride in providing the best possible technical and customer service. www.pridemobility.com Quantum Dynamo ATS RevE/May03...
- Page 40 ______________ ______________...
