Furniture Solutions (Aust) Pty Ltd
10-16 Daisy St,
Revesby, NSW. 2212
www.furnituresolutions.com.au
Please retain these pages as they contain tips to maximize the lifetime of your furniture with a measured effort.
Properly caring for your furniture can help ensure that it looks great year after year.
Important Notice: While every effort is made to use quality materials our products are limited in design for domestic use only
& are not suitable for commercial use.

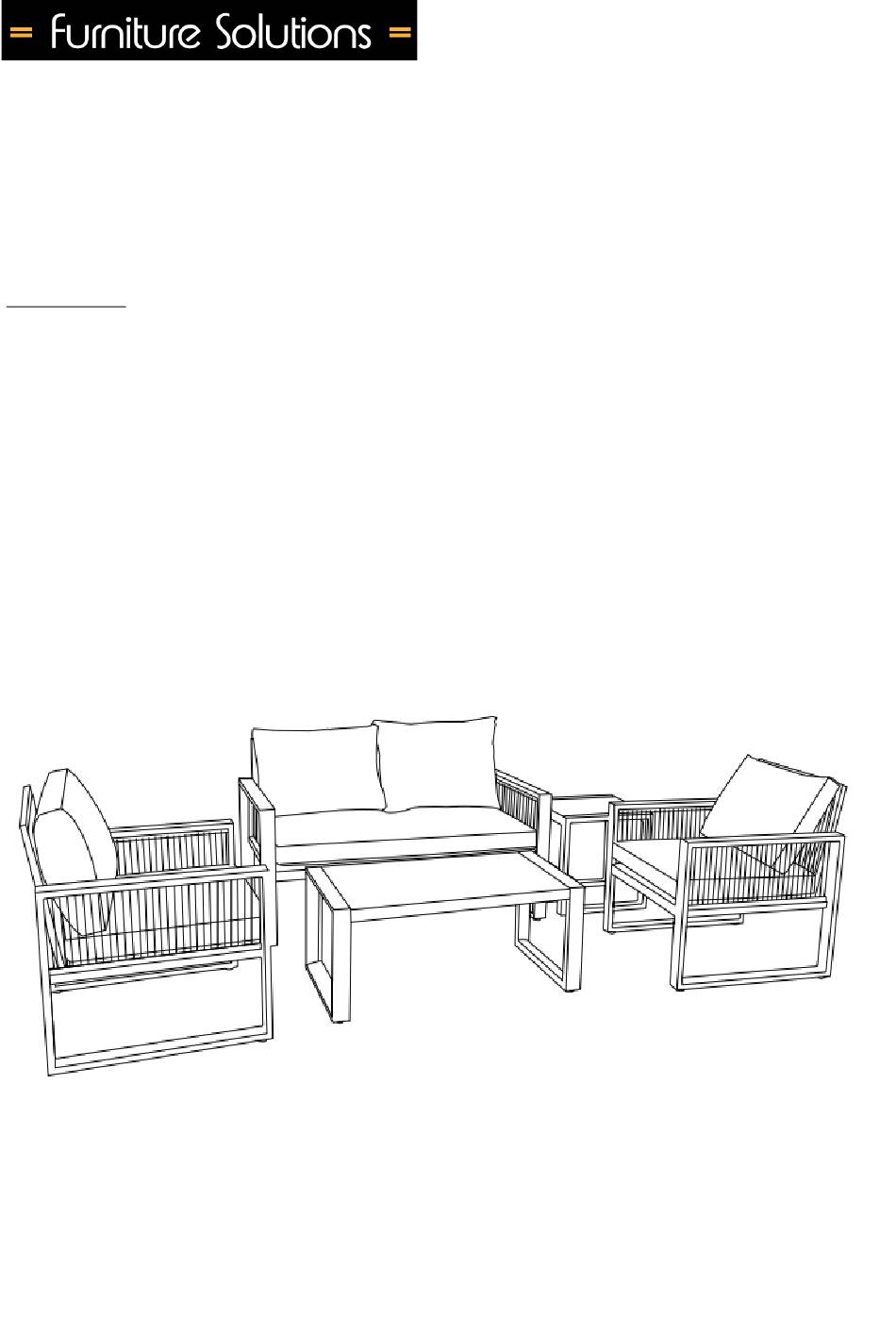

ARCADIA 5PC LOUNGE
INSTRUCTION MANUAL
PRODUCT: ARCADIA 5PC LOUNGE
ITEM CODE: 17ARCL4SW
MADE IN CHINA
Advertisement
Related Manuals for Furniture Solutions ARCADIA 17ARCL4SW
Summary of Contents for Furniture Solutions ARCADIA 17ARCL4SW
- Page 1 INSTRUCTION MANUAL PRODUCT: ARCADIA 5PC LOUNGE Furniture Solutions (Aust) Pty Ltd ITEM CODE: 17ARCL4SW 10-16 Daisy St, MADE IN CHINA Revesby, NSW. 2212 www.furnituresolutions.com.au Please retain these pages as they contain tips to maximize the lifetime of your furniture with a measured effort.
-
Page 2: Pre Assembly Preparation
Do not over tighten the screws and bolts as this may damage the threads MINUTES ALLOW TIME PEOPLE REQUIRED For any assistance with assembly or missing parts please contact: Place of purchase or Furniture Solutions on below Customer Service (Australia) Phone– 1300794 188 Email– customerservice@furnituresolutions.com.au... - Page 3 Component & Parts List Armchair x 2 Component & Parts List 2 Seat Sofa A: x 2 A: x 1 Left Hand Arm Left Hand Arm B: x 2 B: x 1 Right Hand Arm Right Hand Arm C: x 2 C: x 1 Back rest Back Rest...
- Page 4 Coffee Table Parts List Side Table Parts list A: x 1 A: x 1 Table Rim Table Rim B: x 2 B: x 2 C: x 1 C: x 1 Glass Panel Glass Panel D: x 8 D: x 8 Bolt Small Bolt Small M6-15mm...
- Page 5 Assembly for Arcadia 5Pce Lounge. First of all preparation is paramount before you start to assemble. The arms for sofa’s are the same for armchair & 2 seater’s but there is a left & right arm. Suggest you identify which is which and stack separately. To tell the difference note that there is a thread hole on back of arm on inside, that hole indicates which is which, holes face inwards.
- Page 6 Assembly Instructions – Armchair & 2 Seat Sofa –Step 1 Note instruction are them same only 2 pieces are different size, Back Rest & Seat. Start with back rest [C] and seat frame [D]. Join together as indicated in diagram ensure seat covering is facing correctly.
- Page 7 Assembly Instructions – Armchair & 2 Seat Sofa –Step 3 Note instruction are them same only 2 pieces are different size, Back Rest & Seat Next lay other arm in same position as above. Repeat assembly as previously stated. Ensure a second person is holding frame work during this process. Now turn product that is standing on its feet, have second person help square up and hold in position while you take tool [I] and tighten all bolts, till firm.
- Page 8 PRODUCT CARE & MAINTENANCE Fabric Information Fabrics used in outdoor product are not made of any special type of material; they do however use blends of common materials such as polyester, olefin & acrylic which perform best for intended purpose. These fabrics are not impervious to fading or mould, ensure cushions are always dry and put away when not in use.
- Page 9 Cushions Rotate cushion if possible to share the wear, take in cushions when not in use & stored in a dry area. Should cushions get wet, please hang over chair frame to drip dry completely before using or storing. Cushion and sling fabric fading resulting from general wear and tear or from a failure to comply with these care and maintenance instructions are not covered under the warranty.
- Page 10 To make a warranty claim, customers can either contact the retailer where the purchase was made or Furniture Solutions on contact details below. Proof of purchase will be required before proceeding with any claim. In the case of product defects providing photos may be able to speed up processing of the claim.
