- Page 1 Installation Manual THM-0600 Touch Screen Programmable Thermostat Version 1.0.0 THM-0600 HBX Control Systems Inc.
-
Page 2: Table Of Contents
Wiring must be completed in accordance with the codes and practices applicable to the jurisdiction for the actual installation. The HBX THM-0600 is a microprocessor based controller and as such is not to be regarded as a safety (limit) control. Please consult and install the heating or cooling appliance in accordance with the manufacturer’s recommendations. -
Page 3: Receipt And Inspection
The THM-0600 is a programmable thermostat designed to be used with the ZON- 0600 Zone Control, and ThermoLinx mobile app. It is normal for the THM-0600 screen to remain off up to 120 seconds upon start-up. The THM-0600 has two external sensor inputs, multiple heating/cooling modes and can function as a digital setpoint/aquastat. - Page 4 Do not use the screwdriver on the bottom of the thermostat. This can cause damage to the THM-0600 External Room Thermistor On the THM-0600, the room thermistor switch is located on the bottom left corner of the thermostat.
-
Page 5: Programming Thm-0600

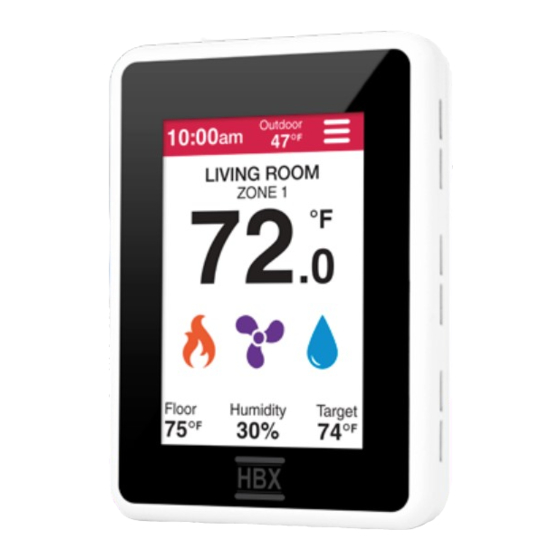

PROGRAMMING THM-0600 Navigating the Thermostat The touchscreen of this thermostat makes Outdoor 10:00 it easy to change used settings. Touch 47° any item to adjust its setting excluding the LIVING ROOM time on the home screen. ZONE 1 °F Simply touch the temperature to adjust your desired target temperature. -
Page 6: Special Functions
When the Thermostat is locked, only minimal temperature target adjustment can be made. 2°C/3°F above/under. Sync Code This number is the identifier used in the Special Functions ATHM-0123 HBX ThermoLinx App to connect to your Stat Type Heat Only thermostat. Demand Type Priority... - Page 7 Type - Select between Heating, Cooling, and a variety of combined modes. Special Functions Special Functions Special Functions Special Functions Special Functions Heat Only Function ATHM-0000 ATHM-0000 ATHM-0000 ATHM-0000 ATHM-0000 Stat Type Stat Type Select the “Heat Only Function” for applications using a Stat Type Stat Type Stat Type...
- Page 8 Demand - This option allows the user to determine what happens when the thermostat makes a call. Low - Low Temperature Demand High - High Temperature Demand DHW - Domestic Hot Water (Digital Aquastat) Fan - Fancoil Demand Note: DHW only available in heat only type © 2020 HBX Controls...
- Page 9 Priority - This option allows the user to set a priority on a zone(s) over other zone(s). Priorities range from 1 (highest) to 7 (lowest). Higher priorities will lock out lower priorities until the demand has been satisfied. Multiple zones can be given the same numbered priority.
- Page 10 Floor Ave – Averages auxiliary and optional external floor sensor in lieu of room sensor When using the external room/floor sensor on pins 1 and 2 ensure the dipswitch is set to external. © 2020 HBX Controls...
- Page 11 Room Offset - This feature allows you to program an offset. In the case that the thermostat is not reading the same temperature as the actual temperature in the room. Special Functions Example Actual Room Temperature 72 °F. ATHM-0000 Direct Sunlight causes Thermostat to show 78 °F. Stat Type Heat Only The user can put an offset of -6 °F to get the...
- Page 12 This option is only available for Zone 1 and Zone 3. When damper mode is enabled you will not be able to utilize 4-Pipe Geo mode. © 2020 HBX Controls...
- Page 13 4-Pipe Geo - Controls a 4 pipe system in a geothermal application. This option will require to use the next corresponding zone output to accommodate for cooling. This is only available for Zone 1 and 3. Special Functions OFF - 4-Pipe Geo is disabled ATHM-0000 ON - 4-Pipe Geo is enabled THM Mode...
-
Page 14: Setup Menu
Heating/Cooling temperatures will only be 8:00am 66° displayed if thermostat has a heating/cooling type selected. 4:00pm 72° 10:00pm 64° The cooling setting must be a minimum of 2°F higher than the heating setting. Heating Weekend © 2020 HBX Controls 6:00am 70°... - Page 15 10:00pm 64° Heating/Cooling Target - The chosen setpoint for heating and cooling zones. Targets will be accessible in relation to the thermostat type chosen. Time 8:00am Heating Target - Change the minimum temperature for Weekday your zone. If the temperature in the zone falls below this 6:00am 70°...
- Page 16 Ex: The fan will come on for 15 min every 2H. Set (Int Fan Degrees ° On: 15 min) & (Int Fan Off: 2H) Setup Menu Mode Heat Away Settings Humidity Humidity Settings Fan Settings Backlight Bright Degrees ° Setup Menu © 2020 HBX Controls Mode Heat Away Settings...
- Page 17 Humidity Mode Heat Humidity Settings Away Settings Fan Settings Backlight - This option adjusts the brightness of the thermostat screen during Humidity Backlight Bright idle. Humidity Settings Degrees ° Fan Settings OFF - Screen backlight is off during idle Setup Menu Backlight Bright BRIGHT - Screen backlight is at 100%...
- Page 18 THM-0600 Drawing 1 Zone 1 and 3 are running 1st stage radiant and then 2nd stage damper with cooling Fancoil Zone 1 Zone 3 Thermostat THM -0600 THM -0600 Thermostat INT. ROOM INT. ROOM DO NOT DO NOT CONNECT CONNECT...
- Page 19 THM-0600 Drawing 2 To use external room thermistor, toggle dip-switch from Internal to External on THM-0600 Zone 1 Zone 2 Zone 3 THM -0600 Thermostat THM -0600 Thermostat THM -0600 Thermostat INT. ROOM INT. ROOM INT. ROOM DO NOT DO NOT...
- Page 20 THM-0600 Drawing 3 Zone 3 Zone 4 Fancoil Zone 1 THM -0600 Thermostat THM -0600 Thermostat THM -0600 Thermostat INT. ROOM INT. ROOM DO NOT INT. ROOM DO NOT DO NOT CONNECT CONNECT CONNECT POWER POWER POWER HERE EXT. ROOM...
-
Page 21: Troubleshooting Guide
TROUBLESHOOTING GUIDE ISSUE POSSIBLE CAUSES & RESOLUTIONS Blank Screen • Check the ZON-0600 power • Check wiring polarity between the THM-0600 and ZON-0600 module. • Ensure zones 1 and 3 damper/4-pipe is set correctly. Stage 2 won’t • Check stage delay in fancoil setup for come on proper time. - Page 22 Contact HBX Technical Support for settings not all contactor code to unlock advanced displayed on settings. the ThermoLinx For additional assistance with the THM-0600, please contact our Technical Support Department toll free at: +1 (855) 410-2341 © 2020 HBX Controls...
-
Page 23: Limited Warranty
Limitation of Liability In no event will HBX be liable for any damages, including loss of data, loss of profits, costs of cover or other incidental, consequential or indirect damages arising out of the installation, maintenance, commissioning, performance, failure or interruption of an HBX product, however caused and on any theory of liability. - Page 24 V1.02 Toll Free Technical Support: +1 (855) 410 2341...
