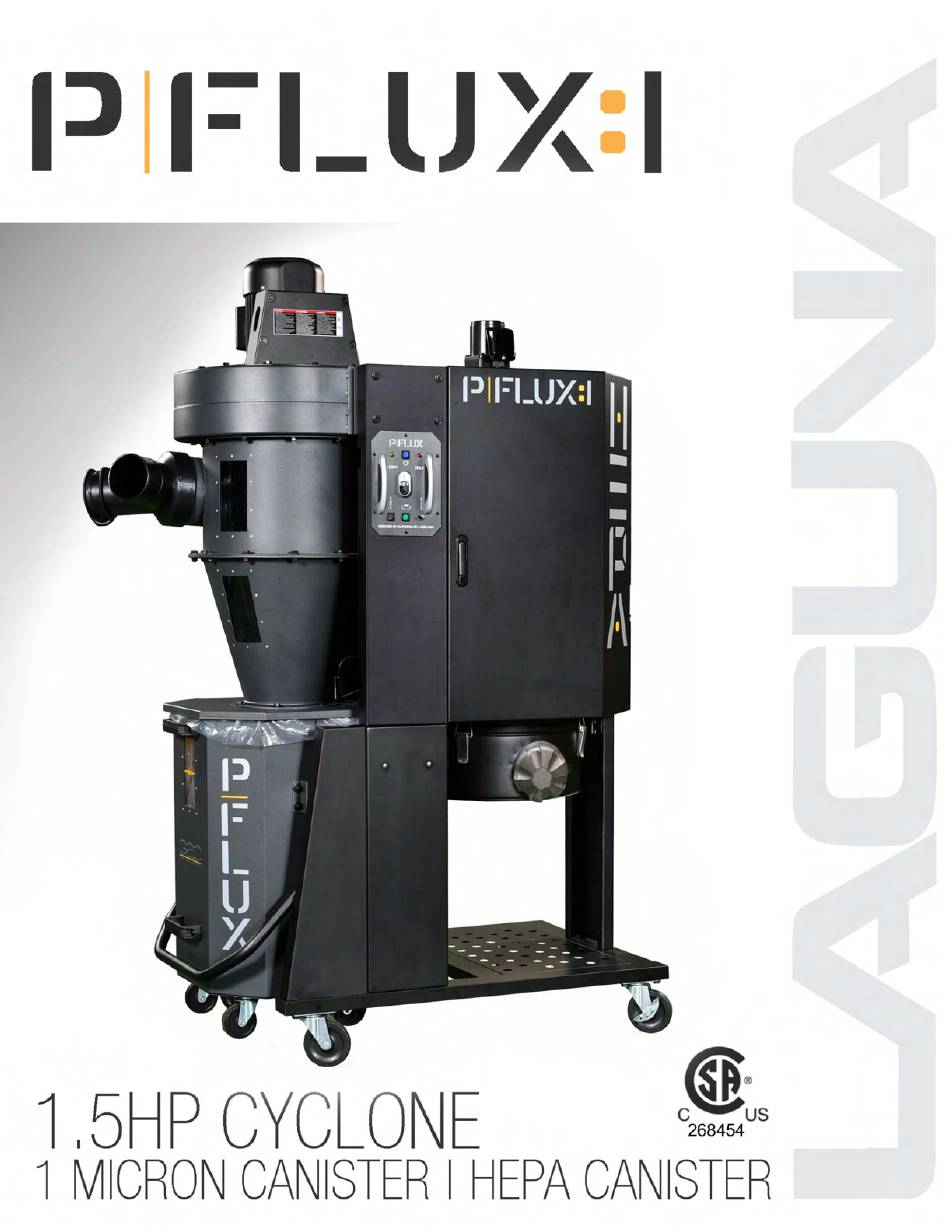

OPERATING AND PARTS MANUAL
1.5HP Mobile Dust Cyclone Collector
PFLUX1 NEW GENERATION
Please read and save these instructions. Read carefully before attempting to assemble,
install, operate or maintain the product described. Protect yourself and others by
observing all safety information. Failure to comply with instructions could result in
personal injury and/or property damage! Retain instructions for future reference.
LAGUNA TOOLS
2072 Alton Parkway
Irvine, California 92606
Ph: 800.234.1976
www.lagunatools.com
Part No.
© 2021 Laguna Tools, Inc. All rights reserved.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PFLUX1 and is the answer not in the manual?

Questions and answers

Robert
March 13, 2025

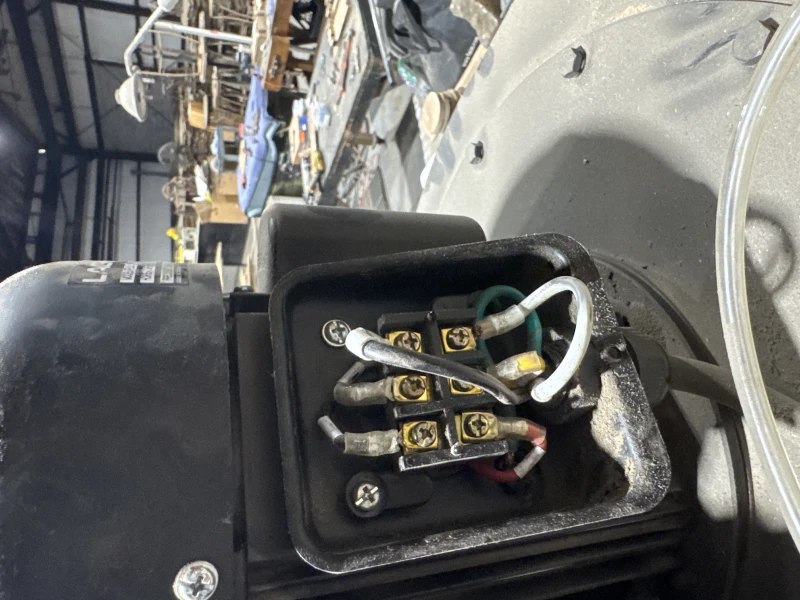

Motor wiring diagram for 110v

User image 67d2df114a612
0
1 comments:
Mr. Anderson
May 14, 2025

The motor wiring diagram for the Laguna Tools PFLUX1 at 110V is shown in Figure 16, labeled "110V Wiring, Junction Box." To access it, open the junction box on the autoclean motor and disconnect the 110V wiring as indicated. Specific wire connections are not described in the text, so refer to Figure 16 for the detailed diagram.

This answer is automatically generated

0

Subscribe to Our Youtube Channel

Related Manuals for Laguna Tools PFLUX1

Summary of Contents for Laguna Tools PFLUX1

  • Page 1 Failure to comply with instructions could result in personal injury and/or property damage! Retain instructions for future reference. LAGUNA TOOLS 2072 Alton Parkway Irvine, California 92606 Ph: 800.234.1976 Part No. www.lagunatools.com © 2021 Laguna Tools, Inc. All rights reserved.
  • Page 2 Machines sold through dealers must be registered with Laguna Tools within 30 days of purchase to be covered by this warranty. Laguna Tools guarantees all new machine sold to be free of manufacturers’ defective workmanship, parts and materials.

  • Page 3: Table Of Contents

    CONTENTS Warranty: Safety: Important Safety Instructions General Safety Rules Wiring Diagrams: Power Connections Programming Remote Control Unpacking: Assembly: Power Supply 110V to 220V Conversion, single phase Operation: Maintenance: Circuit Board Replacement Trouble Shooting: Parts Breakdown / Exploded Views: Parts List Specifications: Supplies: 1.5HP Mobile Dust Cyclone Manual...

  • Page 4: Warranty

    Warranty Registration Register your machine at https://lagunatools.com/policies/warranty/ To prevent voiding this warranty, all products sold must be registered within thirty (30) days of receiving the product. Registering the product will enable the original purchaser to receive notifications about important product changes, receive customer service, and be able to file a warranty claim against defective workmanship, parts, or materials.

  • Page 5: Important Safety Instructions

    Woodworking (and similar materials) can be dangerous if safe and proper operating procedures are not followed. As with all machinery, there are certain hazards involved with the operation of the machine. Using the machine with respect and caution will considerably lessen the possibility of personal injury.
  • Page 6 4. Do not use this machine for other than its intended use. If used for other purposes, LAGUNA TOOLS INC., disclaims any real or implied warranty and holds itself harmless from any injury that may result from that use.
  • Page 7 Your risk of exposure varies, depending on how often you do this type of work. To reduce your exposure to these chemicals, work in a well-ventilated area and work with approved safety equipment, such as face or dust masks that are specifically designed to filter out microscopic particles.

  • Page 8: General Safety Rules

    21.Give your work undivided attention. Looking around, carrying on a conversation and “horse-play” are careless acts that can result in serious injury. 22.Always maintain a balanced stance so that you do not fall or lean against the dust collector. Do not overreach or use excessive force to perform any machine operation.
  • Page 9 FOR YOUR OWN SAFETY, READ AND UNDERSTAND THE INSTRUCTION MANUAL BEFORE OPERATING THE MACHINE. Learn the unit’s application and limitations as well as the specific hazards peculiar to it. KEEP WORK AREA CLEAN. Cluttered areas and benches invite accidents. DON’T USE IN DANGEROUS ENVIRONMENT. Don’t use this unit in damp or wet locations or expose it to rain.
  • Page 10 Disconnecting power supply. Turn the switch off, disconnect the dust collector from the power supply, and allow the impeller to come to a complete stop before leaving the machine unattended or doing any service, cleaning, maintenance, or adjustments. Suspended dust particles and ignition sources. Do not operate the dust collector in areas where explosion risks are high.

  • Page 11: Wiring Diagrams

    WIRING DIAGRAMS POWER CONNECTIONS 110 Volt Figure 1: 110 Volt Power Connections & Wiring 1.5HP Mobile Dust Cyclone Manual...
  • Page 12 Figure 2: 110 Volt Internal Wiring 1.5HP Mobile Dust Cyclone Manual...
  • Page 13 DO NOT EXPOSE THE MACHINE TO RAIN OR OPERATE THE MACHINE IN DAMP LOCATIONS. MOTOR SPECIFICATIONS Your machine is wired for 110 volts, 60 HZ alternating current. Before connecting the machine to the power source, make sure the switch is in the "OFF" position. An (appx.) 8’ cord is included, a “plug”...
  • Page 14 - PDCPF-ACM220V-C → Autoclean capacitor 1.5uF/450VAC - PDCPF15110-220-OV → Overload protector 15A - Plug 220 Volt (source from local electrician, not available from Laguna Tools) A qualified electrician should do the conversion, or the machine can be taken to an Authorized Dealer Service Center.

  • Page 15: Programming Remote Control

    FUNCTION Full drum detection HEPA Filter detection *includes sound alert. ON/OFF button to illuminate drum ON/OFF Switch Receiver SET button On board circuit breaker Override Figure 3: High Frequency Remote Control Receiver and Manual Switch HEPA Filter detection – will illuminate when filter cleans (automatic cleaning/override) Full drum detection –...

  • Page 16: Unpacking

    1. Confirm the machine is switched ON before programming the remote control. 2. Press the Receiver Set Button on the bottom of the remote switch until you hear two beeps. 3. Press the Remote Set Button on the handheld remote control simultaneously with the black button until you hear three beeps to complete the set up.
  • Page 17 The 1.5HP Mobile Dust Cyclone comes packed in a single box. Before attempting to assemble this machine, follow these directions for unpacking: 1. Carefully cut the banding straps and remove them from the box. 2. Cut along the tape line at the top of the box. 3.

  • Page 18: Assembly

    For your own safety, do not connect the machine to the power source until the machine is completely assembled. Please also make sure that you read and understand the entire instruction manual. ASSEMBLY TIME ESTIMATE; 4 to 5 hours Visit the Laguna Tools Video page for setup assistance. 1.5HP Mobile Dust Cyclone Manual...
  • Page 19 1. Place the empty, top, foam packing insert (which contained the individual parts) upside-down on the floor. Place the main unit into the foam insert upside-down. Make sure the unit is centered properly and resting solidly in the foam insert for the next steps. 2.
  • Page 20 5. Secure the base with (3) lower upright support panels to the unit using (6) 5/16” x 3/4” hex bolts and (6) 5/16” x 1" flat washers. 6. Secure the (3) upright support reinforcement plates using (12) 5/16” x 3/4” hex bolts and (12) 5/16” x 1”...
  • Page 21 9. Secure the lower triangular support plate to the base using (2) 5/16”x3/4” hex bolts and (2) 5/16”x18x2mm flat washers. Follow the same steps for the opposite side. 10. Secure the foot pedal support bracket to the lower upright support panel using (2) 5/16”x1/2”...
  • Page 22 13. Secure the top end of the foot pedal bar to support bracket using (4) 5/16”x1-3/4” hex bolts, (8)5/16”x18x2mm flat washers and (4) 5/16” hex nuts. Make sure the foot pedal bar is pushed all the way to the end of the support bracket (indicated by yellow arrows).
  • Page 23 17. Secure the topping to the nut on the foot pedal bar using (1) M8x30mm hex bolt. Follow this step on the opposite side. 18. Secure the movable supporting Octagon foot pedal brace on the foot pedal bar with the octagon foot peddle using (2) 3/8”x21mm hex bolts.
  • Page 24 21. Attach the full drum detection sensor to the opening on the drum Bottom end of sensor lid located behind the cyclone funnel. When securing the sensor make sure the end of the sensor is shorter than the drum lid rim. If it extends longer passed the rim, sensor detection will not function Inner view of...
  • Page 25 25. Attach the handles to the top and bottom end on the front panel with the window display using (4) flat head Philip bolt, (4) 5/16” x 7/8” flat washers and (4) 5/16” hex nuts. Note that the head of the Philip bolt must be inserted from the handle with the hex nut and washer on the inside of the drum.
  • Page 26 29. Once completing the assembly, keep the drum laying on its side to Silicone apply silicone (not included) to the inside of the drum, including the base and the top rim of the drum before the rubber seal has been attached to seal and prevent air leakages.
  • Page 27 33. Lift the foot pedal bar. Align the Octagon drum window to the center point of the drum lid and push the drum in. Lower the foot pedal bar to seal the drum tight for normal machine operation. 34. Make sure when aligning the drum that both the left and right- side lift plates are over the topping on the foot pedal bar assembly...
  • Page 28 37. Install the intake splitter 6” by 4” x 2 ports to the intake using (3) M4 x 12mm sheet metal screws. Attach the rubber caps to each 4” port. 38. All the assembly steps have been completed. Serial# plate 1.5HP Mobile Dust Cyclone Manual...

  • Page 29: Power Supply

    POWER SUPPLY Power Supply Circuit Requirements The power source circuit for your machine must be g r o u n d e d and r a t e d f o r the a m p e r a g e given below. Never replace a circuit breaker on an existing circuit with one of higher amperage without consulting a qualified electrician to ensure compliance with wiring codes.
  • Page 30 - PDCPF-ACM220V-C → Autoclean capacitor 1.5uF/450VAC - PDCPF15110-220-OV → Overload protector 15A - PLUG, 220 Volt (not available from Laguna Tools, local electrician to supply) Change the wiring within the 1.5HP motor to 220 Volt wiring according to the wiring diagram located on the inside cover of the junction box.
  • Page 31 Use pliers to carefully remove these two electrical connections. The connectors may get damaged if pulled with excessive force. Figure 9: Removing wires Reattach each connector to the 220V location, L1, M1, 220V RED (Fig. 10). Also refer to the electrical diagrams at the end of these instrucions for reference.
  • Page 32 Remove the autoclean motor capacitor (6uF/250VAC) by disconnecting the two yellow connectors and replace it with the auto clean motor capacitor (1.5uF/450VAC). Make sure the two yellow connectors are connected in the same location as shown below. Always connect on the same side. Figure 11: Replacing Capacitor Figure 12: Replacing Capacitor Remove the 25A overload protector from the front control panel by first removing the two connectors.
  • Page 33 Figure 14: Replacing Overload Protector 8. Replace with the 15A overload protector and close the control panel with the four bolts removed in step 1. 9. Open the junction box on the autoclean motor and disconnect the 110V wiring. 110V wiring shown in photo Figure 15: Junction Box Figure 16: 110V Wiring, Junction Box...
  • Page 34 Figure 17: Autoclean Motor Mounting Bolts Figure 18: Autoclean Motor 11. Attach the 220V Autoclean motor by using the four bolts removed in the previous step. 12. Open the junction box of the 220V Autoclean motor and connect the wiring per figures 19 & 20. Close all electrical boxes and test system.

  • Page 35: Operation

    220 Volt Wiring Diagrams (Figures: 21 & 22) OPERATION 1.5HP Mobile Dust Cyclone Manual...

  • Page 36: Maintenance:

    MAINTENANCE CLEANING THE FILTER This PFLUX1 is equipped with auto clean every 10 minutes for 10 seconds one direction and another 10 seconds the other direction. The cleaning will continue for one cycle (10 seconds clockwise, 10 seconds counterclockwise when you shut the machine off. While the canister is cleaning the yellow LED light on the control panel will illuminate showing that it is in the process of cleaning.
  • Page 37 1. Keep your cyclone switched on and operating, open both sides of the Canister filter shield doors. Connect the 4” flex hose from the cyclone to the 4” hook up on the canister end cap. Figure 23: Canister Filter Shield 2.

  • Page 38: Circuit Board Replacement

    ROUTINE INSPECTION It is a good idea to routinely inspect any quality woodworking tool in order to keep it in optimum condition. This includes inspecting all hardware for tightness, ensuring the filter is clean, and cleaning debris and grime from any surfaces and moving parts. CIRCUIT BOARD RELACEMENT READ AND UNDERSTAND ALL WARNINGS AND OPERATING INSTRUCTIONS BEFORE USING THIS EQUIPMENT.
  • Page 39 Use pliers to carefully remove these pins. The connectors may get damaged if pulled by force. Figure 25: Control Box with cover removed Circuit Board mounting screws (4) circled Figure 26: Circuit Board Mounting Screws (4) 1.5HP Mobile Dust Cyclone Manual...
  • Page 40 Remove the old Circuit Board by removing the screws securing the Circuit Board to the Mounting Plate Install the new Circuit Board onto the Mounting Plate within the Control Box using the same mounting screws. Attach all wires to the new Circuit Board according to the 110 Volt wiring diagram, reference below and to your pictures.

  • Page 41: Troubleshooting

    TROUBLESHOOTING Symptom Possible Cause Possible Solution Machine Power supply switched Ensure power supply is ON and does not OFF or is faulty. has the correct voltage. start or a breaker Wall fuse/circuit breaker Ensure adequate circuit size; trips. is blown/tripped. install inlet restrictor, replace weak breaker.
  • Page 42 Loud, Machine is on uneven Stabilize on a flat surface. repetitive surface. noise, or excessive Damaged/Unbalanced Inspect impeller for dents, vibration impeller. bends, loose fins. Replace if coming from needed. cyclone Loose connections. Check and re-tighten all fasteners. Replace the motor and Impeller is loose.
  • Page 43 Exploded Views/Parts Breakdown 山富機械公司 2021.10.14 出圖章 Figure 47: Main unit 1.5HP Mobile Dust Cyclone Manual...
  • Page 44 SECTION A (Close up view) Figure 48: Fan, Motor & Switch 1.5HP Mobile Dust Cyclone Manual...
  • Page 45 SECTION B (Close up view) Figure 49: Cyclone, Canister & Barrel 1.5HP Mobile Dust Cyclone Manual...
  • Page 46 SECTION C (Close up view) Figure 50: Panels & Lock 1.5HP Mobile Dust Cyclone Manual...
  • Page 47 SECTION D (Close up view) Figure 51: Barrel & insert 1.5HP Mobile Dust Cyclone Manual...

  • Page 48: Parts List

    Parts List Part Number Description Part Number Description FLAT WASHER 1 PDCPF15110-1 MOTOR 1.5HP/110V/60Hz/1Ph 9E PDCPF15110-9E 1/4”x13x1mm 1A PDCPF15110-1A MOTOR GASKET 9F PDCPF15110-9F DOOR STOP PLATE 2 PDCPF15110-2 MOTOR SUPPORT BASE 9G PDCPF15110-9G HEX NUT 1/4” TOP UPRIGHT SUPPORT A 2A PDCPF15110-2A HEX LOCK BOLT 5/16”...
  • Page 49 No Part Number Description No Part Number Description OCTAGON DRUM FRONT 11G PDCPF15110-11G SKID BLOCK 16 PDCPF15110-16V2 PANEL V2.2021 FLAT HEAD PHILIPS BOLT 11H PDCPF15110-11H OCTAGON DRUM FOOT PEDAL 16A PDCPF15110-16A 5/16”x3/4” 11J PDCPF15110-11J TOPPING 24x30mm 16B PDCPF15110-16B HANDLE FLAT WASHER 11K PDCPF15110-11K HEX BOLT M8x30mm 16C PDCPF15110-16C...
  • Page 50 No Part Number Description No Part Name Description 18D PDCPF15110-18DV2 CYCLONE FUNNEL V2.2021 24D PDCPF15110-24D LATCH #98 SHEET METAL BOLT 18E PDCPF15110-18E FLAT WASHER 5/16”x18x2mm 24E PDCPF15110-24E 3/16”x3/8” 18F PDCPF15110-18F HEX BOLT 5/16” x 3/4” 24F PDCPF15110-24F HEX NUT 3/16” 18G PDCPF15110-18G FLAT WASHER 5/16”x18x2mm 25A PDCPF15110-25A...
  • Page 51 No Part Number Description No Part Number Description 32 PDCPF15110-32 DRUM INSERT 43G PDCPF15110-43G BUZZER/ALARM 34 PDCPF15110-34 RIVET 44 PDCPF15110-44 PLUG 30x60mm RUBBER HANDLE FOR 34C PDCPF15110-34C RIVET NUT 1/4” 45 PDCPF15110-45 DRUM INSERT 34D PDCPF15110-34D RIVET NUT 5/16” 46 PDCPF15110-46 CONTROL PANDLE HANDLE 35 PDCPF15110-35 SHEET METAL BOLT 3/16”x1/2”...

  • Page 52: Specifications

    SPECIFICATIONS: PFLUX1 Motor Specs: 1.5 HP Electrical Specs: 110V/220V / 60Hz / 1PH / 3450 RPM Running AMP (6” inlet) 18.8A at 110V; 9.4A at 220V Air Volume: 900CFM (cubic feet per minute) Max. static pressure 10.1 Inches of water Fan size 13”...
  • Page 53 Minnesota: 5250 West 74th St, Edina, MN 55439, U.S.A Phone: +1-949-474-1200 DAKE CORPORATION 724 Robbins Road, Grand Haven, MI 49417, United States +1-800-937-3253 LAGUNA EUROPE Walker Rd, Bardon Hill, Coalville LE67 1TU, United Kingdom. Phone: +44-1530-516921 © 2021 Laguna Tools 011222 1.5HP Mobile Dust Cyclone Manual...
