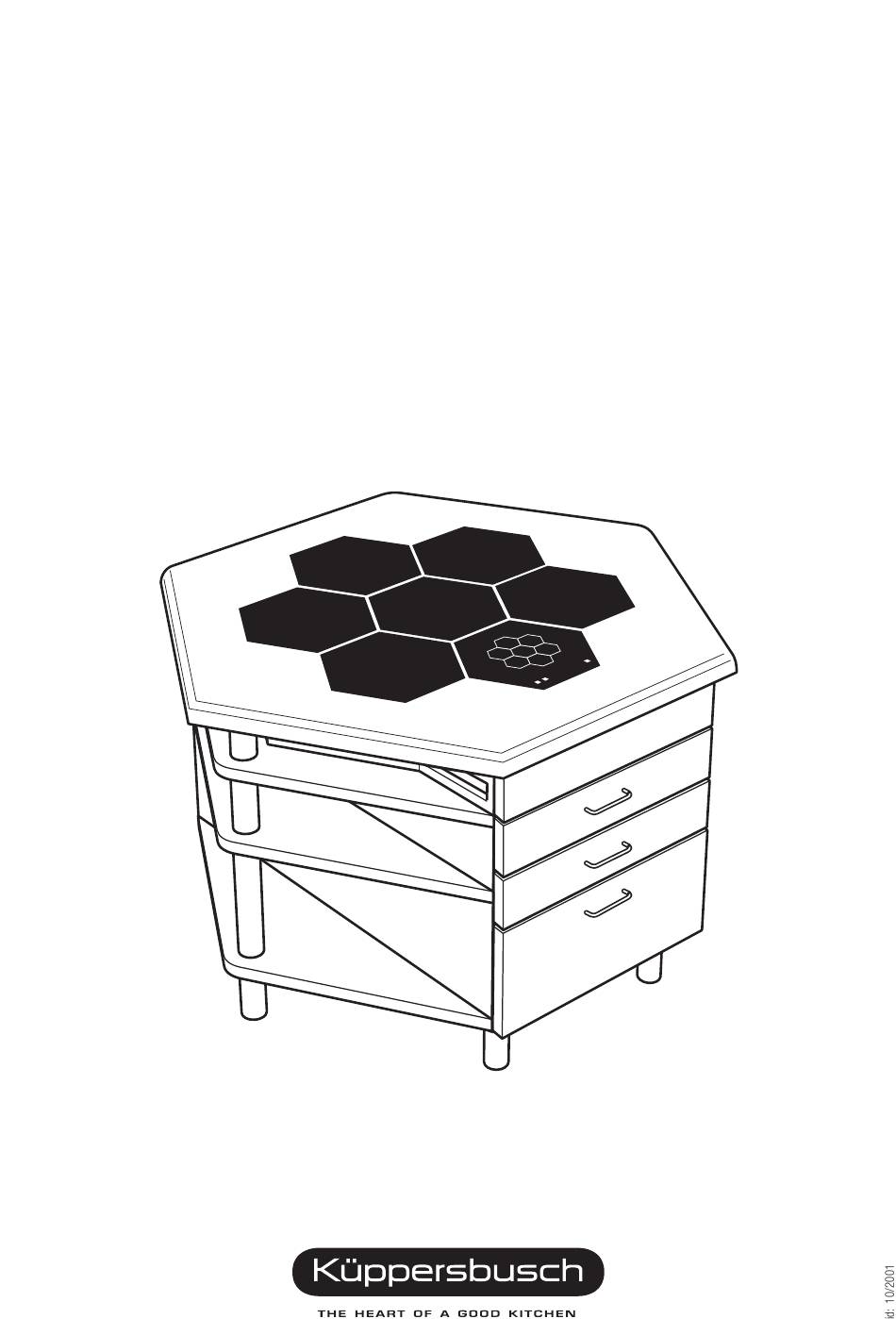

- Page 1 OPERATING AND INSTALLATION INSTRUCTIONS for honeycomb cooking areas with sensor control Series ESW/EKW...
- Page 2 Conditions of guarantee The conditions of guarantee applicable for this product are subjeci to those published by the representative in the relevant country. Details regarding same may be obtained from the dealer from whom the appliance was purchased. For claims under guarantee the sales receipt must be produced.
-
Page 3: Table Of Contents
Contents Safety instructions ........4 for connection and functions ........for the cooking zones . -
Page 4: Safety Instructions
Safety instructions for connection and functions for the cooking zones Overheated fat and oil may ignite spontaneously. Food Küppersbusch cookers are manufactured in accordance cooked in fat and oil, e.g. chipped potatoes, should not be with the applicable safety regulations. left unattended. -
Page 5: What To Do Before Using The Appliance For The First Time
What to do before using the appliance for the first time Advice on the right type of saucepans Remove excess materials and packaging. Before preparing Only use pots and pans with a flat, smooth base. food for the first time, clean the honeycomb hob with a Saucepans with concave bases take considerably damp cloth and a small amount of washing up liquid. -
Page 6: Sensor Operation Of The Control Honeycomb
Sensor operation of the control honeycomb As you can individually select the number and position of A sensor honeycomb can control up to 6 honeycomb the honeycomb cooking zones, the sensor honeycombs also cooking zones. If more than 6 honeycomb cooking zones have to conform to the configuration you design. -
Page 7: Switching On The Appliance
Switching on the appliance Touch the ON-OFF pad for about 2 seconds. A vertical bar will light up above the lock pad (sensor lock). The appliance is now ready to be put into operation (standby mode). Each cooking zone can now be controlled individually. 2 secs. -
Page 8: Cooking With The Automatic Boost Function
Cooking with the automatic boost function Touch the minus pad. The cooking zone switches on at setting 9 and the automatic boost function is activated. Now turn the heat down to the required setting. When the auto- matic boost has finished, the cooking zone automatically switches back to the selected setting. -
Page 9: Activating The Childproof Lock
Activating the childproof lock The childproof lock, which consists of a key and a lock sensor, can be used to protect the appliance against un- authorised use by locking the settings. In order to use the childproof lock the hob must be switched on. First of all, touch the key pad until you hear an acoustic signal. -
Page 10: The Minute Minder
The minute minder The minute minder has two purposes: to switch off func- tions and to serve as a reminder. It can be set for a maxi- mum of 99 minutes. It is activated by touching the plus pad or the minus pad. The time can be set by touching the plus pad (starting at 0) and the minus pad (starting at 99). -
Page 11: The Residual Heat Display
The residual heat display Each cooking zone has its own residual heat display. When the cooking zone has been switched off an “H” will appear in the display for the cooking setting for about 30 minutes. The residual heat display also remains on even after the control honeycomb has been switched off. -
Page 12: Cleaning And Caring For Your Appliance
Cleaning and caring for your appliance Never use abrasive cleaning agents! It is usually sufficient to clean the appliance each time af- ter use, using a damp cloth and a little washing up liquid. Then wipe dry. Food which has boiled over and become encrusted should first be softened with a wet cloth. -
Page 13: The Honeycomb Dimensions At A Glance
The honeycomb dimensions at a glance Honeycomb cooking element EKW 307.0 / 306.0 / 306.1 1 , 5 Glass ceramic panel Silicon bonding compound 33,6 Metal support 6,5 ± 0,15 mm Ø 244 Metal base panel Cable clamp R* = 10 Honeycomb sensor control element ESW 308.6 1 , 5 Glass ceramic panel... -
Page 14: Cutting An Opening In The Worktop
Cutting an opening in the worktop Cutting an opening in worktops made of wood or synthetic materials The opening is cut in two steps. First cut an opening for the heating or control element and then the recess for the hob. –... -
Page 15: The Opening For The Heating Element Controls
The opening for the heating element controls If several honeycomb cooking zones are to be combined, The cutouts for the undertrays of EKW 307.1/306.1/306.0 the webs and nodes created by the cutouts must be pre- should always point outwards and never inwards towards served. -
Page 16: Cutting An Opening In Worktops Made Of Stone
Cutting an opening in worktops made of stone The ceramic surface can be built into stone worktops in such a way that it is completely flush. Note: As with worktops of wood, the worktop opening can be milled out instead of being cut out and bonded in place. First cut the shape of the honeycomb combination out of the Make the openings for the undertrays of the honeycombs worktop in one piece. -
Page 17: Bonding The Honeycomb Cooking Zones In Place
Bonding the honeycomb cooking zones in place To prevent damage to the worktop or the honeycomb hob, First, apply the barrier primer to the fitting surfaces of the honeycombs and all cut surfaces of the worktop to approx. it is essential for the worktop/honeycomb system to be bon- 1 mm beyond the edge of the cut. -
Page 18: Electrical Connection
Electrical connection The appliance should only be connected up to the mains by a qualified and authorised electrician. The statutory regulations and the conditions for connection of your local electricity board must be observed to the letter. During installation, the control honeycomb must be disconnected from the mains. When the appliance is connected up to the mains, it must be ensured that there is a device which makes it possible to disconnect it from the mains at all poles with a contact opening width of at least 3 mm. -
Page 19: Connecting The Cooking Honeycombs To The Built-In Oven Or Control Element
Connecting the cooking honeycombs to the built-in oven or control element Three different adapters are available to connect the honey- The honeycomb cooking zones can also be connected to a comb cooking zones to the oven, depending on the layout of Küppersbusch built-in oven or a Küppersbusch control the cooking zones: element.
