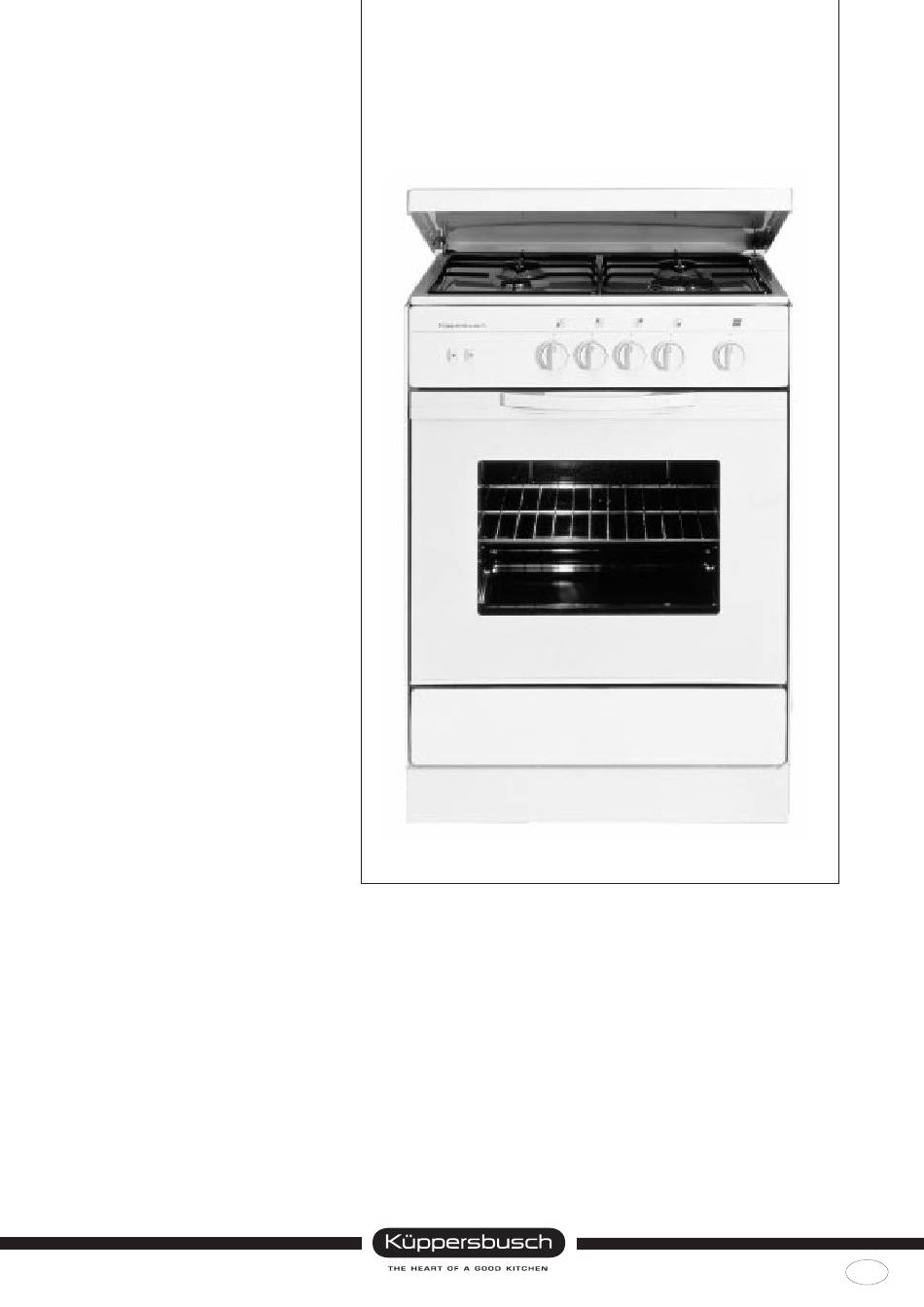

  • Page 1 Gas cookers 606.0 E 506.0 E 505.0 E GKH 507.0 E...
  • Page 2 Technical manual: H2-120-61-01 Responsable: Kirchmaier Küppersbusch Vertriebsges. mbH Tel.: (0209) 401-718 Kundendienst Fax: (0209) 401-743 Postfach 100 132 Date: 27.07.1998 45801 Gelsenkirchen...

  • Page 3: Table Of Contents

    Technical manual GH 606.0 E/GH 506.0 E/GH 505.0 E/GKH 507.0 E Contents 1. Your appliance at a glance ......................4 1.1 GH 606.0 E..........................4 1.2 GH 506.0 E..........................5 1.3 GH 505.0 E..........................6 1.4 GKH 507.0 E .........................7 2. The individual functions ......................8 2.1 GH 505.0 E..........................8...

  • Page 4: Your Appliance At A Glance

    Technical manual GH 606.0 E/GH 506.0 E/GH 505.0 E/GKH 507.0 E 1. Your appliance at a glance 1.1 GH 606.0 E Electric ignition Cooking area control knobs Simmering burner Thermostat control knob for oven Aeration slits Control panel Normal burner...

  • Page 5: Gh 506.0 E

    Technical manual GH 606.0 E/GH 506.0 E/GH 505.0 E/GKH 507.0 E 1.2 GH 506.0 E Thermostat control knob for oven Electric ignition Cooking zone control knobs Switch for oven light Simmering burner Control panel Aeration slits Grill Normal burner Shelves...

  • Page 6: Gh 505.0 E

    Technical manual GH 606.0 E/GH 506.0 E/GH 505.0 E/GKH 507.0 E 1.3 GH 505.0 E Thermostat control knob for oven High-speed burner Cooking zone control knobs Switch for oven light Simmering burner Control panel Aeration slits Shelves Normal burner Ignition hole for oven burner...

  • Page 7: Gkh 507.0 E

    Technical manual GH 606.0 E/GH 506.0 E/GH 505.0 E/GKH 507.0 E 1.4 GKH 507.0 E Electric ignition Oven temperature controller Simmering burner Oven selector switch Aeration slits Control panel Normal burner Top heat High-speed burner Grill Pilot light (yellow) Hot air fan...

  • Page 8: The Individual Functions

    Technical manual GH 606.0 E/GH 506.0 E/GH 505.0 E/GKH 507.0 E 2. The individual functions 2.1 GH 505.0 E 2.1.1 Selecting the mode and temperature Set the oven temperature to the value you want with the thermostat control knob for the oven.
  • Page 9 Technical manual GH 606.0 E/GH 506.0 E/GH 505.0 E/GKH 507.0 E 2.1.3 Igniting the oven burner and setting the temperature With the oven door open, press the thermostat control knob for the oven lightly, turn fully counterclockwise and keep depressed.

  • Page 10: Gh 505.0 E / Gh 606.0 E

    Technical manual GH 606.0 E/GH 506.0 E/GH 505.0 E/GKH 507.0 E 2.2 GH 506.0 E / GH 606.0 E 2.2.1 Selecting the mode and temperature Set the oven temperature to the value you want with the thermostat control knob. The temperature settings are indicated on the knob.
  • Page 11 Technical manual GH 606.0 E/GH 506.0 E/GH 505.0 E/GKH 507.0 E 2.2.3 Igniting the oven burner and setting the temperature With the oven door open, press the thermostat control knob lightly, turn fully counterclockwise and keep depressed. Activate the electric ignition with the pushbutton.

  • Page 12: Gkh 507.0 E

    Technical manual GH 606.0 E/GH 506.0 E/GH 505.0 E/GKH 507.0 E 2.3 GKH 507.0 E 2.3.1 Selecting the mode and temperature For using the oven, the oven selector switch and the oven temperature controller (see illustration) have to be activated.
  • Page 13 Technical manual GH 606.0 E/GH 506.0 E/GH 505.0 E/GKH 507.0 E 2.3.3 Baking Notes on baking Hot air No pre-heating - Baking on several levels possible at the same time. Shelf levels: 1 tray level from the bottom 2 trays...

  • Page 14: Appliance Connection And First Use

    Technical manual GH 606.0 E/GH 506.0 E/GH 505.0 E/GKH 507.0 E 3. Appliance connection and first use 3.1 Gas connection The connection must be made in accordance with this manual and the technical regulations for gas installations (DVGW+TRGI) or the technical regulations for LPG (TRF).

  • Page 15: Checking The Heat Load For Lpg

    Technical manual GH 606.0 E/GH 506.0 E/GH 505.0 E/GKH 507.0 E 3.4 Checking the heat load for LPG Check whether the designation of the injectors used matches the manufacturer’s details. Check by examining the nameplate or measuring the pressure whether the built-in pressure controller has the outlet pressure intended for the type of gas (see Gas connection).

  • Page 16: General Technical Information

    Technical manual GH 606.0 E/GH 506.0 E/GH 505.0 E/GKH 507.0 E 4. General technical information Model GH 606.0 E GH 506.0 E GH 505.0 E GKH 507.0 E Heating Gas/Gas Gas/Gas Gas/Gas Gas/Electric Previous model GFZ 243 GFZ 143 G 143...
  • Page 17 Technical manual GH 606.0 E/GH 506.0 E/GH 505.0 E/GKH 507.0 E – Gas connection on left and right about 550 mm from lower edge of appliance – ½" with seal approx. 40 mm from side wall – Appliance height adjustment with 20 mm long screw feet –...

  • Page 18: Injector Tables

    Technical manual GH 606.0 E/GH 506.0 E/GH 505.0 E/GKH 507.0 E 5. Injector tables Space Nat. gas E Space Nat. gas LL Space GH 606.0 E Hs 125.81 MJ/m³ Hs 37.78 MJ/m³ Hs 32.49 MJ/m³ 50 mbar (mm) 20 mbar...

  • Page 19: Changing And Setting The Burner Injectors

    Technical manual GH 606.0 E/GH 506.0 E/GH 505.0 E/GKH 507.0 E 6. Changing and setting the burner injectors 6.1 Cooking zone burners To replace the injectors of the cooking zone burners, the cooker hob must be lifted out. To this end proceed as follows: Pull cover plate A upwards and remove.

  • Page 20: Adjusting The Low-Setting Screws

    Technical manual GH 606.0 E/GH 506.0 E/GH 505.0 E/GKH 507.0 E 6.3 Adjusting the low-setting screws Ignite burner and turn control knob to low setting. Pull control knob out, insert screwdriver into the slit and turn to the right or the left until the flame is at the correct low setting.

  • Page 21: Dismantling The Housing Parts

    Technical manual GH 606.0 E/GH 506.0 E/GH 505.0 E/GKH 507.0 E 7. Dismantling the housing parts 1. Dismantling the hob: Lift off cover plate, ribbed plates and burners. Unscrew cover plate guides L + R (B). Pull hob forwards and flap up (D).
  • Page 22 Technical manual GH 606.0 E/GH 506.0 E/GH 505.0 E/GKH 507.0 E Removing the oven door Open oven door completely. Flap up the brackets on the door hinges. Grip the oven door with both hands at the sides and slowly close. The hinges become detached from their catches when the door is roughly half-closed.

  • Page 23: Dismantling The Parts

    Technical manual GH 606.0 E/GH 506.0 E/GH 505.0 E/GKH 507.0 E 8. Dismantling the parts 8.1 Oven door a) Dismantling handle After undoing the 3 fastening screws (1a), the door handle (1b) and the 4 rubber pads stuck to the door handle can be removed.

  • Page 24: Oven Internals

    Technical manual GH 606.0 E/GH 506.0 E/GH 505.0 E/GKH 507.0 E 8.2 Oven internals a) Oven light The light cover flap (1) is screwed into the lamp housing. The oven light (2) E 14 (15 W) is screwed in. The entire oven light housing (3) is hooked into the opening in the oven chassis and can be removed by levering it out of the oven chassis.
  • Page 25 Technical manual GH 606.0 E/GH 506.0 E/GH 505.0 E/GKH 507.0 E c) Gas tap cooking zone Flap up hob, unscrew thermocouple (1) on the gas tap, pull off control knob with spring and indicator ring (2). Unscrew union nut (3) on the gas tap.

  • Page 26: Electric Spark Ignition

    Technical manual GH 606.0 E/GH 506.0 E/GH 505.0 E/GKH 507.0 E 8.4 Electric spark ignition a) Ignition transformer Flap up hob. Pull connection cable off ignition transformer (primary + secondary) Undo fastening screws (2). Replace transformer. b) Ignition switch Flap up hob. Pull connection cable off the switch (1).

  • Page 27: Electric Oven

    Technical manual GH 606.0 E/GH 506.0 E/GH 505.0 E/GKH 507.0 E e) Spark plug for grill Pull off ignition cable (4) Unscrew nut (2). Pull spark plug (1) out of holder (3) and install in reverse sequence. 8.5 Electric oven...
  • Page 28 Technical manual GH 606.0 E/GH 506.0 E/GH 505.0 E/GKH 507.0 E metal screws (2). Remove impeller with nut and undo screws (4) from the oven interior. Unscrew appliance rear, detach cable from motor and remove motor. Assemble in reverse sequence.

  • Page 29: Wiring Diagrams

    Technical manual GH 606.0 E/GH 506.0 E/GH 505.0 E/GKH 507.0 E 9. Wiring diagrams 9.1 GH 505.0 E Switch oven light Oven light Terminal block T0/T3 Earthing system 9.2 GH 606.0 E Switch ignition Switch oven light Oven light Terminal block...
  • Page 30 Technical manual GH 606.0 E/GH 506.0 E/GH 505.0 E/GKH 507.0 E 9.3 GH 506.0 E Switch ignition Switch oven light Oven light Terminal block Ignition transformer Electrode Oven electrode Grill electrode T0/T3 Earthing system For internal use only...
  • Page 31 Technical manual GH 606.0 E/GH 506.0 E/GH 505.0 E/GKH 507.0 E 9.4 GKH 507.0 E Switch ignition Oven thermostat light Oven light Terminal block Ignition coil Electrode Oven electrode Grill electrode T0/T3 Earthing system Top heat Grill Hot air heater...
