SuperCloset SuperPonics Super Flow Manual

Hydroponics system
Hide thumbs

Advertisement

Table of Contents

S U P E R F L O W
BY

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SuperPonics Super Flow and is the answer not in the manual?

Questions and answers

Related Manuals for SuperCloset SuperPonics Super Flow

Summary of Contents for SuperCloset SuperPonics Super Flow

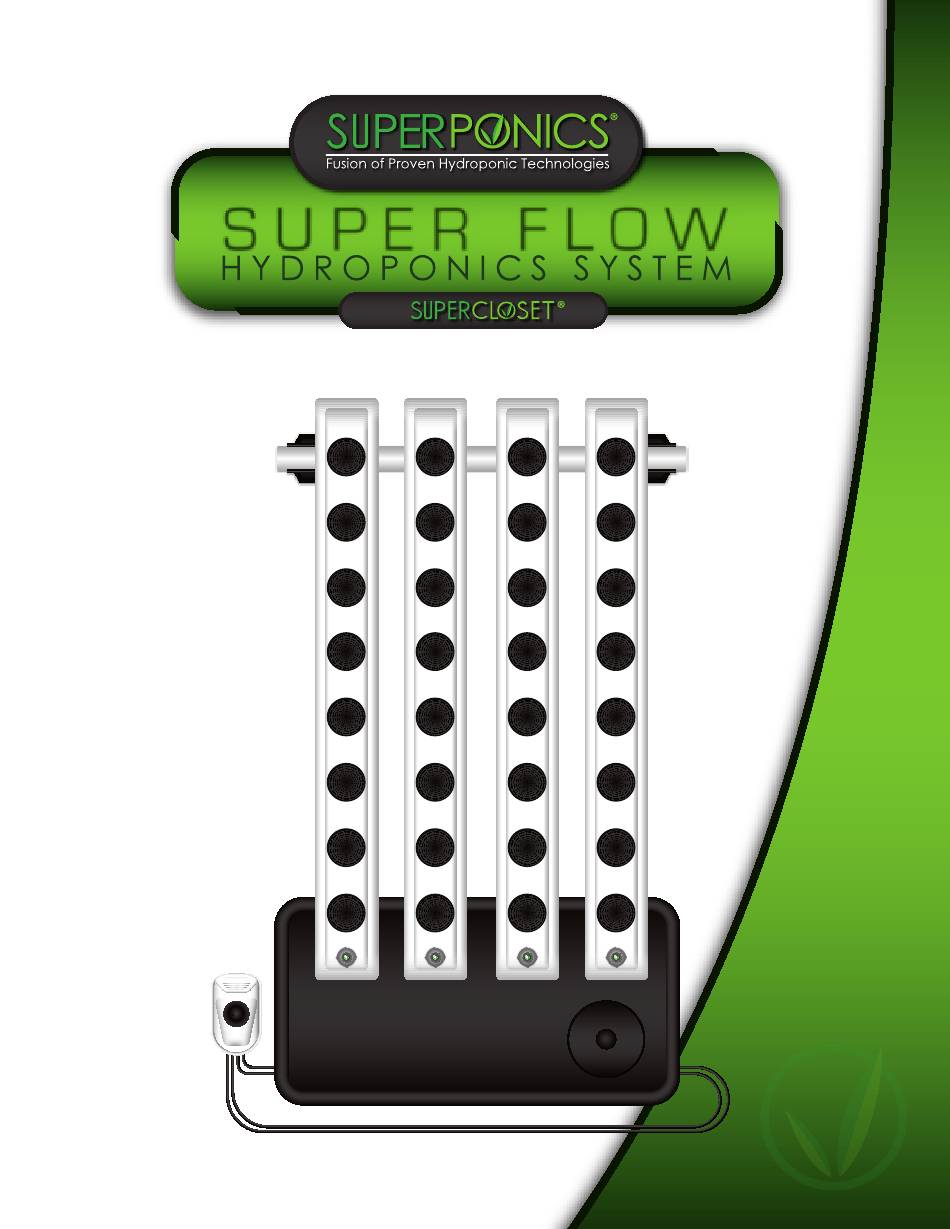

  • Page 1 S U P E R F L O W...

  • Page 2: Water Pump

    Congratulations and thank you for choosing SuperPonics ® You now have the world's finest hydroponic system. These instructions will guide you through the process of setting up your Super Flow. Please read through the entire instruction manual before you begin, including any and all instructions that come with the individual components.
  • Page 3 COMPONENTS SIZES WILL VARY BASED ON SYSTEM PURCHASED GROW TUBE GROW TUBE RESERVOIR RESERVOIR AIR PUMP NET CUPS AIR STONES AIR PUMP AIR PUMP TUBING NET CUPS AIR STONES AIR PUMP TUBING WATER PUMP WATER PUMP WATER PUMP MANIFOLD TRAY STANDS & CROSS BAR WATER PUMP MANIFOLD TRAY STANDS &...

  • Page 4: Unpacking The System

    UNPACKING THE SYSTEM Carefully unbox your SuperPonics system. Remove ® all contents from inside the Reservoir as well. Prior to setup, make sure you have all of the necessary components by cross referencing with the QAC (Quality Assurance Checklist). Take this time to familiarize yourself with each of the components.
  • Page 5 SET UP Your SuperFlow comes with a main Reservoir that can be placed toward one side of the system or in the middle of the system, depending on your setup preference. If setting up with all Grow Tubes on If setting up with Grow Tubes on one side, place the Reservoir on both sides, place the Reservoir in the desired side of your grow area.
  • Page 6 SET UP Remove the lid from the Reservoir and set it aside for now. Notice the channels located on the rim of the Reservoir. These channels will be for the placement of your Air Pump Tubing and Water Pump power cord. Locate the four gray Air Stones included in your shipment.
  • Page 7 SET UP 1/2” FITTING Unpack the Water Pump and follow 1/2” FITTING the instructions for inserting the ½” fitting on the top of the pump where threads are visible. Once this ½” fitting is installed, connect the ½” fill lines with the four ends facing up.

  • Page 8: Access Port

    SET UP Assemble your Tube Supports and place where the ends of your Grow Tubes will be. make sure your fittings are firmly seated ACCESS PORT ACCESS PORT Locate your Grow Tubes. Notice the tub fittings protruding out of the bottom on one end of each tube.
  • Page 9 SET UP GROW TUBE GROW TUBE Reach into the Reservoir through the access port and attach the ½” fill lines to the ½” tube fitting ends (one on each tube). Now attach the 4” long pieces of ¾” tubing onto the ¾” tube fitting ends.
  • Page 10 SET UP Fill the Reservoir with your pH balanced water and nutrient mix to the point where the water level is just a few inches beneath the top of your Plug your water pump into the included timer and set for 15 minutes ON every 1-3 hours, depending on the stage of growth.
