NENKO 22612130 Quick Start Manual

1. Name of the product

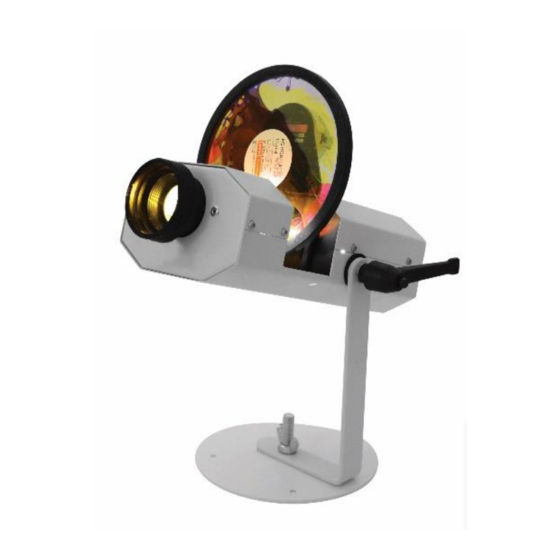

LED 100 Projector including wheel motor
2. Product code
22612130
3. Color
As shown.
4. Short description
The 100 LED projector is compact and portable. Suitable for use in professional snoezel rooms as well
as bedrooms and living rooms. LED lighting with low heat output and virtually maintenance-free.
Comes with magnetic wheel motor. Can be used with a Preposition prism, Panorama rotor, Wheel
motors and Multi-facet mirror. 12 Volts. Weight: 1.85 kg. With 85 mm lens.
5. Content
1x LED100 Projector
1x Wheel motor
1x 12V DC Transformer with 1.5 meter cord.
6. Sensory stimulations
See
7. Start using
Read this instructions for use before start using. Choose a suitable spot for the projector taking into
account the following:
This product needs a grounded socket, in accordance with the specifications on the projector.
Make sure the projector is projected on a light surface without obstacles.
Do not place the projector at an angle of more than 90⁰, this may cause the effect and liquidwheel or
other accessories to fall out of the projector at risk of damage and/or injury.
Free ventilation must be possible around the projector, especially at the ventilation grille.
Do not place the projector too close to heat sources such as a radiator.
This product is for the purpose of visioning, and does not need to be touched other than to turn it on
and off. However, it may be necessary to touch the projector in the meantime to be able to change
effect or liquidwheels.
Attach the projector to a stable location that can support the weight of the projector and
accessories, even if the projector falls. For standing placement, use a central bolt and nut (min. 14
mm e.g. M10x20mm) and fix the bracket with at least 2 screws eg 2x 40 mm (no wood screws). If you
want to hang the projector, we advise you to use confirmation set ST1SI (to be ordered separately).
Secure the projector using a safety cable or chain to a fixed object.
