T-BERD/MTS 4000 Handheld Modular Test Set
QUICK CARD
4100-series OTDR Expert OTDR Settings
This quick card describes how to connect to a fiber under test and use the Smart Test
Assistant to configure test setups, run tests, and analyze results on a VIAVI T-BERD/MTS
4000 equipped with a 4100-series OTDR module.
E Q U I P M E N T R E Q U I R E M E N T S
► T-BERD/MTS 4000 equipped with the
following:
•
Fiber Optics Software Release V21.14 or
greater
•
4100 Series OTDR Module
•
Fiber optic cleaning and inspection tools
► Minimum 20-meter Fiber optic patch cable
(Launch Cable)
► Optical Coupler to connect Launch Cable to
Fiber Under Test
F I B E R I N S P E C T I O N G U I D E L I N E S
► Use the VIAVI P5000i or FiberChek Probe
microscope to inspect both sides of every
connection being used (OCC Port, Launch
Cable, bulkhead connectors, patch cables, etc.)
► Focus fiber on the screen. If dirty, clean the
end-face.
► If it appears clean, run inspection test.
► If it fails, clean the fiber and re-run inspection
test. Repeat until it passes.
T-BERD/MTS-4000 Handheld Modular Test Set

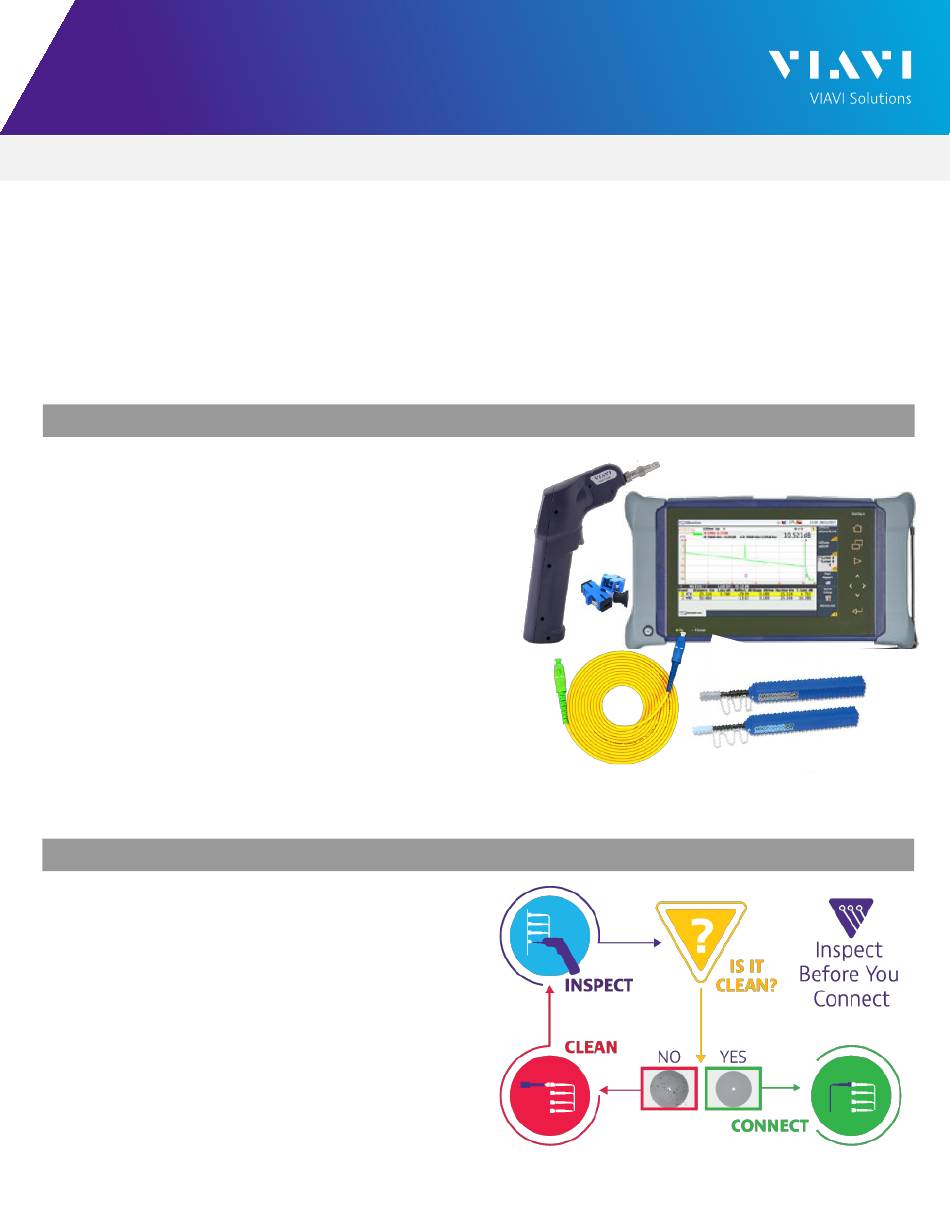

Figure 1: Equipment Requirements
Figure 2: Inspect Before You Connect
