T-BERD/MTS 2000 Handheld Modular Test Set
QUICK CARD
Tuning and Testing DWDM Optics with the Nano OSA
This quick card describes how to tune and test DWDM Optical transceivers using a
T-BERD/MTS-2000 equipped with a Nano OSA module.
E Q U I P M E N T R E Q U I R E M E N T S
► T-BERD/MTS 2000 equipped with the
following:
•
Fiber Optics Software Release V21.14 or
greater
•
Nano OSA Module
(OCV-4100 or OSA-4100 )
•
41SFP Software Option
•
Fiber optic cleaning and inspection tools
► Fiber optic patch cable or Launch Cable
► Optical Coupler to connect patch cable to
Fiber Under Test
F I B E R I N S P E C T I O N G U I D E L I N E S
► Use the VIAVI P5000i or FiberChek Probe
microscope to inspect both sides of every
connection being used (Nano OSA Port,
Launch Cable, bulkhead connectors, patch
cables, etc.)
► Focus fiber on the screen. If dirty, clean the
end-face.
► If it appears clean, run inspection test.
► If it fails, clean the fiber and re-run inspection
test. Repeat until it passes.
T-BERD/MTS-2000 Handheld Modular Test Set

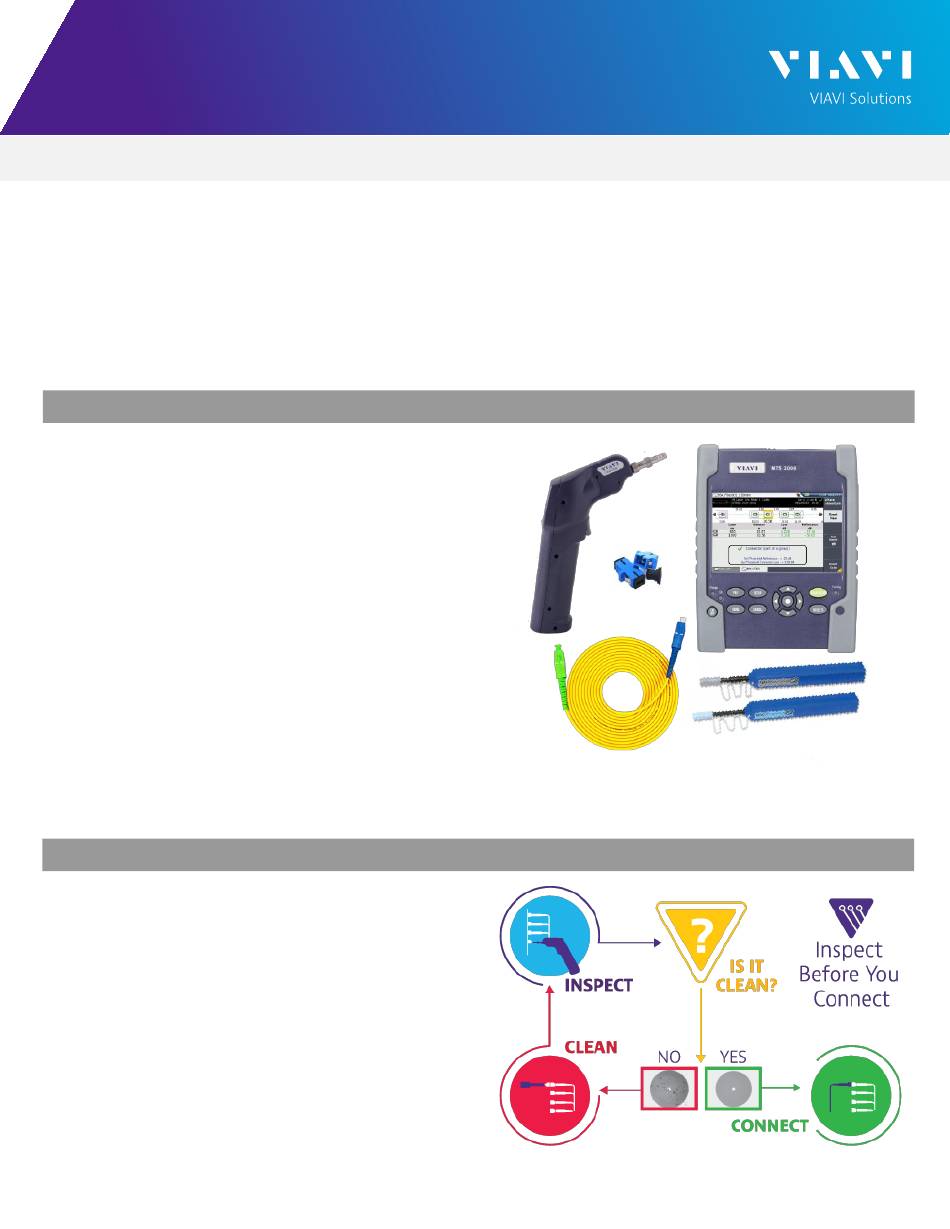

Figure 1: Equipment Requirements
Figure 2: Inspect Before You Connect
