  • Page 1 SOHORAID SR4 Series (NO SATA) User Manual...

  • Page 2: Table Of Contents

    SR4 Series User Manual » SafeTANK SR4 Series (NO SATA) User Manual..1 1. Environmental Requirements ..................1 2. Package Contents and Product Views ..............1 3. Hardware Requirements and Precautions ..............3 4. Hardware Installation Procedure ................4 5. Description of Front Panel Operation and LCD Information ........5 6.

  • Page 3: Safetank Sr4 Series (No Sata) User Manual

    » SafeTANK SR4 Series User Manual Introduction Thank you for choosing the STARDOM product. This manual will familiarize you with the STARDOM SR4 product. We recommend reading through this manual before using the STARDOM SR4 product. The information provided in this manual was checked before publication, but the actual product specifications may have changed before shipping;...

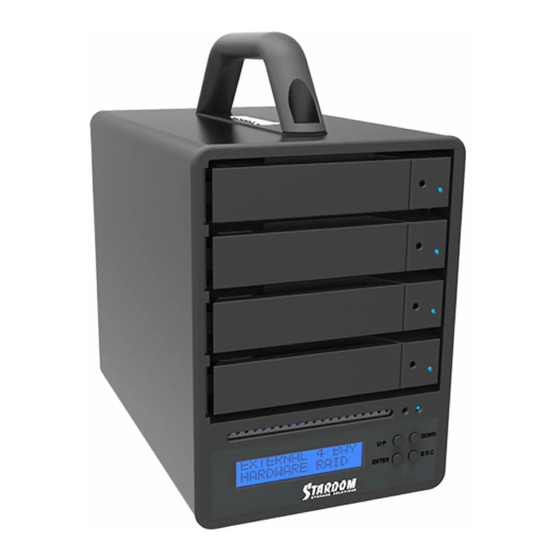

  • Page 4 SR4 Series User Manual Product View Front View A. HDD access light B. HDD enclosure handle C. HDD enclosure pin release D. LCM display E. Power touch switch F. System status light G. UP button H. DOWN button I. ESC button J.

  • Page 5: Hardware Requirements And Precautions

    Stardom will not be responsible for any lost of data caused during the use of the unit or the recovery of the data lost.

  • Page 6: Hardware Installation Procedure

    SR4 Series User Manual 4. Hardware Installation Procedure Please follow the instructions below to complete the hardware installation. Step 1 Place the system on a stable surface. Ensure that it is well ventilated without blockage to the vent and kept away from areas near water and damage prone areas. Step 2 Use the ejector pin included in the accessory kit and inserted into the pin release opening to eject the removable drive tray latch and extract the removable drive tray.

  • Page 7: Description Of Front Panel Operation And Lcd Information

    SR4 Series User Manual 5. Description of Front Panel Operation and LCD Information Front Panel Operation: Enter: Enter: Enter to next level or Confirm Esc: Back to next level or Cancel Up / Down: Select Items Users can set the RAID mode using the LCD and buttons on the front. The default is JBOD mode. Using “Quick Setup”...
  • Page 8 SR4 Series User Manual The following is the display status set for the first time: Level 0 Level 1 EXTERNAL 4 BAY ═ ═ Main Menu ═ ═ HARDWARE RAID Quick Setup P7~8 ═ ═ Main Menu ═ ═ Disk Manager ═...
  • Page 9 Note 2. If user forgot the password, it will not be allowed to access the data from the storage or write new data into it. STARDOM will not be held liable for the damage or loss of data you stored on the storage.
  • Page 10 SR4 Series User Manual Level 1 Level 2 ═ ═ Main Menu ═ ═ Disk Manager : Disk Manager Identify Disk Disk Manager : Show Disk Info...
  • Page 11 SR4 Series User Manual Level 2 Level 3 Level 4 Disk Manager : Disk Manager : Identify Disk Disk 1 Disk Manager : Disk 2 Disk Manager : Check Disk LED Disk Manager : Disk 3 Disk Manager : Disk 4 Disk Manager : Select Disk : Show Disk Info...
  • Page 12 SR4 Series User Manual Level 1 Level 2 ═ ═ Main Menu ═ ═ RAID Manager : RAID Manager Identify RAID RAID Manager : Create RAID RAID Manager : Delete RAID RAID Manager : RAID Info RAID Manager : Change RAID Pwd. RAID Manager : Rebuilding Priority...
  • Page 13 Note 2. If user forgot the password, it will not be allowed to access the data from the storage or write new data into it. STARDOM will not be held liable for the damage or loss of data you stored on the storage.
  • Page 14 SR4 Series User Manual Level 2 Level 3 Level 4 RAID Manager : Select Priority : Select RAID : Rebuilding Priority Medium Level Select Priority : Low Level Select Priority : Lowest Level Select Priority : Highest Level Select Priority : High Level...
  • Page 15 SR4 Series User Manual Level 1 Level 2 ═ ═ Main Menu ═ ═ System Manager : System Manager System Info. System Manager : Changhe Password System Manager : Logout From Menu System Manager : Alarm Control System Manager : Hardware Monitor...
  • Page 16 Note 2. If user forgot the password, it will not be allowed to access the data from the storage or write new data into it. STARDOM will not be held liable for the damage or loss of data you stored on the storage.
  • Page 17 SR4 Series User Manual Level 3 Level 4 Level 5 System Manager : Hardware Monitor 3.3V/5V/12V Voltage: Hardware Monitor Voltage Monitor xxxxV Hardware Monitor Temperature: Temp. Monitor xx degrees Hardware Monitor FAN Speed: FAN Monitor xxxx RPM FAN Level: LEVEL x...

  • Page 18: Support Displayport

    SR4 Series User Manual 6. Support DisplayPort 1. The SR4 offers a DisplayPort support DP1.1a, provides up to 4K@30Hz resolution , and is compatible with monitor and cables with DisplayPort. 2. By using third-party's DisplayPort adapter, it can be connected to the monitor with Mini DisplayPort interface.

  • Page 19: Replacement Of Malfunctioning Drive And Data Rebuild Instructions

    Check and see if the overall operation environment is well ventilated and make sure there are no blockages to the enclosed fan and then re-power on the system to continue use. If the problem persists, please turn off the system and contact your supplier or the STARDOM tech support for further assistance.

  • Page 20: Safetank Sr4 Series ( 無 Sata) 產品使用說明

    SR4 Series User Manual 關於這份手冊 感謝您使用 STARDOM 的產品。本手冊將介紹 STARDOM SR4 產品。在您開始使用 STARDOM SR4 產品前，建議您先閱讀過本手冊。手冊裡的資訊在出版前雖已被詳細確認，實際產品規格仍將以出貨 www.STARDOM.com.tw 時為準；任何產品規格或相關資訊更新請您直接到 網站查詢，本公司將不另 行通知。若您想獲得 STARDOM 最新產品訊息、使用手冊、韌體 , 或對 STARDOM 產品有任何疑問， www.STARDOM.com.tw 請您聯絡當地供應商或到 取得相關訊息。 本手冊相關產品內容歸銳銨科技股份有限公司版權所有 1. 環境需求 工作溫度：0 ~ 40 ℃ (32 ~ 104 ℉ ) 儲存溫度：-20 ~ 47 ℃ (-4 ~ 116 ℉ ) 相對濕度：5% 至...
  • Page 21 SR4 Series User Manual 正面與背面示意圖 正面圖 A. 硬碟讀取燈 B. 硬碟抽取盒把手 C. 硬碟抽取盒頂針孔 D. 液晶顯示器 E. 電源觸碰開關 F. 系統指示燈 G. UP 按鍵 H. DOWN 按鍵 I. ESC 按鍵 J. ENTER 按鍵 背面圖 K. 風扇 L. 靜音開關 M. Display 埠 N. USB 3.1 連接埠 O.

  • Page 22: 硬體需求與注意事項

    5. SR4-B31+/SR4-BA31+ 的 PD 功能，最多僅能提供 24W ，主要在延長 Notebook 的使用時間，與 原本 Notebook 電源供應器的瓦數有落差，以 Macbook Pro 13" 為例，電源供應器為 60W，假設使 用原本的電源供應器充飽電需要 2 小時，透過 SR4-B31+/SR4-BA31+ 大約會需要 3 倍的時間。因 此如果需要長時間使用 Notebook ，建議先接上 Notebook 原本的電源供應器後再接上 SR4-B31+/ SR4-BA31+。 6. 當您需要關閉或移除 SR4 時，務必透過您所操作的作業系統中執行硬碟安全移除後，方進行電源 關閉的動作。 7. 強烈建議除了使用 SR4 的資料儲存功能外，請針對重要資料備份到另一個儲存裝置上或遠端備份， 雙重備援您重要的資料。若您儲存在 SR4 的資料損毀或遺失，STARDOM 將不負任何的責任。...

  • Page 23: 硬體安裝

    SR4 Series User Manual 4. 硬體安裝 請參照以下步驟完成硬體安裝 步驟 1 將主機置放於平穩空間上，並確認散熱風扇沒有被擋住，且四周有適當的散熱空間。 ( 請避免 接近水源或是其他容易造成產品損傷的環境 ) 步驟 2 請使用配件中所附的頂針插入硬碟抽取盒頂針孔，開啟硬碟抽取盒把手便將抽取盒取出。 步驟 3 安裝 3.5 吋硬碟，請使用 6 顆零件包內附的大顆螺絲加以固定；安裝 2.5 吋硬碟，請使用 4 顆 零件包內附的小顆螺絲加以固定。 步驟 4 硬碟安裝完成後，請將抽取盒平移放入主機內，並關上把手。 注意：不建議使用不同廠牌，或是同廠牌不同型號的硬碟，避免影響效能。 步驟 5 將電源線與 SR4 連接，再將電源線與電源插座連接。 步驟 6 將...

  • Page 24: 前面板操作及 Lcd 訊息說明

    SR4 Series User Manual 5. 前面板操作及 LCD 訊息說明 前面板操作 ： ENTER : 進入下一層 或是 確認 ESC : 跳回上一層 或是 取消 UP / DOWN : 循序選擇項目 使用者可經由面板進行 RAID 操作，SR4 預設值為 JBOD， 可進入 Quick Setup 快速設定成 RAID 0 或是 RAID 5 模式使用 如需進行其他設定，則可參考下列...
  • Page 25 SR4 Series User Manual 以下為首次設定的顯示流程： Level 0 Level 1 EXTERNAL 4 BAY ═ ═ Main Menu ═ ═ HARDWARE RAID Quick Setup P24~25 ═ ═ Main Menu ═ ═ Disk Manager ═ ═ Main Menu ═ ═ RAID Manager P27~29 ═...
  • Page 26 Enter Password : Select Level : RAID 5 Are You Sure? Enter :Yes Esc : No Quick Setup : Enter Password : Delete All RAID • 若先前沒有設定密碼，按 ENTER 以進行下一個步驟。 註 1. 可以不設定密碼，按 ENTER 以進行下一個步驟。 註 2. 如果使用者忘記密碼，將無法讀取硬碟上的資料，或是將新資料寫入硬碟。 若使用者儲存在 SR4 的資料損毀或遺失，STARDOM 將不負任何的責任。...
  • Page 27 SR4 Series User Manual Level 1 Level 2 ═ ═ Main Menu ═ ═ Disk Manager : Disk Manager Identify Disk Disk Manager : Show Disk Info...
  • Page 28 SR4 Series User Manual Level 2 Level 3 Level 4 Disk Manager : Disk Manager : Identify Disk Disk 1 Disk Manager : Disk 2 Disk Manager : Check Disk LED Disk Manager : Disk 3 Disk Manager : Disk 4 Disk Manager : Select Disk : Show Disk Info...
  • Page 29 SR4 Series User Manual Level 1 Level 2 ═ ═ Main Menu ═ ═ RAID Manager : RAID Manager Identify RAID RAID Manager : Create RAID RAID Manager : Delete RAID RAID Manager : RAID Info RAID Manager : Change RAID Pwd. RAID Manager : Rebuilding Priority...
  • Page 30 Enter :Yes Esc : No RAID Manager : Select RAID : Information RAID Information 註 RAID Manager : < Password > Select RAID : Change RAID Pwd for RAID Setup 註 1. 可以不設定密碼，按 ENTER 以進行下一個步驟。 註 2. 如果使用者忘記密碼，將無法讀取硬碟上的資料，或是將新資料寫入硬碟。 若使用者儲存在 SR4 的資料損毀或遺失，STARDOM 將不負任何的責任。...
  • Page 31 SR4 Series User Manual Level 2 Level 3 Level 4 RAID Manager : Select Priority : Select RAID : Rebuilding Priority Medium Level Select Priority : Low Level Select Priority : Lowest Level Select Priority : Highest Level Select Priority : High Level...
  • Page 32 SR4 Series User Manual Level 1 Level 2 ═ ═ Main Menu ═ ═ System Manager : System Manager System Info. System Manager : Changhe Password System Manager : Logout From Menu System Manager : Alarm Control System Manager : Hardware Monitor...
  • Page 33 System Manager : Are You Sure? Logout From Menu Enter : Yes Esc : No System Manager : Mute The Buzzer? Alarm Control Enter : Yes Esc : No 註 1. 可以不設定密碼，按 ENTER 以進行下一個步驟。 註 2. 如果使用者忘記密碼，將無法讀取硬碟上的資料，或是將新資料寫入硬碟。 若使用者儲存在 SR4 的資料損毀或遺失，STARDOM 將不負任何的責任。...
  • Page 34 SR4 Series User Manual Level 3 Level 4 Level 5 System Manager : Hardware Monitor 3.3V/5V/12V Voltage: Hardware Monitor Voltage Monitor xxxxV Hardware Monitor Temperature: Temp. Monitor xx degrees Hardware Monitor FAN Speed: FAN Monitor xxxx RPM FAN Level: LEVEL x...

  • Page 35: 支援 Display 埠

    SR4 Series User Manual 6. 支援 Display 埠 1. SR4 提供一個 Display 埠支援 DP1.1a，最高可支援 4K@30Hz 畫質，相容於具有 Display 埠的螢 幕及連接線。 2. 透過第三方 Display 埠轉接器或轉接線，可以連接具備 Mini Display 埠的螢幕。 3. 透過第三方主動式 Display 埠轉接器或轉接線，可以連接具備 VGA、DVI 或 HDMI 的螢幕。 對於 DisplayPort (DP 1.1a) 和 USB Power Delivery (PD) 功能，需要與 USB Type-C to C cable 一起使用， ★...

  • Page 36: 故障硬碟更換步驟及資料重建功能說明

    SR4 內建故障警示功能，若 SR4 內部溫度超過 55℃，或 SR4 風扇發生故障時，內建的蜂鳴器會發出 警告聲響，前面板的紅色警示燈號也會亮起；此時您可選按系統背面的靜音按鈕，先將警示聲關閉， 並在允許的狀況下關閉 SR4 電源讓系統降溫；同時，請先確認積體擺放環境是否通風良好，沒有任何 物體擋住風扇孔，一併檢查 SR4 的風扇是否停止運轉；待上述檢查確認後，再將電源開啟繼續使用本 系統。若問題還是無法獲得解決，請與供應商或 STARDOM 聯絡，以便取得進一步的支援。 10. 常見問題 Q1. 我應該選擇何種模式來格式化 SR4 產品內的硬碟 ? A：這將取決於您平常所使用的電腦系統，我們有以下建議： 1. Windows 2000 / XP / Vista / 7 / 8 / 10 使用 NTFS 2.
