Summary of Contents for Dual XD230M

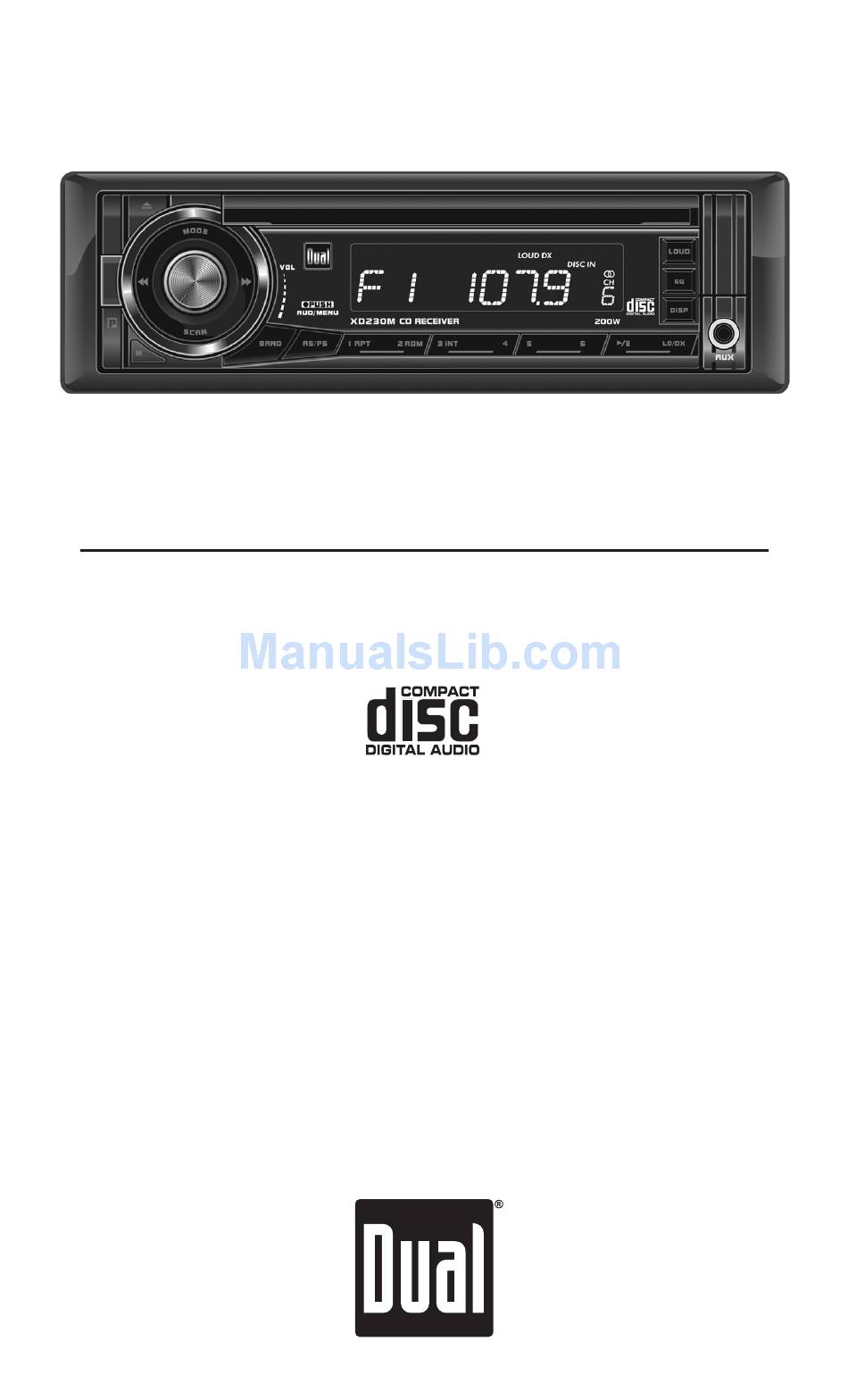

- Page 1 XD230M INSTALLATION/OWNER'S MANUAL AM/FM/CD/PA Ready Receiver...
-
Page 2: Getting Started
XD230M INSTALLATION Preparation Please read entire manual before installation. Before You Start • Disconnect negative battery terminal. Consult a qualified technician for instructions. • Avoid installing the unit where it would be subject to high temperatures, such as from direct sunlight, or where it would be subject to dust, dirt or excessive vibration. -
Page 3: Wiring Diagram
XD230M INSTALLATION Wiring Diagram FUSE When replacing the fuse, make sure new fuse is the correct type and amperage. Using an incorrect fuse could damage the radio. The XD230M uses one 10 amp AGC fuse located in-line. -
Page 4: Control Locations
XD230M OPERATION Control Locations Eject Preset 5 Mode Preset 4 Volume/Audio/Setup Preset 3/Intro Tune/Track Up Preset 2/Random Preset 1/Repeat Loudness Auto Store/Preset Scan Display Band Auxiliary Input Tuner Scan Local/Distance Mute Play/Pause Tune/Track Down Preset 6 Power... -
Page 5: General Operation
XD230M OPERATION General Operation Power On/Off Press POWER or any other button (except eject) to turn the unit on. Inserting a disc will turn the unit on automatically. Press POWER to turn the unit off. Mode Press MODE to select between Tuner, CD player and auxiliary input. -
Page 6: Setup Menu
XD230M OPERATION General Operation Audio Press volume knob momentarily to select between Volume (default), Bass, Treble & Balance. Bass Press volume knob until BAS appears then rotate encoder left/right to adjust ( -6 minimum / +6 maximum). Treble Press volume knob until TRE appears then rotate encoder left/right to adjust ( -6 minimum / +6 maximum). -
Page 7: Am/Fm Tuner Operation
XD230M OPERATION AM/FM Tuner Operation Manual Tuning Press TUNE or TUNE momentarily to move radio frequency up or down one step at a time. Press and hold to advance quickly. Seek Tuning Press TUNE or TUNE for one second, then release to seek the next strongest station. -
Page 8: Cd Player Operation
XD230M OPERATION CD Player Operation Insert CD With the label facing up, insert a standard size CD into the CD slot. The CD will automatically begin playback. Eject CD Press EJECT to eject the CD. The unit will change to previous mode of operation (Tuner or AUX). If the disc is not removed within 10 seconds, the unit will reload the disc. -
Page 9: Fcc Compliance
XD230M OPERATION FCC Compliance This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. -
Page 10: Troubleshooting
XD230M OPERATION Troubleshooting Problem Cause Action Yellow wire not connected or incorrect voltage Check connections for proper Unit will not turn on Red wire not connected or incorrect voltage voltage (11~16VDC) (no power) Black wire not connected Check connection to ground Fuse blown Replace fuse Speaker wires not connected Check connections at speakers Unit has power ... -
Page 11: Specifications
XD230M OPERATION Specifications CD Player Frequency response: 10Hz-20kHz Channel separation @ 1kHz: >65dB D/A converter: 1 Bit FM Tuner Tuning range: 87.5MHz-107.9MHz Usable sensitivity: 8.5dBf 50dB quieting sensitivity: 12dBf Stereo separation @ 1kHz: 35dB Frequency response: 30Hz-13kHz AM Tuner Tuning range: 530kHz-1710kHz Usable sensitivity: 24uV Frequency response: 40Hz-2.1kHz... - Page 12 Dual Electronics Corp. Toll Free: 1-866-382-5476 www.dualav.com ©2011 Dual Electronics Corp. All rights reserved. NSA0911-V01...
