2. Quick Install Your Vigor2100 Series Router

2.1 Hardware Installation

Before starting to configure the router, you have to connect your devices
correctly.

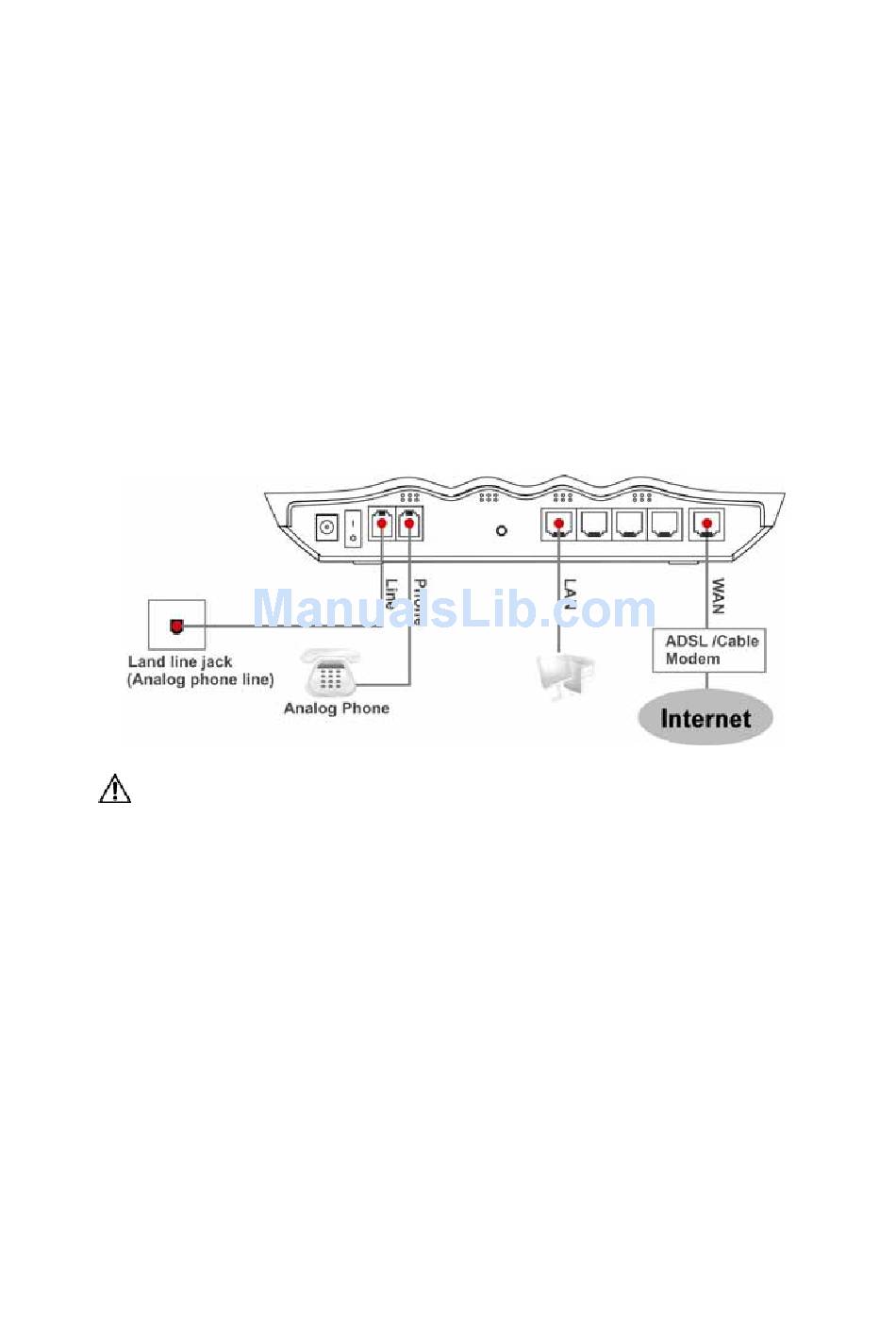

1. Connect the WAN interface to the external Cable/ADSL modem with a RJ-45
cable.
2. Connect one port of 4-port switch to your computer with a RJ-45 cable.
3. For Vigor2100VG/V, connect Phone port to
either corded or wireless (DECT),
4. For Vigor2100VG/V, connect Line port to land line jack with a RJ-11 cable.
5. Connect the attached power adapter to the power port.
6. Check the ACT and WAN, LAN LEDs to assure network connections.
(Regarding the detailed LED status explanation, please refer to section 1.3)
Caution For Vigor2100VG/V, the FXS port can be connected to an
analog phone only. Do not connect the FXS port to the telephone wall jack.
This connection might damage your router.
a conventional analog telephone,
with a RJ-11 cable.
