Z-AXIS LIMIT SWITCH ADJUSTMENT

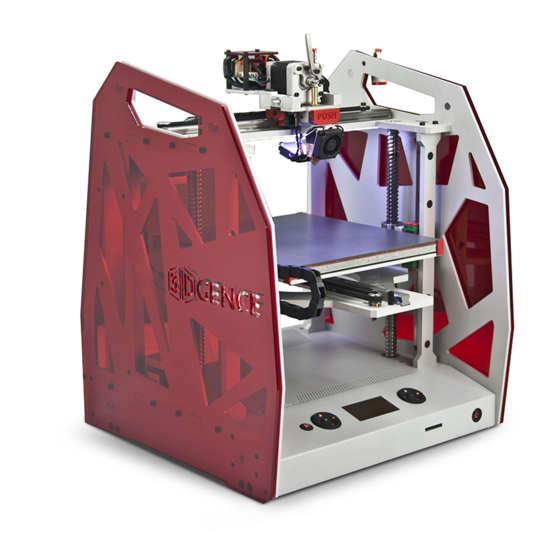

3DGence ONE

Table of Contents

Need help?

Do you have a question about the ONE and is the answer not in the manual?

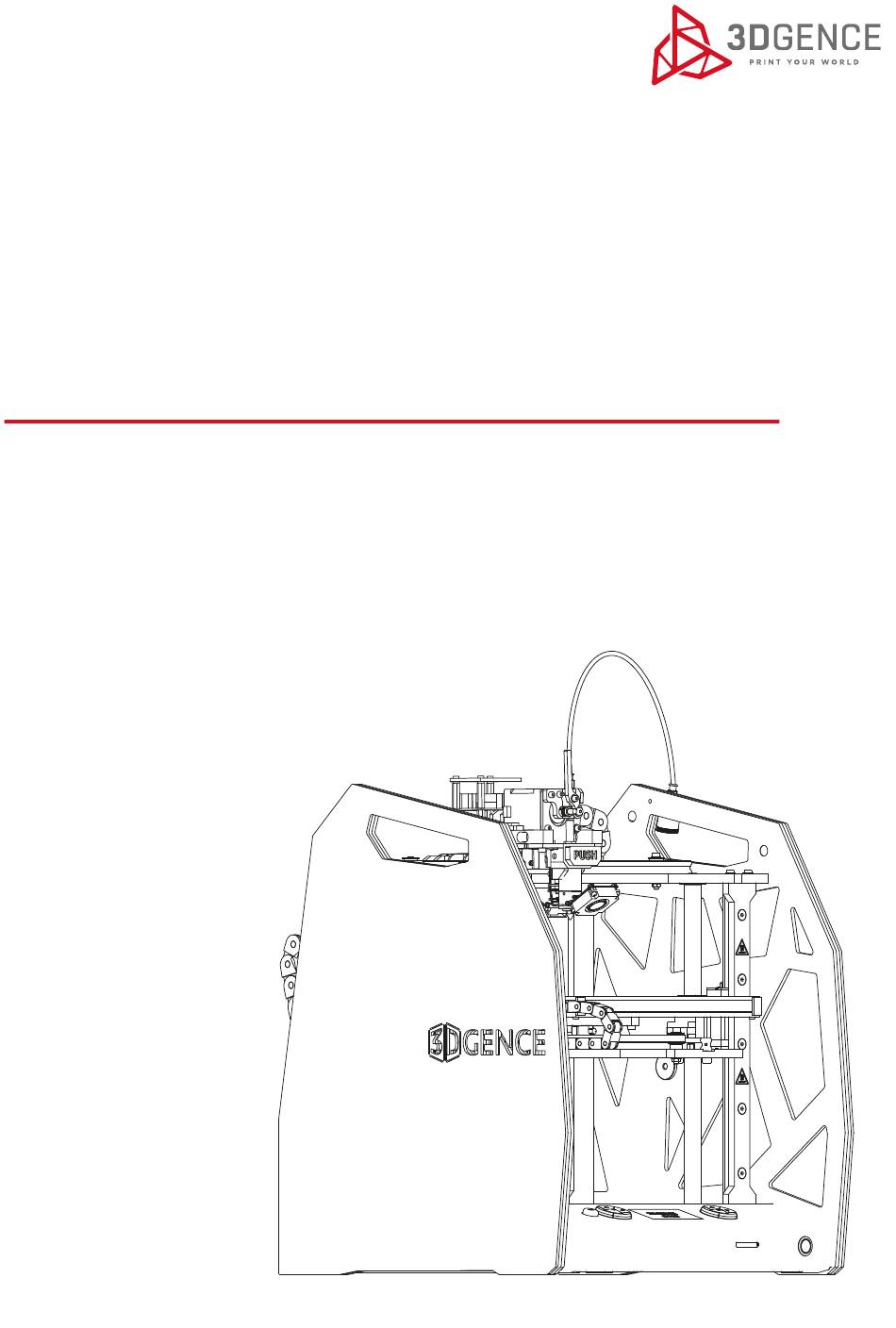

Page 1 Service manual: Z-AXIS LIMIT SWITCH ADJUSTMENT 3DGence ONE...
Page 2 WARNING! Screwing the knurled bolt clockwise will increase the distance between the heatbed and the hotend. Moving the screw counter – clockwise will decrease the distance. One full turnover of the knurled bolt will decrease or raise the limit switch around 0.5 mm.
Page 3 – in such manner that the hotend does not rise above the heatbed (for safety). Distort the printer by choosing following commands from printer’s menu: Conﬁguration Hardware Test Home Z. 01.2018 3DGence ONE | support: +48 32 438 98 64 | www.3dgence.com...
Page 4 – when the distance is more or less than 0.8 mm, adjust it manually using the knurled bolt – turn the knurled bolt in the appropriate direction (we recommend not more than a half of turnover – for safety), 01.2018 3DGence ONE | support: +48 32 438 98 64 | www.3dgence.com...
Page 5 Then run Heatbed Scan by choosing the following commands from printer’s menu: Calibration Heatbed Scan – if the distance is not within the range of 0.7 mm to 0.9 mm – contact the 3DGence service. 01.2018 3DGence ONE | support: +48 32 438 98 64 | www.3dgence.com...
