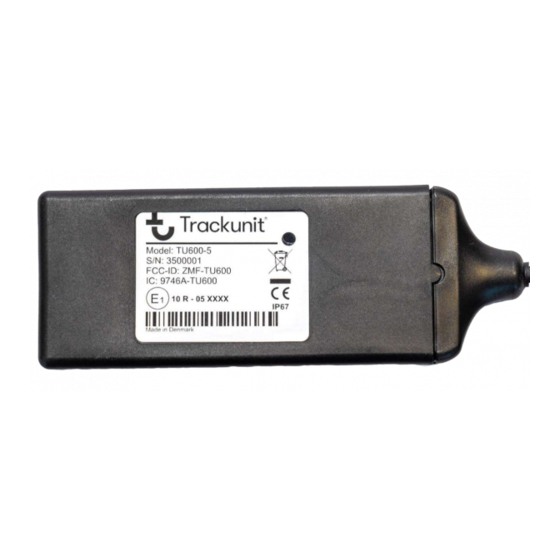

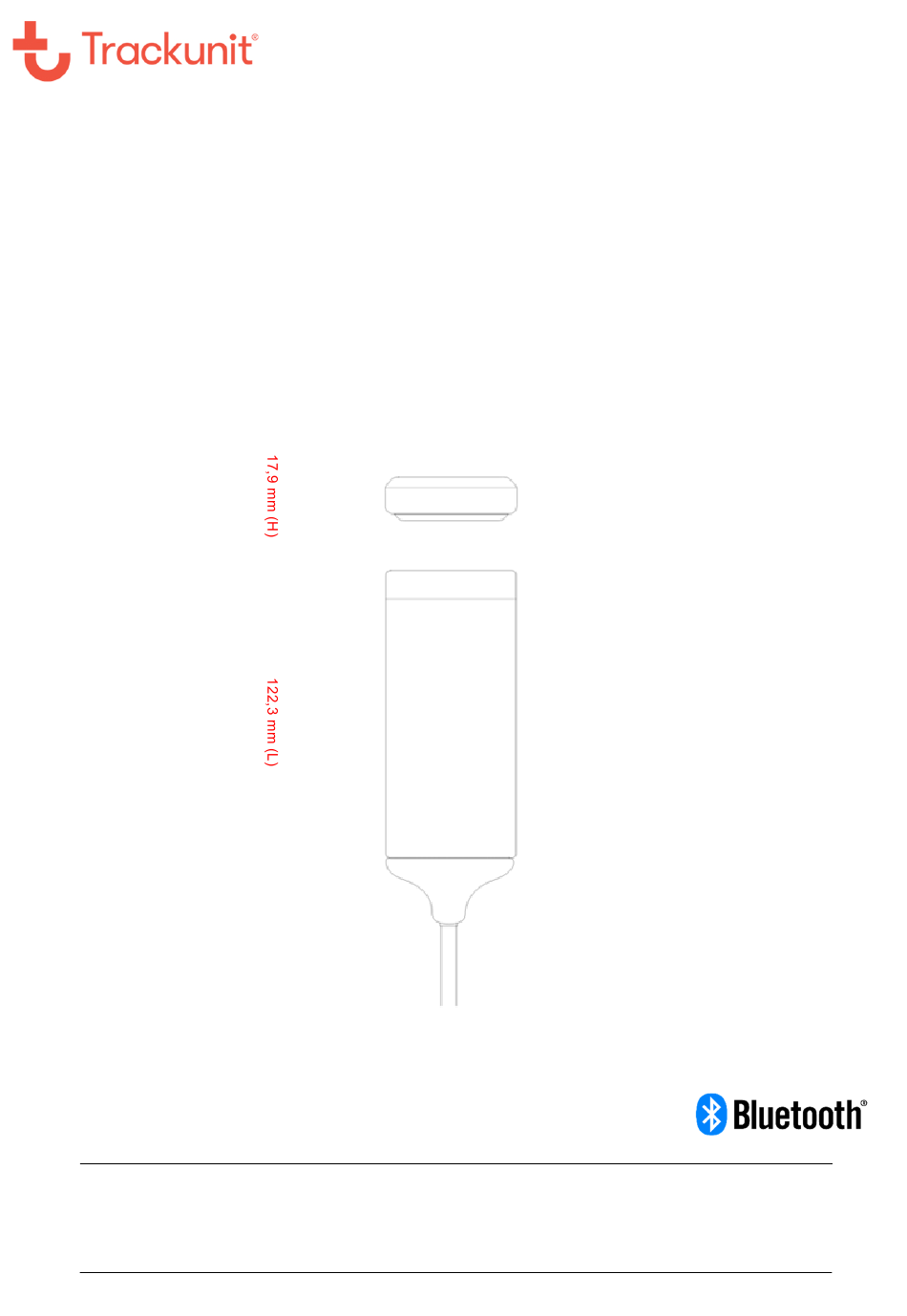

- Page 1 Short guide : TU600-x Version 0.3, January 2020 45,5 mm (W) NOTE: Model ID TU600-x (LTE Cat M1 /Cat NB1 / 2G)
-
Page 2: Table Of Contents
Machine and vehicle guidelines for correct wiring ........4 Installation example ..................5 Functionality check: LED on the unit ............6 Installation check and update using “Verify my Trackunit” ......7 Input filtering (INFILT) ................. 8 CAN bus termination resistor ..............9 Troubleshooting .................. -
Page 3: Practical Advice
GSM/UMTS signal. 3. Correct positioning of the unit Position the unit as Avoid installing the unit shown for optimal directly under a layer of signal conditions. metal or next to wires. Short Guide TU600-x v0.2, January 2020, ©Trackunit 2020... -
Page 4: Machine And Vehicle Guidelines For Correct Wiring
1: Supply voltage range 12–48V 2: Active/high when min. 9,5V DC at input 3: Max. load 200 mA 4: Do NOT use this output to switch off vehicles and machines during operation or driving Short Guide TU600-x v0.2, January 2020, ©Trackunit 2020... -
Page 5: Installation Example
TU600-x Installation example Short Guide TU600-x v0.2, January 2020, ©Trackunit 2020... -
Page 6: Functionality Check: Led On The Unit
- Mobile network is OK light in LED - GPS has NO satellite position Power supply is OK, but NO mobile network Constant red and green light in - GPS has valid satellite position Short Guide TU600-x v0.2, January 2020, ©Trackunit 2020... -
Page 7: Installation Check And Update Using "Verify My Trackunit
GPS and mobile - Enter a device name coverage. - Enter engine hours - Enter start distance - Select category - Connect up to multiple groups - Add a note (visible in Trackunit Manager) Short Guide TU600-x v0.2, January 2020, ©Trackunit 2020... -
Page 8: Input Filtering (Infilt)
NB! Enabling the filtering function will disable inputs 1 to 3 when input 4 is on/active. This can prevent all digital input alarms. It will also disable the use of any alarm function on digital input 4. Short Guide TU600-x v0.2, January 2020, ©Trackunit 2020... -
Page 9: Can Bus Termination Resistor
The 120-ohm termination resister is a software-controlled resistor, so make sure to use and select the correct TU600 CAN-bus profile. CAN-bus profile is selected in Trackunit Manager and software controls the resistor setup. With 120-ohm bus termination (directly connected) Without 120-ohm bus termination (stub connected) NB! When the unit is stub connected, the wire length must be minimized to avoid CAN-bus noise and error ratio. -
Page 10: Troubleshooting
Fuse kits (30V/1A) for 12V-24V operations or (80V/3A) for 12V-48V operation. Trackunit support: +45 96 73 74 00 Email: support@trackunit.com The guides can also be downloaded online: www.trackunit.com/downloads NB! When contacting technical support, please have the unit serial number ready. Short Guide TU600-x v0.2, January 2020, ©Trackunit 2020... -
Page 11: Product Specifications
225 mA / 115 mA (max at 12V/24V) charging an empty battery Charging time for an empty 4 hours at 25ºC / 77ºF) backup-battery Digital inputs Digital outputs CAN inputs (High / Low) Access control input M8 connector Short Guide TU600-x v0.2, January 2020, ©Trackunit 2020... -
Page 12: Temperature Range
17.9 mm (0.7 in.) (22,7 mm incl. cradle) (0.9 in.) Cable length 170 cm (5.6 ft.) Environmental class IP67 (With HW Shield IP66k & IP69k – PN. 7402.9551 and 7402.9552) Weight 66 g (excluding cable) (2.3 oz.) Short Guide TU600-x v0.2, January 2020, ©Trackunit 2020... -
Page 13: Regulatory Information And Precautions
This equipment design applies to commercial or industrial equipment expected to be installed in locations where only adults are normally present Terms of use Use only Trackunit approved accessories and/or batteries. Do not connect incompatible products New battery In case of battery malfunction, expiration or any other situation where a new battery might be needed, replacement batteries can be ordered through support@trackunit.com... - Page 14 Statement for ISO 13849-1: The TU600-x are when installed not a vital part in the machine safety system, but it can be used as access control/immobilizer if paired with a keypad (e.g. DualID II) or Ibutton or by Bluetooth LE. This function depends on correct installation (see installation guide) and requires that the output wire is connected to a relay to control the starter motor, see installation diagram.
-
Page 15: Approvals And Certifications
FCC part 15.21 Changes or modifications made to this equipment not expressly approved Notice by Trackunit may void the FCC authorization to operate this equipment. FCC/IC This equipment complies with FCC/IC radiation exposure limits set forth for Radiofrequency an uncontrolled environment. This equipment may be installed and... - Page 16 #77390: Trackunit TU600-5, HW 1.000, SW 60.012, SVN 7 Japan The TU600-x model is certified for Japan under ID n°: [R] 003-180062, [R] 209-J00306, [T] D180034003 This device is granted pursuant to the Japanese Radio Law (電波法) =当該機器には電波法に基づく、技術基準適合証明等を受けた特定無線設備を装着して いる...
- Page 17 The TU600-5 model is additionally certified for countries that has no regulatory label requirements: India, Kuwait, Qatar, Saudi Arabia. The certificates can be requested at Trackunit A/S for use for import declarations. Short Guide TU600-x v0.2, January 2020, ©Trackunit 2020...
