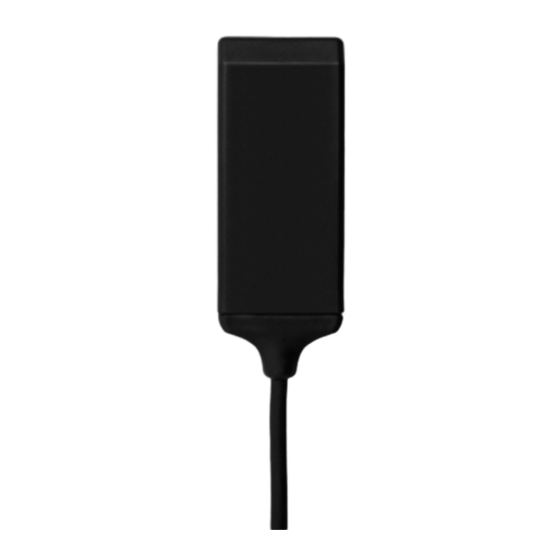

Trackunit RAW TU501 Connection Manual

Connection Guide Raw TU501
Machine and vehicle guidelines for correct wiring
Wire color
Description
Connect to machine battery through a fuse (mandatory)
Power
Ground
Connect to ground (mandatory)
Digital input 1
Can be connected to hour counter. Optional input
Digital input 2
Connect to the ignition signal (mandatory for vehicles and machines)
Digital input 3
Optional input 1
Digital input 4
Can be used for INFILT function. Optional input
Digital output 1
Can be used to control a relay
3/ 4
Additional input for TU501-2
1 - Wire input
M8 connector for access control and temperature sensor
Additional input for TU501-4
CAN High Connect to CAN High
CAN Low Connect to CAN Low
1 - Wire input
M8 connector for access control and temperature sensor
1 2 Active/high when min. 9,5V DC
Supply voltage range
at input
12 - 48 V
3
Max. load 200 mA
Functionality Check
LED status indication
Status
1 Red flashing light and constant
green light in LED
No light in LED
2
Constant red light and no green
light in LED
1
Red flashing light and no green
light in LED
2
Constant red light and green light
in LED
Practical advice
+xx xx xx xx xx
S/N xxxxxx
Mobile number and unit
serial number are located on
the box. The label can be
peeled off and saved for
later use.
4 Do NOT use this output to switch off
vehicles and machines during operation
or driving
LED mode LED color Status indication
- Mobile network is OK
- GPS has valid satellite
position
- No power supply
- NO mobile network
- GPS has NO satellite position
- Mobile network is OK
- GPS has NO satellite position
- NO mobile network
- GPS has satellite position
Mount Raw with the serial
number facing outwards in
order to see the LED.
Installation Example With Access Control
red
Fuse
86 87
Machine
85 30
Machine
battery
blue
Main
switch
yellow brown
pink
TU501 devices have to be installed in a minimum distance of 5 cm from the
user of the machine or vehicle.
87a
Starter
Ignition
Hour counter
0 0 0 0 0
HOURS
Alternator
white
