INSTALLATION INSTRUCTIONS
We appreciate your commitment to Kallista quality products. Please take a moment to review this manual before
you install your Kallista product. If you encounter any installation or performance problems, please do not
hesitate to contact us at the phone number listed at the bottom of the page.
Observe all local plumbing and building codes.
Shut off the main water supply.
For roughing-in specifications, please refer to the faucet manufacturer's installation instructions.
Kallista reserves the right to make revisions in the design of plumbing products without notice, as specified in
the Price Book.
Hex
Wrench
1080631-2-A
Page 1 of 2
THANK YOU FOR CHOOSING KALLISTA
BEFORE YOU BEGIN
TOOLS AND MATERIALS
Adjustable
Strap
Wrench
Wrench
1. INSTALL THE SHOWER ARM
Shower Ell
Apply
clear silicone
sealant.
Set Screw
Showerhead
(Not Provided)

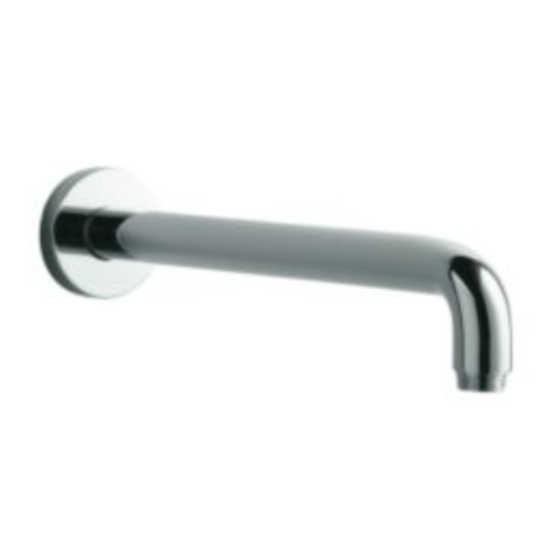

ONE™ Wall Mount Shower Arm
(For 11.8" Rain Showerhead)
Thread
Sealant
Wall Flange
Shower Arm
Questions? Problems? For additional assistance, please contact Kallista's Customer
Service Department at 1-888-4KALLISTA (1-888-452-5547) or FAX 1-888-272-3094.
P24474
Silicone
Sealant
Scale: 1/8" = 1"
Advertisement
Related Manuals for Kallista ONE P24474
Summary of Contents for Kallista ONE P24474
- Page 1 Shut off the main water supply. For roughing-in specifications, please refer to the faucet manufacturer’s installation instructions. Kallista reserves the right to make revisions in the design of plumbing products without notice, as specified in the Price Book. TOOLS AND MATERIALS...
- Page 2 Use a clean strap wrench to completely tighten the shower head to the shower arm. Check for proper operation. 1080631-2-A Questions? Problems? For additional assistance, please contact Kallista's Customer Page 2 of 2 Service Department at 1-888-4KALLISTA (1-888-452-5547) or FAX 1-888-272-3094.
