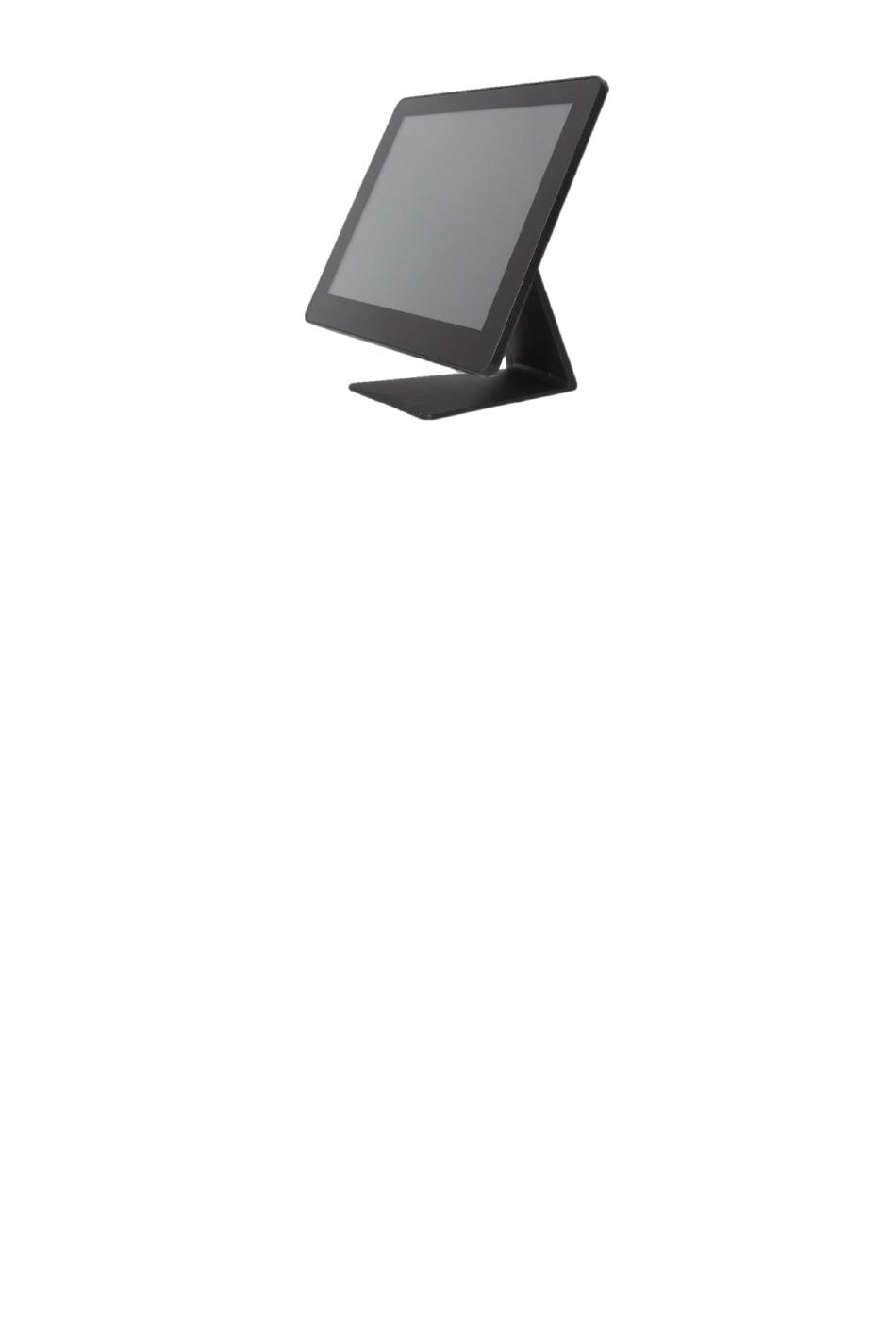

  • Page 1 PP-1125 Android Aer PPC ver. 0.1...
  • Page 2 Firich Enterprise Co., Ltd. Information provided in this manual is intended to be accurate and reliable. However, Firich Enterprise Co., Ltd assumes no responsibility for its use, nor for any infringements upon the rights of third parties, which may result from its use.
  • Page 3 Safety Precaution Please observe the following precautions to ensure safe use of equipment. Disconnect the equipment from AC outlet before cleaning. Use only moist cloth (with water). Do not use detergent. Power outlet must be easily accessible and near the equipment. Keep the equipment away from humid and dusty environment.

  • Page 4: Table Of Contents

    Introduction PP-1635 (Aer PPC) ......................6 Overview........................... 7 Dimension ......................... 8 Tilting Angle ........................9 I/O Connectivity....................... 10 Packing List ........................11 Hardware Installation and Upgrade 2.5” SATA Storage (HDD / SSD) ............錯誤 尚未定義書籤。 MSR / iButton / RFID / FingerPrint (ID Device) ..............12 Power Setting (COM / Cash Drawer Port) ................
  • Page 5 ELO TouchKit Installation for Windows 7 ..........錯誤! 尚未定義書籤。 錯誤 尚未定義書籤。 EETI TouchKit for Windows 7 ............. 錯誤 尚未定義書籤。 EETI TouchKit Control Panel .............. 錯誤 尚未定義書籤。 Wireless LAN Driver for Windows ............Specifications Troubleshooting Touch Panel does not work ..................... 17 OSD Buttons do not work ....................

  • Page 6: Introduction

    PP-1125 Android Aer PPC PP-1125 (Android Aer PPC) PP-1125 is the latest member of Android Aer PPC series that features a slim all-in-one design with great versatility. It can be easily configured to meet the demand of different store environments. PP-1125 also provides a decent choice for noise-free environment applications with optimized product reliability.

  • Page 7: Overview

    Overview 15” Touch Display HDD Indicator Power Switch (w/ LED) System on: BLUE System off: Integrated Customer Display MSR / ID Device Speaker...

  • Page 8: Dimension

    Dimension H: 335 mm W: 366 mm W: 158 mm D: 187 mm...

  • Page 9: Tilting Angle

    Tilting Angle 90 ⁰...
  • Page 10 Swappable stand cover and cabling...

  • Page 11: I/O Connectivity

    RJ-45 5v : Green / 12v : Orange RI / 5v / 12v (select in system setting) COM 2 RJ-45 5v : Green / 12v : Orange Packing List Standard Optional PP-1125 Power Adapter (90w) AC Power Cord RJ45-DB9 Cable...

  • Page 12: Hardware Installation And Upgrade

    Do not remove the Storage without switch off the terminal. Power must be switched off and power cord must be unplugged. Every time you service the system, please be aware of this. MSR / Finger Print Reciever / RFID / iButton Installation 1.

  • Page 13: Power Setting (Com / Cash Drawer Port)

    Power Setting (COM / Cash Drawer Port) You may select the power (5v / 12v) of COM in system setting Step 1. Click “Setting” button in the system. Step 2. Click “Device Status” button. You will see the options for setting including C/D, COM 1-5 power setting.
  • Page 14 Step 3. Choose the power output you want. COM port power setting. C/D power setting ** Make sure the peripherals are un-plugged to avoid to damage peripherals if devices voltage are not matched. **...

  • Page 15: Integrated Vfd / Lcm

    Integrated VFD/LCM Installation 1. Un-fasten 1xM3 screw Remove the VFD Plastic cover and Back Cover on the terminal 2. Install the integrated type of Customer Display into the proper area with the com port internal cable connected. And fasten back 3 x M3 screws. 3.
  • Page 16 Aer PPC PP-1125 Processor RK3288 Quad Core Cortex A17-1.8Ghz Storage RAM: 2GB DDR3, 16GB eMMC System Power Supply 90 W or 130 W optional for type B I/O Thermal fan-less Speakers 2w x 2 15” (4 : 3) Display Touch...
  • Page 17 This guide is for people with strong knowledge in computing hardware Touch Panel does not work check the connection between touch panel and touch controller HID USB touch device is detected by O/S (P-Cap) P-Cap touch is detected by O/S or try reinstallation (P-Cap touch calibration) reboot the system and P-Cap touch will calibrate automatically OSD Buttons do not work press each OSD button for more than two seconds to trigger its function...
