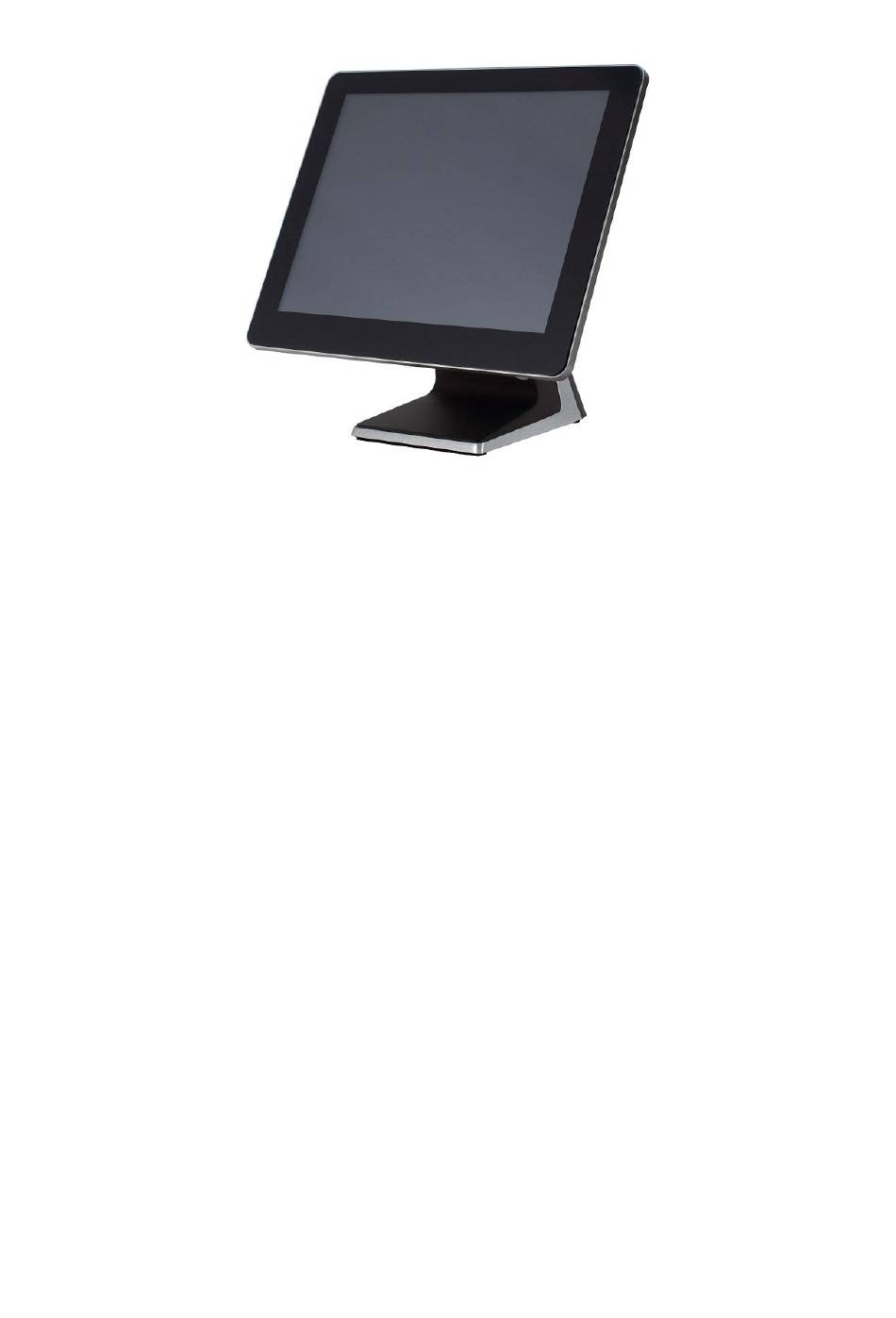

PP-9635
Aer PPC
U
s
e
r
M
a
n
U
s
e
r
M
a
n
ver. 0.2
1
u
a
l
u
a
l

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AerPPC PP-9635 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Firich Enterprise AerPPC PP-9635

Summary of Contents for Firich Enterprise AerPPC PP-9635

  • Page 1 PP-9635 Aer PPC ver. 0.2...
  • Page 2 Firich Enterprise Co., Ltd. Information provided in this manual is intended to be accurate and reliable. However, Firich Enterprise Co., Ltd assumes no responsibility for its use, nor for any infringements upon the rights of third parties, which may result from its use.
  • Page 3 Safety Precaution Please observe the following precautions to ensure safe use of equipment. Disconnect the equipment from AC outlet before cleaning. Use only moist cloth (with water). Do not use detergent. Power outlet must be easily accessible and near the equipment. Keep the equipment away from humid and dusty environment.

  • Page 4: Table Of Contents

    Introduction PP-9635 (Aer PPC) ......................1 Overview..........................2 Dimension ..........................3 I/O Connectivity ........................4 Packing List ......................... 5 Hardware Installation and Upgrade 2.5” SATA Storage (HDD / SSD) ..................6 MSR / iButton / RFID / FingerPrint (ID Device) ..............7 Power Setting (COM / Cash Drawer Port) ................
  • Page 5 Wireless LAN Driver for Windows ..................30 Specifications Troubleshooting Touch Panel does not work ....................32 OSD Buttons do not work ....................32 HDD / SSD is not detected ....................32 MSR does not function properly ..................32 LAN does not function properly ..................32 COM does not function properly ..................

  • Page 6: Introduction

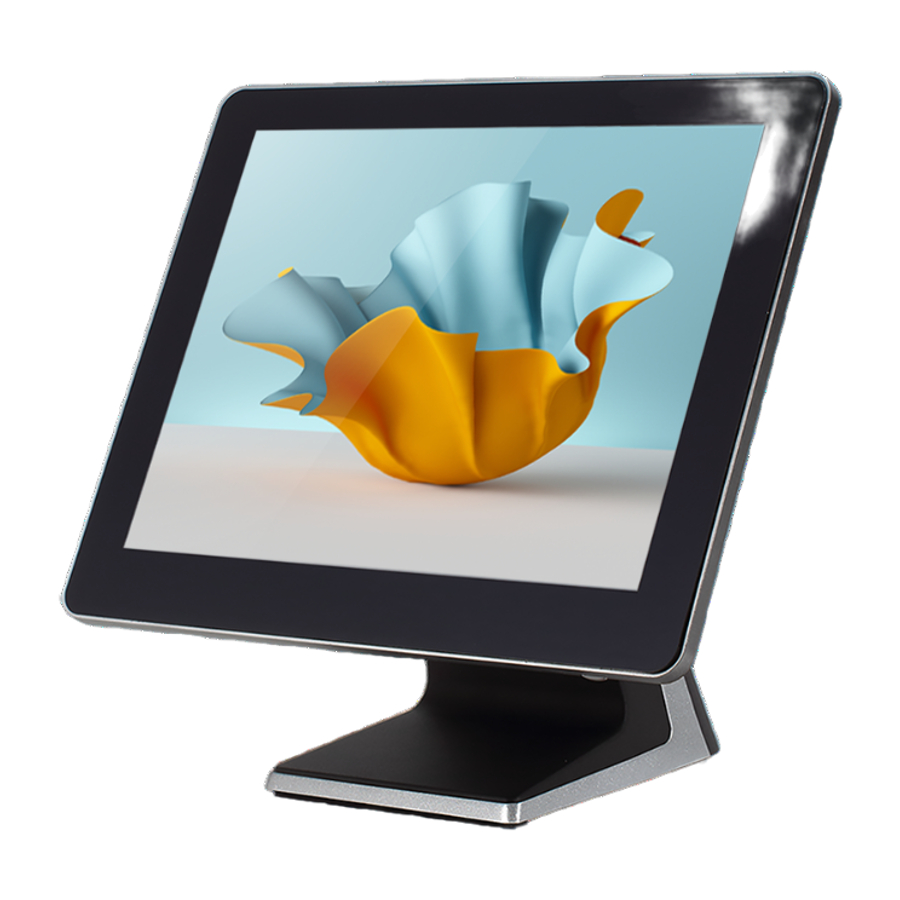

    PP-9635 Aer PPC PP-9635 (Aer PPC) PP-9635 is the latest member of Aer PPC series that features a slim all-in-one design with great versatility. It can be easily configured to meet the demand of different store environments as a desktop, wall-mount or pole-mount POS system. PP-9635 is a fanless system in die-cast aluminum chassis that withstands harsh environments.

  • Page 7: Overview

    PP-9635 Aer PPC Overview 15” Touch Display HDD Indicator Power Switch (w/ LED) Integrated Customer Display SATA Storage MSR / ID Device Speaker...

  • Page 8: Dimension

    PP-9635 Aer PPC Dimension H: 360mm W: 366mm W: 190mm...

  • Page 9: I/O Connectivity

    PP-9635 Aer PPC I/O Connectivity I/O – Default DC IN POWER Cash Ethernet USB 2.0 USB 2.0 COM 1 DC Out USB 24V Drawer USB 2.0 USB 3.0 I/O – Option A DC IN POWER Cash Ethernet USB 2.0 USB 2.0 COM 1 DC Out COM 4...

  • Page 10: Packing List

    PP-9635 Aer PPC I/O Port Connector Type Description 12v DC- in DC-in (4 pin) 12V Power Adapter 24v USB 2.0 24v USB 24v USB device (2A continue / 6A per second) Cash Drawer RJ11 12v / 24v Cash Drawer Ethernet RJ-45 Gigabit LAN D-Sub 15...

  • Page 11: Hardware Installation And Upgrade

    PP-9635 Aer PPC SWITCH OFF POWER AND UNPLUG POWER CORD BEFORE SATA STORAGE IS REMOVED 2.5” SATA Storage (HDD / SSD) power off and unplug power cord from PP-9635 remove SATA storage cover fix SATA storage to metal bracket via 4 screws 2.5”...

  • Page 12: Msr / Ibutton / Rfid / Fingerprint (Id Device)

    PP-9635 Aer PPC replace SATA storage cover plug in power cord and power on MSR / iButton / RFID / FingerPrint (ID Device) remove plastic cover plug in ID device (USB) and fix it via 1 x M3 screw...

  • Page 13: Power Setting (Com / Cash Drawer Port)

    PP-9635 Aer PPC Power Setting (COM / Cash Drawer Port) You may select the power (5v / 12v) of COM and Cash Drawer Port in BIOS Make sure the device voltage matches the power setting before connection...

  • Page 14: Cable Cover And Cabling

    PP-9635 Aer PPC Cable Cover and Cabling connect the adapter to 12v DC-in connect all devices install cable cover tighten 2 x M3 screw...

  • Page 15: Integrated Vfd / Lcm

    PP-9635 Aer PPC Integrated VFD / LCM loosen 1 x M3 screw and remove the back cover connect customer display via serial cable and tighten 3 x M3 screw customer display (integrated type) is connected to COM6 5mm LCM Module (AP-2025) is 9mm VFD (AP-2029), 9mm LCM 20x2 (AP-2024), LCM 240x64 (AP-240G) are * make sure the power setting of COM6 is correct before customer display is connected do not exceed the tilt angle as...

  • Page 16: Led Backlight Brightness

    PP-9635 Aer PPC LED Backlight Brightness 5 levels of backlight brightness (5, 25, 50, 75, 100%) can be selected in the BIOS...

  • Page 17: Nd Monitor (15" Pole Type)

    PP-9635 Aer PPC Monitor (15” Pole Type) Fasten PP-9635 and 2 monitor together with 2 x M5 screw connect VGA and 12v DC cables...

  • Page 18: Cash Drawer

    PP-9635 Aer PPC Cash Drawer Please make sure the voltage and cable pin assignment of your cash drawer matches the cash drawer port on PP-9635. You may find the jumper setting and pin definition in M/B J1900 user manual. Please refer to trouble shooting if the cash drawer cannot be detected by PP-9635 To open drawer 1 (the default): port[openaddr] <= open1 wait(sleep(ms))

  • Page 19: Software Installation And Setup

    PP-9635 Aer PPC Please download drivers and utilities from www.fecpos.com/en-global/ams/Download Installation Sequence 1. Chipset Driver 2. Audio Driver 3. LAN Driver 4. Graphic Driver 5. TXE Driver  TXE Update 6. USB3.0 Driver 7. Touch Tools (Touch Utility)

  • Page 20: Intel J1900 Chipset Utilities For Windows 7

    PP-9635 Aer PPC Intel J1900 Chipset Utilities for Windows 7 1. download drivers from www.fecpos.com/en-global/ams/Download “setupChipset_10.0.13PC”  Win7 32 bit “setupChipset_10.0.13PC64”  Win 7 64 bit 2. run SetupChipset.exe...

  • Page 21: Audio Driver For Windows 7

    PP-9635 Aer PPC Audio Driver for Windows 7 1. download drivers from www.fecpos.com/en-global/ams/Download 2. run Steup.exe 3. restart PP-9635 to complete installation...

  • Page 22: Realtek Lan Driver For Windows 7

    PP-9635 Aer PPC Realtek LAN Driver for Windows 7 1. download drivers from www.fecpos.com/en-global/ams/Download 2. run Steup.exe...

  • Page 23: Intel Graphic Driver For Windows 7

    PP-9635 Aer PPC Intel Graphic Driver for Windows 7 1. download drivers from www.fecpos.com/en-global/ams/Download 2. run Steup.exe 3. restart PP-9635 to complete installation...

  • Page 24: Intel Txe Driver For Windows 7

    PP-9635 Aer PPC Intel TXE Driver for Windows 7 download drivers from www.fecpos.com/en-global/ams/Download run Steup.exe restart PP-9635 to complete installation...

  • Page 25: Intel Txe Update For Windows 7

    PP-9635 Aer PPC Intel TXE Update for Windows 7 1. download drivers from www.fecpos.com/en-global/ams/Download 2. run kmdf1.11-win-6.1-x64.exe 3. restart PP-9635 to complete installation...

  • Page 26: Usb 3.0 Driver For Windows 7

    PP-9635 Aer PPC USB 3.0 Driver for Windows 7 1. download drivers from www.fecpos.com/en-global/ams/Download 2. run Steup.exe 3. restart PP-9635 to complete installation...

  • Page 27: Elo Touchkit Tools Installation

    PP-9635 Aer PPC ELO TouchKit Tools Installation ELO TouchKit Installation for Windows 7 1. ELO Touch (SW602211_ELOMouseTouch_5.5.3.exe) 2. Run as administrator 3. Unzip file and start to Install USB Touch Screen Driver...
  • Page 28 PP-9635 Aer PPC 4. Start installation and choose “Calibrate ELO ToucScreen” as finished 5. Four Corners Calibration 6. ELO Touchscreen Control Panel  General Page  can choose calibration mode for “Normal Mode” or “Enhance Mode”...
  • Page 29 PP-9635 Aer PPC 7. Mode Page: Mouse Button emulation mode Click on touch, Click on release, Mouse emulation Double Click Area Options  Hide arrow mouse pointer, left-hand mouse, show tool tray utility Drag delay Untouch Timeout...
  • Page 30 PP-9635 Aer PPC 8. Sound Page: Beep options without Beep, Beep on touch, Beep on untouch Beep from External Speaker, Motherboard Beeper Motherboard Beep settings  Tone and Duration...
  • Page 31 PP-9635 Aer PPC 9. Properties 1: Screen Information Align  touch calibration Identify Monitor  identification of 1 screen touch or 2 screen touch Advanced:...

  • Page 32: Eeti Touchkit For Windows 7

    PP-9635 Aer PPC EETI TouchKit for Windows 7 1. download drivers from www.fecpos.com/en-global/ams/Download 2. run Steup.exe 3. do NOT check Install PS/2 interface driver and continue 4. do NOT check Install RS232 interface driver and continue...
  • Page 33 PP-9635 Aer PPC 5. confirm USB touch device is in use 6. check Support Multi-Monitor System” and continue 7. restart PP-9635 to complete installation...

  • Page 34: Eeti Touchkit Control Panel

    PP-9635 Aer PPC EETI TouchKit Control Panel Tools allows the user to calibrate the touch panel via 4 Points Calibration...

  • Page 35: Wireless Lan Driver For Windows

    PP-9635 Aer PPC Wireless LAN Driver for Windows 1. download drivers from www.fecpos.com/en-global/ams/Download 2. run Steup.exe...

  • Page 36: Specifications

    PP-9635 Aer PPC Aer PPC PP-9635 Processor Intel Celeron J1900 (up to 2.42 GHz) Memory DDR3L 2GB (standard) ; 8GB (max) Power Supply 90W / 150W System Thermal fan-less Storage Device 1 x 2.5” SATA Drive Speakers 2w x 2 Display 15”...

  • Page 37: Troubleshooting

    PP-9635 Aer PPC This guide is for people with strong knowledge in computing hardware Touch Panel does not work check the connection between touch panel and touch controller HID USB touch device is detected by O/S (Resistive) EETI driver (or TouchKit driver) is properly installed or try reinstallation (P-Cap) P-Cap touch is detected by O/S or try reinstallation (P-Cap touch calibration) reboot the system and P-Cap touch will calibrate automatically OSD Buttons do not work...

  • Page 38: Com Does Not Function Properly

    PP-9635 Aer PPC COM does not function properly check the I/O ports in CMOS check IRQ conflict check mainboard and I/O cable Cash Drawer Port does not function properly pin assignment of cash drawer matches that of RJ11 cash drawer port check I/O port address...
