http://www.delta.com.tw/industrialautomation/

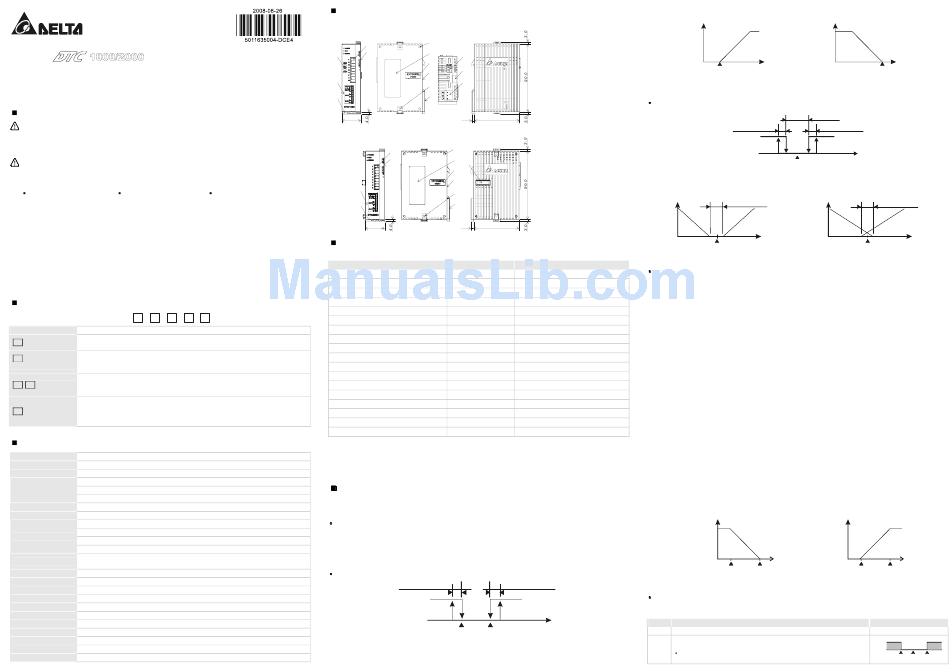

Temperature Controller
Instruction Sheet
Thank you very much for purchasing DELTA DTC1000/2000 Series Temperature Controller. Please read this
instruction sheet before using your DTC1000/2000 series to ensure proper operation, and please keep this instruction
sheet handy for quick reference.
Caution
DANGER! Caution! Electric Shock!
DTC1000/2000 series is an OPEN-TYPE device and therefore should be installed in an enclosure free of airborne
dust, humidity, electric shock and vibration. The enclosure should prevent non-maintenance staff from operating the
device (e.g. key or specific tools are required to open the enclosure) in case danger and damage on the device may
occur.
WARNING!
1. Prevent dust or metallic debris from falling into the controller that will cause malfunction. DO NOT modify or
disassemble the controller. DO NO use extra terminals.
2. Do not install and/or use the controller in places subject to:
dust or corrosive gases and liquid
high humidity and high radiation
3. Switch off the power when wiring or changing input sensors.
4. Be sure to use compensating wires that match the thermocouple types when extending or connecting the
thermocouple wires.
5. Shorten the wire when wiring a platinum resistance thermometer (RTD) to the controller, and separate power cable
from load wires to prevent interference and conductive influence.
6. Make sure the power cable and signals device are installed correctly before switching on the power of
DTC1000/2000; otherwise serious damage may occur.
7. DO NOT touch the terminals or repair the controller when the power is on to prevent electric shock.
8. Wait at least one minute after the power is off to allow the capacitor to discharge. DO NOT touch any internal circuit
within this period.
9. DO NOT touch the internal terminals no matter the power is on or off.
10. DO NOT place other heating source (e.g. power supply) in parallel with DTC1000/2000 during the installation.
Please keep proper space in between.
Model Name Explanation
D T C 1
2
3
4
Series name
DTC: Delta C series temperature controller
1: First controller
1
Controller position
2: Controller connected in parallel
0: standard, 2 outputs, no auxiliary output
2
Auxiliary output
1: 1 auxiliary output. Not available now.
groups
2: 2 auxiliary outputs. Not available now.
00: Standard
3
4
Optional
01: CT input. Not available now.
02: EVENT input. Not available now.
R: Relay output SPST, 250VAC, 3A
V: Voltage pulse output 12V +10% ~ -20%
5
Main output type
C: Current output 4 ~ 20mA
L: Linear voltage output 0 ~ 10V
Enclosed functions: DC24V input, 2 outputs, relay output for output 2, RS-485 communication.
Function & Specification
Power supply
DC24V. Isolated switching power
Voltage range
Rated voltage: 90% ~ 110%
Power consumption
Rated 24 VDC, Max. 24 W combined, 3W + 3W x number of DTC2000 controllers (Max. 7)
Thermocouple: K, J, T, E, N, R, S, B, L, U, TXK
Input sensors
Platinum RTD: Pt100, JPt100
Linear DC input: 0 ~ 5V, 0 ~ 10V, 0 ~ 20mA, 4 ~ 20mA, 0 ~ 50mV
Sampling rate
Analog input: 0.15 sec. Thermocouple or platinum RTD: 0.4 sec.
Control method
PID , programmable PID, Manual, ON/OFF
Relay: SPST, Max. load 250VAC, 3A resistive load
Voltage pulse: 12VDC, Max. output current: 40mA
Output types
Current: DC 4 ~ 20mA (Load resistance: < 500Ω)
Analog voltage: 0 ~ 10V (Load resistance: > 1,000Ω)
Control output, alarm output, proportional output
Output function
Proportional output is available only when output 1 is linear voltage/current output.
Alarm
12 alarm modes
Communication
RS-485 digital communication, 2,400bps ~ 38,400bps
Communication protocol Modbus protocol, ASCII/RTU format
Internal connection
Internal terminals available to transmit 24V power supply and communication signals
2
Vibration resistance
10 ~ 55Hz, 10m/s
for 10mins, each in X, Y and Z direction
2
Shock resistance
Max. 300m/s
, 3 times in each 3 axes, 6 directions
°
Ambient temperature
0 ~ 50
C
°
Storage temperature
-20 ~ +65
C
Altitude
< 2,000m
Ambient humidity
35% ~ 85% RH (non-condensing)
Pollution degree
2
Product Profile & Outline
4
5
1
2
3
25.2
1
vibration and shock
2
25.2
Input
DTC1000/2000 series supports the following input sensors:
Input Sensor
0 ~ 50mV linear voltage input
4 ~ 20mA linear current input
0 ~ 20mA linear current input
0 ~ 10V linear voltage input
0 ~ 5V linear voltage input
5
Platinum RTD (Pt100)
Platinum RTD (JPt100)
Thermocouple TXK type
Thermocouple U type
Thermocouple L type
Thermocouple B type
Thermocouple S type
Thermocouple R type
Thermocouple N type
Thermocouple E type
Thermocouple T type
Thermocouple J type
Thermocouple K type
Note 1: The current input is built-in with 249Ω precision resistor. See "How To Set up Current Input" section.
Note 2: Default setting: Pt100 input.
The range of linear input and feedback value is adjustable. Range of input feedback: -999 ~ 9,999. Take 0 ~ 20mA input
as example, -999 refers to 0mA input, and 9,999 refers to 20mA input. If we change the range to 0 ~ 2,000, 0 will refer to
0mA input, and 2,000 will refer to 20mA input. 1 display scale = 0.01mA.
Output
There are several output types available from DTC1000/2000 series: Control Output (heating/cooling), Alarm Output
and Proportional Output.
Control Output
DTC1000/2000 series offers 2 outputs for heating or cooling control. If you require dual loop output, the 2 outputs
should be set to different actions (heating or cooling). If you require the 2 outputs are set to the same control action, only
the control cycle of output 1 will be valid, and the 2 outputs will act at the same time.
The control methods include: PID control, ON/OFF control, Manual control and programmable PID control.
Single Output Control
DTC1000R/V/C/L
1
RUN/STOP switch
2
Wiring and Model name
6
3
DIN rail clip
4
I/O terminals
7
11
5
LED indicators
8
12
6
Mounting hole
10
7
Specification label
13
8
Extension port
9
9
Extension clip
3
10
DIN rail
11
RS-485 communication port
3.4
60.0
12
Extension clip
13
DC power input
DTC2000R/V/C/L
1
Wiring and Model name
5
3
2
DIN rail clip
4
6
10
3
I/O terminals
7
4
LED indicators
9
5
Mounting hole
6
Specification label
8
7
Extension port
2
8
Extension clip
9
DIN rail
10
Extension port
3.4
60.0
Register Value
Available Range
17
0 ~ 50mV
16
4 ~ 20mA
15
0 ~ 20mA
14
0 ~ 10V
13
0 ~ 5V
°
12
-200 ~ 600
C (-328 ~ 1,112
°
11
-20 ~ 400
C (-4 ~ 752
°
10
-200 ~ 800
C (-328 ~ 1,472
°
9
-200 ~ 500
C (-328 ~ 932
o
8
-200 ~ 850
C (-328 ~ 1562
°
7
100 ~ 1,800
C (212 ~ 3,272
°
6
0 ~ 1,700
C (32 ~ 3,092
°
5
0 ~ 1,700
C (32 ~ 3,092
°
4
-200 ~ 1,300
C (-328 ~ 2,372
°
3
0 ~ 600
C (32 ~1,112
°
2
-200 ~ 400
C (-328 ~ 752
°
1
-100 ~ 1,200
C (-148 ~ 2,192
°
0
-200 ~ 1,300
C (-328 ~ 2,372
Cooling hysteresis
Heating hysteresis
ON
Heating
Cooling
PV
OFF
Set Point
Set Point
Figure1: ON/OFF Control
Output
100%
Cooling
0
PV
Set Point
Figure 2: PID Control, Cooling) Control
Dual Output Control
Heating hysteresis
ON
Heating
OFF
Deadband: Dead
Bandwidth: Positive
Output
Heating
Cooling
PV
0
Set Point
Figure 5: PID control
Programmable PID Control & Parameters Setting
The programmable PID control includes 8 patterns (Pattern 0 ~ 7). Each pattern contains 8 steps (Step 0 ~ 7) and
parameters: "link pattern", "cycle" and "the number of steps".
Start Pattern: The user can set up which pattern is the start pattern for the programmable control.
Steps: Includes the settings of the two parameters, set point X and execution time T, indicating that the set point (SV)
°
F)
has to rise to temperature X after the period of execution time T. If the result of the set point X is the same as that of
the previous setting, the process is called "Soak"; otherwise, it is called "Ramp". Therefore, the programmable control
°
F)
is also known as Ramp/Soak control. The default setting of the first step is Soak control. The temperature will first rise
°
F)
to the set point X and remain at X. The total execution time is T.
°
F)
Link Pattern: The pattern to be executed following the current pattern. If the setting is not 0 ~ 7, the set point will
°
F)
remain at the last pattern.
°
F)
Cycle: The additional number of cycles for a pattern. For example, if the parameter is set to 2, it refers to the pattern
°
F)
has to execute additional twice, totaling the execution to 3 times including the original one.
°
F)
The Number of Steps: The number of steps in each pattern (range: 0 ~ 7). For example, if the parameter is set to 2,
°
F)
it refers to the pattern will execute Step 0 ~ Step 2, and other steps will not be executed.
°
F)
°
F)
The Execution: Available settings include "run", "program hold", "program stop" or "stop".
°
F)
1. When this parameter is set to "run", the program will start its execution from step 0 of the start pattern.
°
2. When this parameter is set to "program hold", the program will stop and the temperature will stop at the SV before
F)
the program stops. If the user sets to "run" again, the program will resume the step before the program stops and
execute by the remaining time.
3. When this parameter is set to "program stop", the program will stop and the temperature will stop at the SV before
the program stops. If the user sets to "run" again, the program will execute again from Step 0 of the start pattern.
4. When this parameter is set to "stop", the program will stop, and the control output will be disabled.
Proportional Output:
If Output 1 of this DTC1000/2000 series is linear voltage or current, the user can set it to "Proportional Output".
Proportional output refers to the output varies with the input. For example, if the input range is set to 0 ~ 1,000, and
when the input value is 0, the output will be 0mA or 0V. When the input value is 1,000, the output will be 20mA or 10V.
Output
10V or 20mA
Negative
output slope
0V or 4mA
PV Low
PV High
Alarm Output
DTC1000/2000 series offers 12 alarm modes. When the PV exceeds or falls below SV, the alarm output will be enabled.
See the table below for the 12 modes.
Mode
Alarm Type
0
No alarm
Alarm output will be enabled when the temperature reaches upper and lower
limits.
1
Alarm will be enabled when the PV exceeds SV + AL-H or falls below SV –
AL-L.
Output
100%
Heating
0
PV
Set Point
Figure 3: PID Control, Heating Control
Deadband
Cooling hysteresis
Cooling
PV
Set Point
Figure 4: ON/OFF Control
Deadband: Dead
Bandwidth: Negative
Output
Cooling
Heating
PV
0
Set Point
Figure 6: PID Control
Output
Positive output slope
10V or 20mA
0V or 4mA
PV
PV
PV Low
PV High
Figure 7: Proportional Output
Alarm Output Operation
OFF
ON
OFF
AL-L
SV
AL-H
