Delta Electronics Delphi ND Series Specification Sheet page 5

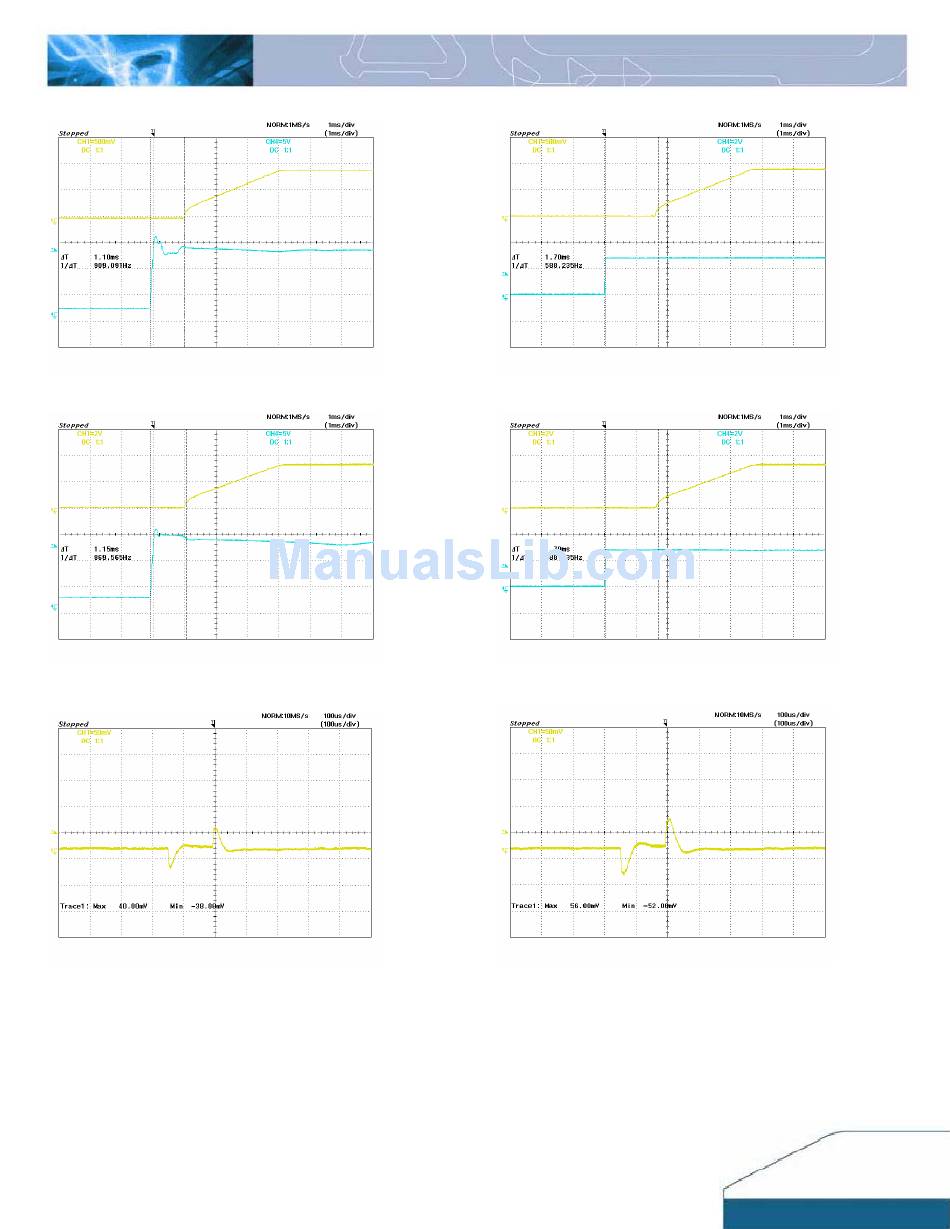

ELECTRICAL CHARACTERISTICS CURVES (CON.)
Figure 13: Turn on delay time at 12Vin, 0.9V/50A out
Ch1: Vout Ch4: Vin
Figure 15: Turn on delay time at 12Vin, 3.3V/50A out
Ch1: Vout Ch4: Vin
Figure 17: Typical transient response to step load change at
10A/μS from 50%to 75% and 75% to 50 of Io, max at 12Vin, 0.9V
out
DS_ND12S10A_07172008
Figure 14: Turn on delay time Remote On/Off, 0.9V/50A out
Ch1: Vout Ch4: Enable
Figure 16: Turn on delay time at Remote On/Off, 3.3V/50A out
Ch1: Vout Ch4: Enable
Figure 18: Typical transient response to step load change at
10A/μS from 50%to 75% and 75% to 50 of Io, max at 12Vin, 1.2V
out
5
