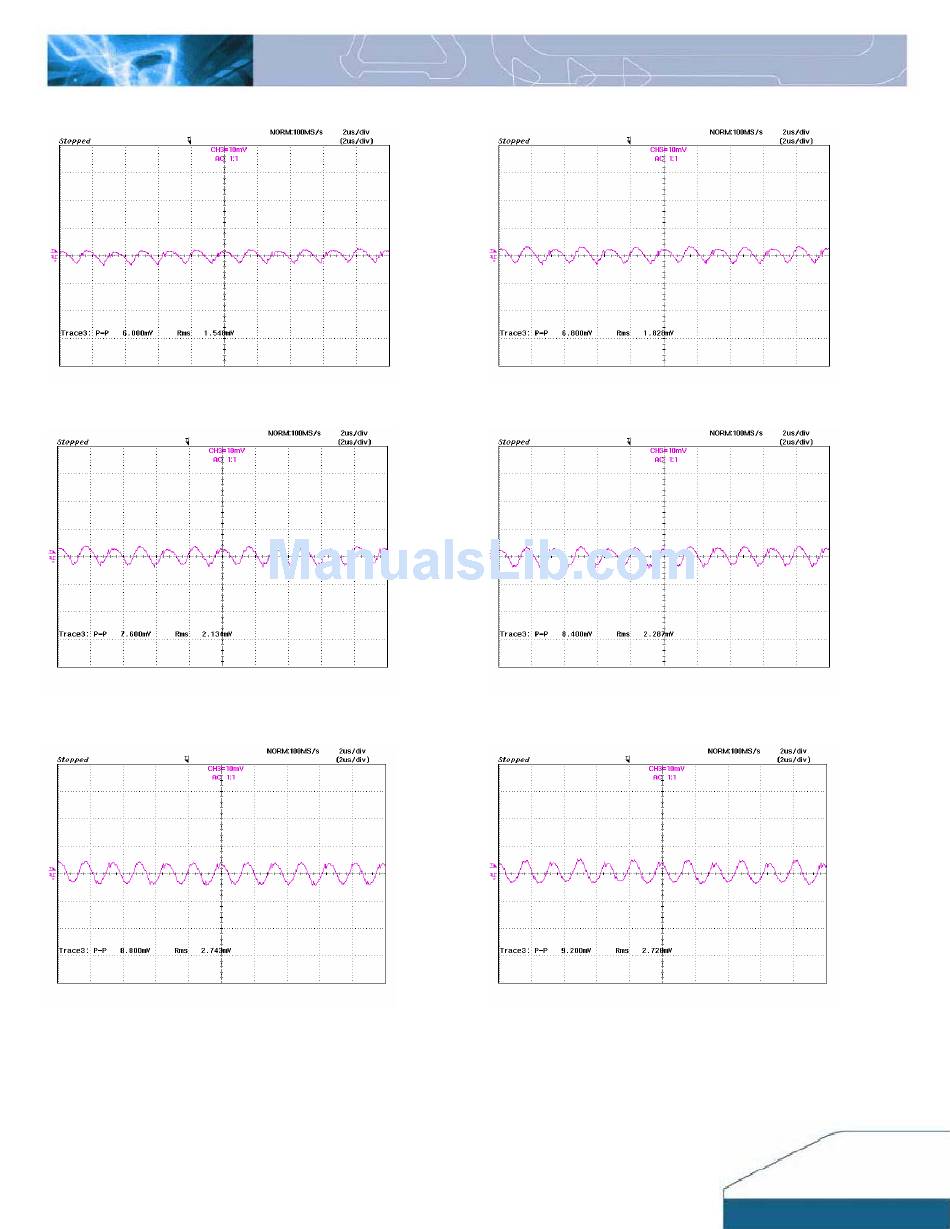

ELECTRICAL CHARACTERISTICS CURVES (CON.)
Figure 7: Output ripple & noise at 12Vin, 0.9V/50A out
Figure 9: Output ripple & noise at 12Vin, 1.5V/50A out
Figure 11: Output ripple & noise at 12Vin, 2.5V/50A out
DS_ND12S10A_07172008
Figure 8: Output ripple & noise at 12Vin, 1.2V/50A out
Figure 10: Output ripple & noise at 12Vin, 1.8V/50A out
Figure 12: Output ripple & noise at 12Vin, 3.3V/50A out
4
