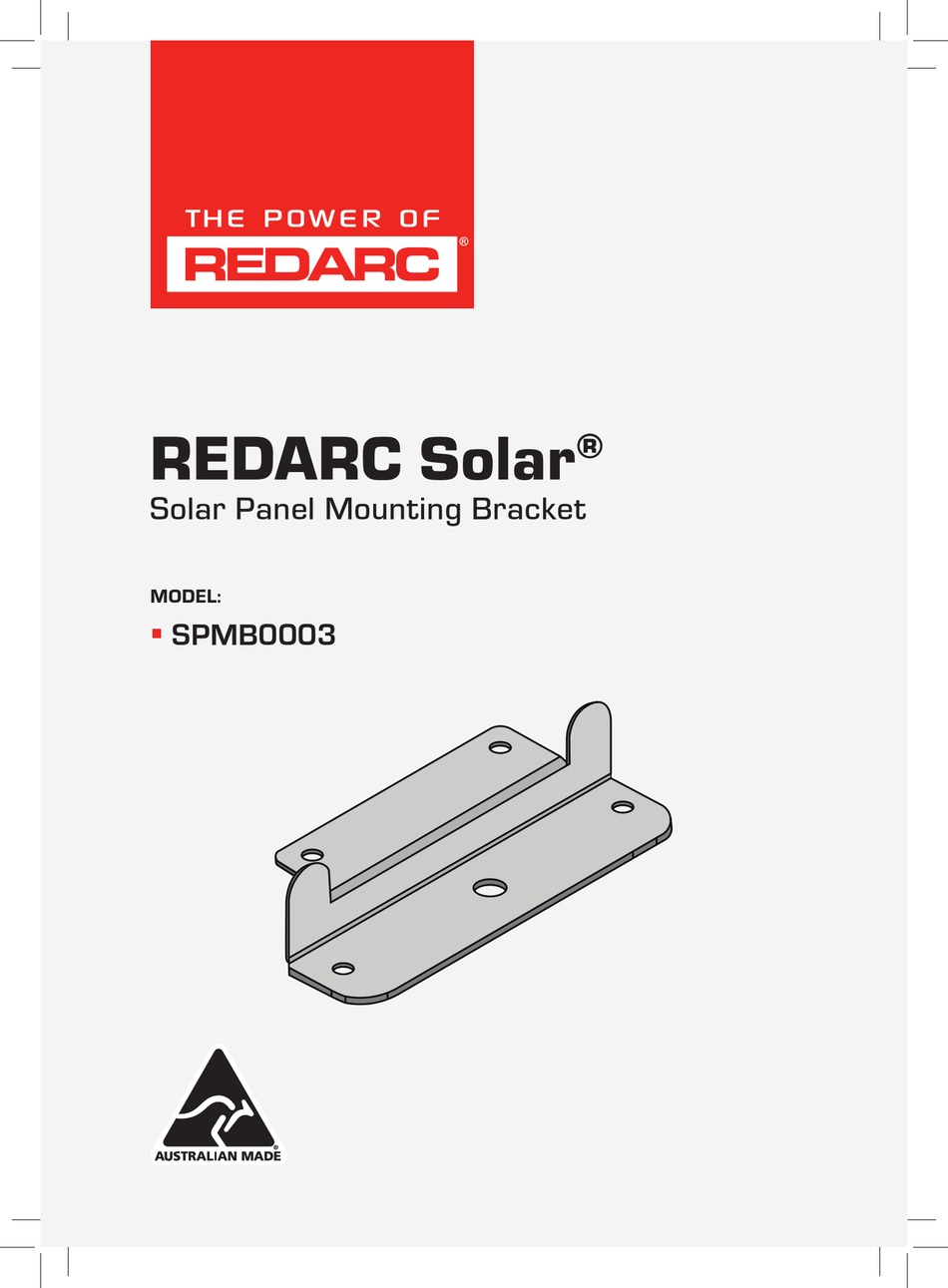

- Page 1 REDARC Solar ® Solar Panel Mounting Bracket MODEL: SPMB0003 ƒ...
- Page 2 Solar Panel Mount Bracket The SPMB0003 Solar Brackets is designed to mount REDARCs fixed solar panels to Rhino–Rack Pioneer Platform crossbars. REDARC stock three other variants of Solar Brackets to suit different solar panels and crossbars: SPMB0001 — suited to mount solar panels with both Rhino–Rack vortex crossbars and...
- Page 3 Do not install the mounting brackets unless you have read and understood this manual. Disclaimer: REDARC accepts no liability for any injury, loss or property damage which may occur from the improper or unsafe installation or use of its products.
- Page 4 SOLAR BRACKET PARTS 1. Solar Panel Bracket 5. M8 Channel Nut Supplied with 4 brackets. Supplied with 4 channel nuts. M6 S/S Nyloc Nut 6. M8 × 19 mm S/S Flat Washer Supplied with 8 nuts. Supplied with 4 washers. 3. M6 × 12 mm S/S Flat Washer 7.
- Page 5 INSTALLATION DETERMINE THE MOUNTING POSITION The Solar Brackets must be bolted and fitted to the solar panel then clamped to the crossbars. Do not install the Solar Brackets to the crossbars first. To determine where to bolt the Solar Brackets to the solar panel place the solar panel in the desired location on the crossbars and mark where each Solar Bracket needs to be positioned and bolted to the solar panel.
- Page 6 ASSEMBLE BRACKETS TO PANEL Position and bolt the Solar Bracket in-line with the Solar Panel drilled holes on the solar panel using the supplied M6 Nyloc nuts, M6 Flat Washers and M6 Phillips bolt. CAUTION Leave adequate clearance around the solar panels to ensure the panels do not become partially shaded when in-use, and to allow access for maintenance of Solar Bracket...
- Page 7 +52 (558) 526-2898 Design and specifications are subject to change without notice. | Copyright © 2021 REDARC Electronics Pty Ltd. All rights reserved. REDARC® and THE POWER OF REDARC® are trademarks of REDARC Electronics Pty Ltd. | REDARC®, THE POWER OF REDARC®, and REDARC Solar®...
- Page 8 CONTACT Tech Support 1300 REDARC Head Office +61 8 8322 4848 New Zealand +64 222 1024 UK & Europe +44 (0)20 3930 8109 redarc.com.au +1 (704) 247 5150 Canada +1 (604) 260 5512 Mexico +52 (558) 526-2898 redarcelectronics.com INST138−2...
