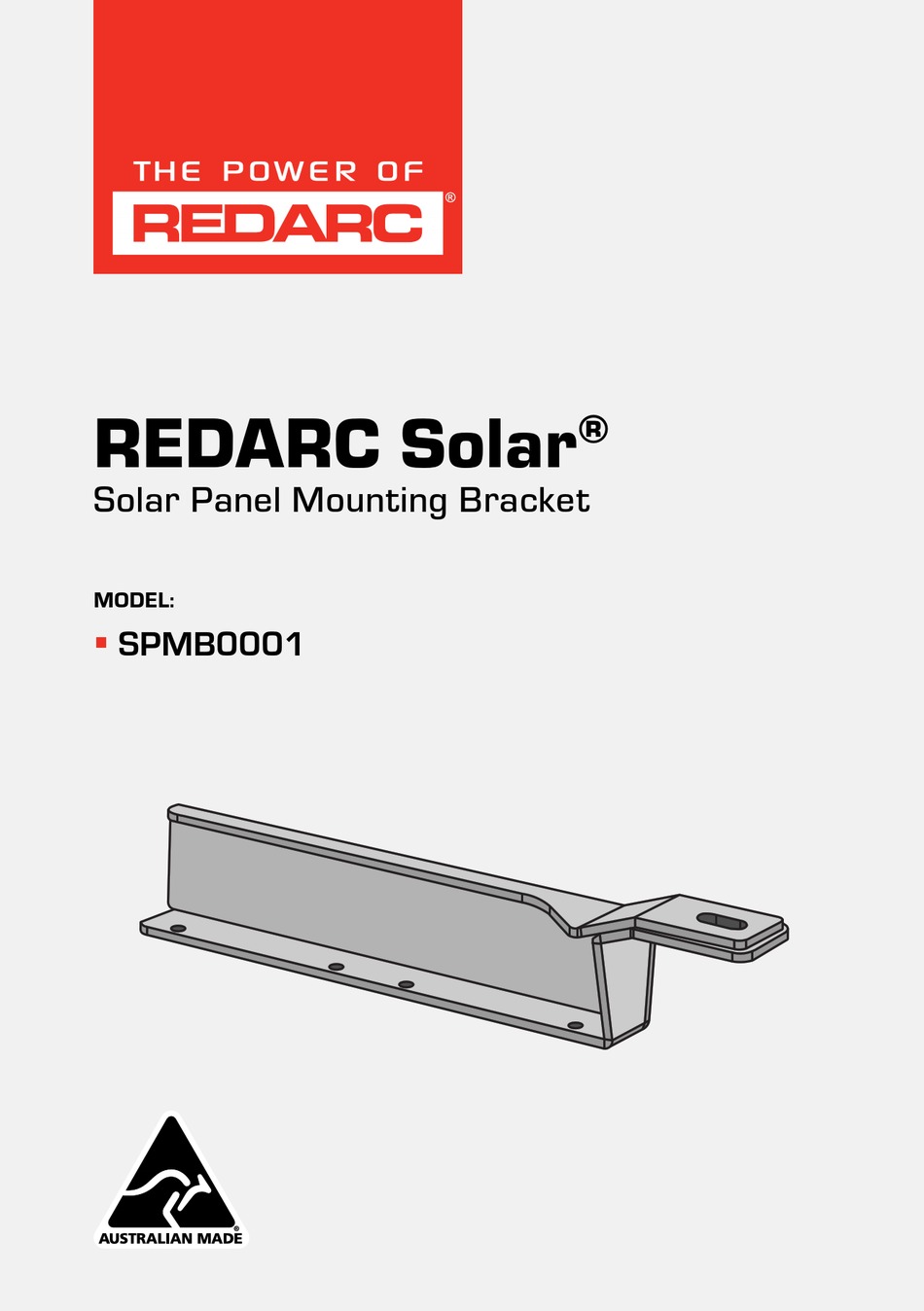

- Page 1 REDARC Solar ® Solar Panel Mounting Bracket MODEL: SPMB0001 ƒ...
- Page 2 Solar Panel Mount Bracket The SPMB0001 Solar Bracket is designed to mount solar panels to sports style crossbars suited and compatible with both Rhino–Rack Vortex crossbars and the Rhino–Rack heavy duty crossbars. The suitability of this product depends on the vehicle and solar panel used with the mounting bracket.
-
Page 3: Warnings And Safety Information
Do not install the Solar Brackets unless you have read and understood this manual. Disclaimer: REDARC accepts no liability for any injury, loss or property damage which may occur from the improper or unsafe installation or use of its products. - Page 4 SOLAR BRACKET PARTS 1. Solar Panel Bracket 6. M8 × 16 mm S/S Allen Key Bolt Supplied 2 left and 2 right brackets. Supplied with 4 bolts. 2. M6 S/S Nyloc Nut 7. M8 × 20 mm S/S Allen Key Bolt Supplied with 16 nuts. Supplied with 4 bolts. 3.
-
Page 5: Installation
INSTALLATION DETERMINE THE MOUNTING POSITION The Solar Brackets must be bolted and fitted to the solar panel then mounted to the crossbars. Do not install the Solar Brackets to the crossbars first. To determine where to bolt each mounting bracket to the solar panel, measure the distance between the central points of the two crossbars on the vehicle. -
Page 6: Completed Installation
Slide the Channel Nut into the crossbar. Next, fit an M8 Bolt through the Spring Washer, Flat Washer and Solar Bracked into the Channel Nut. Apply this fitting to each Solar Bracket to complete the installation. REDARC recommend using the M8 × 16 mm Bolt for Vortex Aero bars and the M8 × 20 mm Bolt for H/D bars. COMPLETED INSTALLATION... -
Page 7: Limited Warranty
+52 (558) 526-2898 Design and specifications are subject to change without notice. | Copyright © 2021 REDARC Electronics Pty Ltd. All rights reserved. REDARC® and THE POWER OF REDARC® are trademarks of REDARC Electronics Pty Ltd. | REDARC®, THE POWER OF REDARC®, and REDARC Solar®... - Page 8 CONTACT Tech Support 1300 REDARC Head Office +61 8 8322 4848 New Zealand +64 9 222 1024 UK & Europe +44 (0)20 3930 8109 redarc.com.au +1 (704) 247 5150 Canada +1 (604) 260 5512 Mexico +52 (558) 526-2898 redarcelectronics.com INST136−2...
