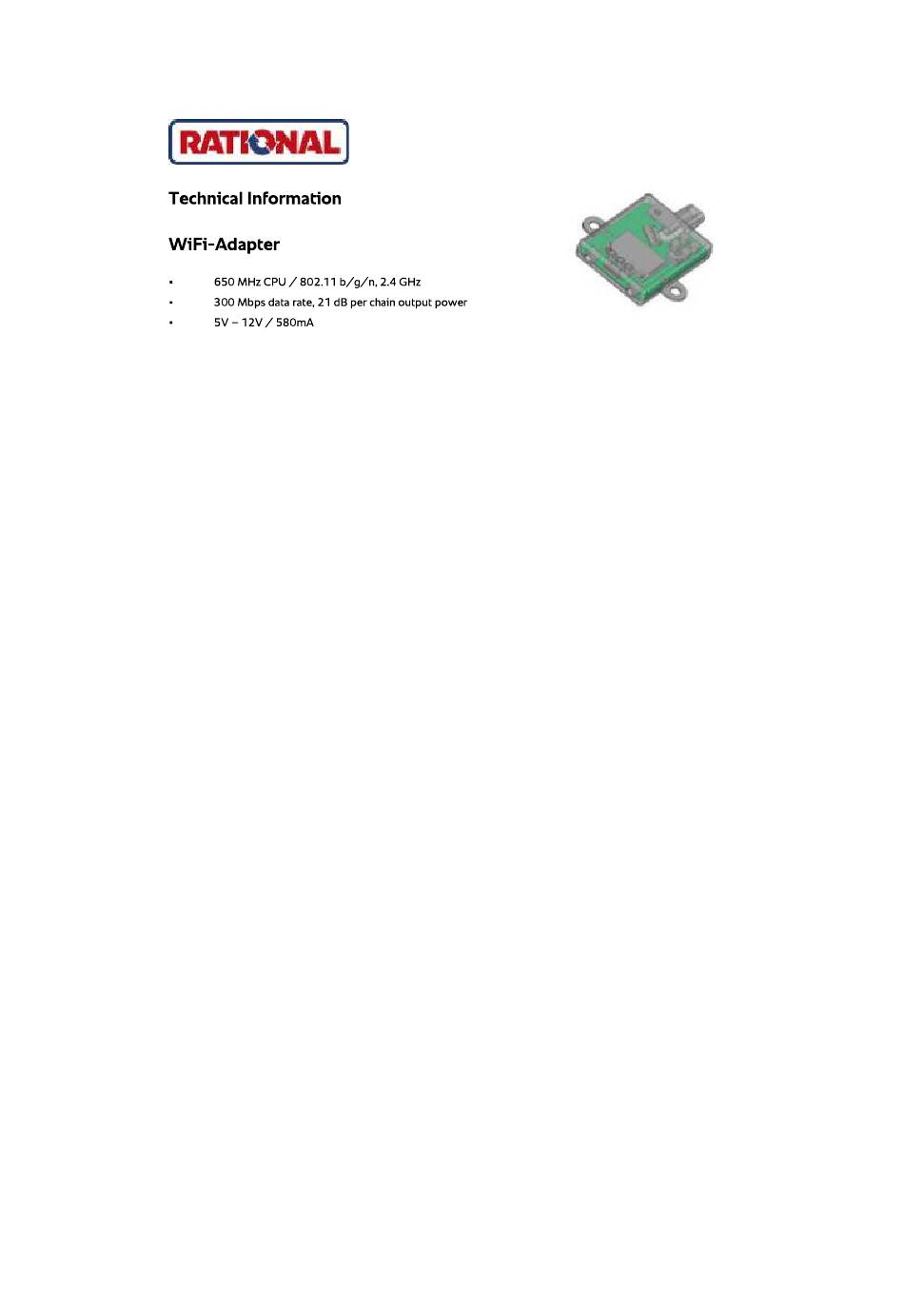

Rational iCombi Pro Original Installation Manual page 27

Dimensions (L x W x H)
Radio technology
Type of modulations
FCC ID
IC ID
Frequency range
No. of channels
Channel bandwidth
Channel separation
Mode of operations
Operating System
Reset
Antenna type
Antenna connector
Antenna
LAN connector
Power connector
Connecting Cable
Supply voltage / Power rating
Status LED's
Max. output power (EIRP)
IP rating
Cooling
Operating Temperature
Markets / Certifications
80.51.858_iCombiPro-iCombiClassic-SCC_WiFi-Adapter_IM_US-nord
69 x 57 x 15 mm (main body)
WiFi
802.11 b/g/n
FCC ID: Z9W-CM4
IC ID: 11468A-CM4 / 011719
2412MHz-2462MHz
(802.11b/802.11g/802.11n(H20) 2422MHz-
2452MHz (802.11n(H40))
11 for 802.11b/802.11g/802.11(H20)) 7 for
802.11n(H40)
2400MHz@802.11b/g/n-H20/n-H40
5MHz
TX / RX
OpenWrt WIFI-Adapter V1.00
Onboard magnetic switch (reed)
external 1/4λ Dipole / omni radiation /
vertical polarization / gain 2.0 dBi
SMA female
2 GHz Antenna with right angle sma plug
RJ45
RAST 2.5 mm x 8 pin
5m
5V / 12 V / 580mA
Power On (blue); LAN link/activity (green);
Wifi link/activity (orange)
18 dBm / 61 mW (limited by OS)
67 / DIN EN 60529
Passive
0°C – 40°C (ambient)
EU / CE / RED; US / FCC, IC
27 / 32
