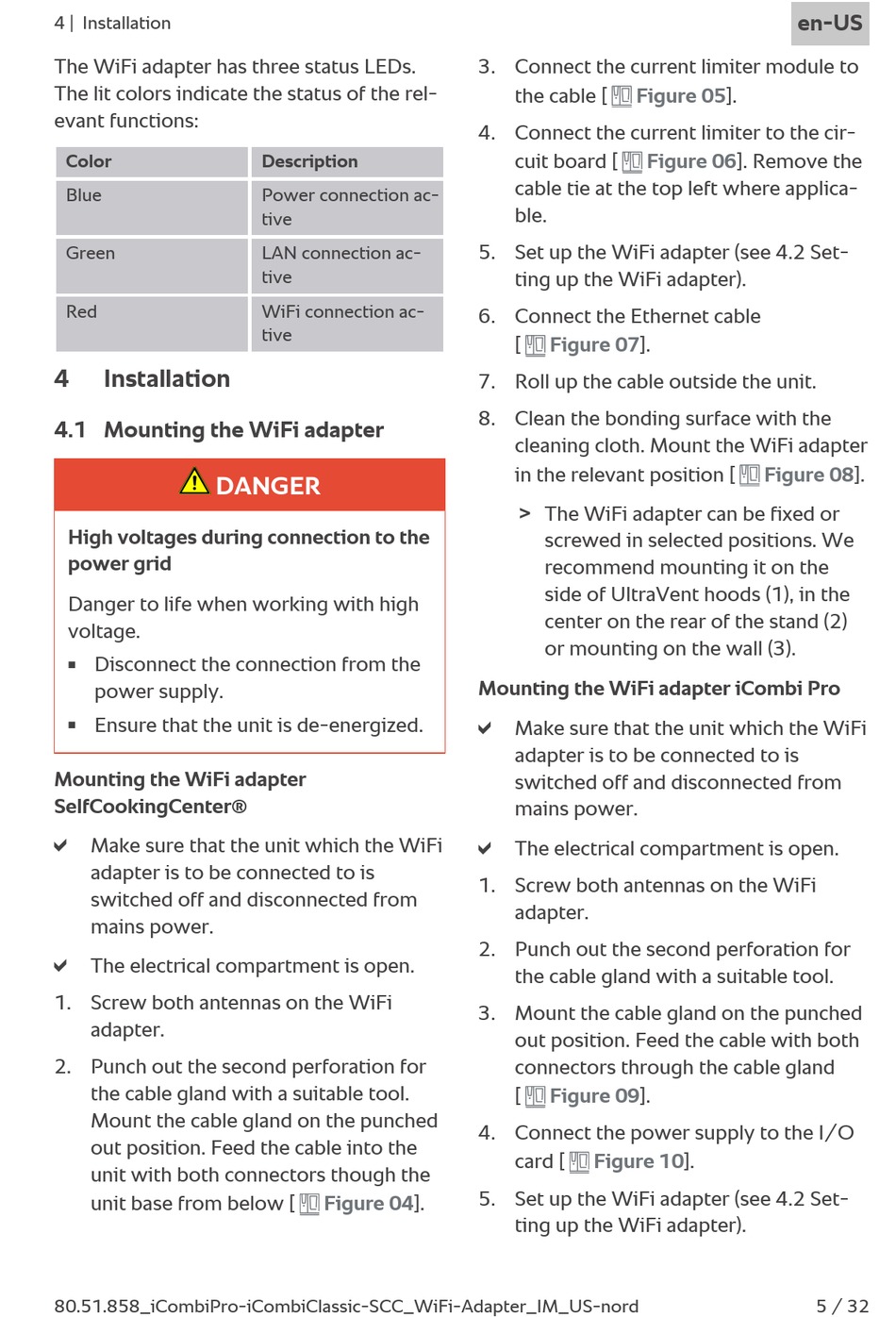

4 | Installation

The WiFi adapter has three status LEDs.
The lit colors indicate the status of the rel-
evant functions:
Color
Blue
Green
Red
4 Installation

4.1 Mounting the WiFi adapter

DANGER
High voltages during connection to the
power grid
Danger to life when working with high
voltage.
Disconnect the connection from the
n
power supply.
Ensure that the unit is de-energized.
n
Mounting the WiFi adapter
SelfCookingCenter®
a Make sure that the unit which the WiFi
adapter is to be connected to is
switched off and disconnected from
mains power.
a The electrical compartment is open.
1. Screw both antennas on the WiFi
adapter.
2. Punch out the second perforation for
the cable gland with a suitable tool.
Mount the cable gland on the punched
out position. Feed the cable into the
unit with both connectors though the
unit base from below [
80.51.858_iCombiPro-iCombiClassic-SCC_WiFi-Adapter_IM_US-nord
Description
Power connection ac-
tive
LAN connection ac-
tive
WiFi connection ac-
tive
Figure 04].
3. Connect the current limiter module to
the cable [ Figure
4. Connect the current limiter to the cir-
cuit board [
cable tie at the top left where applica-
ble.
5. Set up the WiFi adapter (see 4.2 Set-
ting up the WiFi adapter).
6. Connect the Ethernet cable
[ Figure 07].
7. Roll up the cable outside the unit.
8. Clean the bonding surface with the
cleaning cloth. Mount the WiFi adapter
in the relevant position [
>
The WiFi adapter can be fixed or
screwed in selected positions. We
recommend mounting it on the
side of UltraVent hoods (1), in the
center on the rear of the stand (2)
or mounting on the wall (3).
Mounting the WiFi adapter iCombi Pro
a Make sure that the unit which the WiFi
adapter is to be connected to is
switched off and disconnected from
mains power.
a The electrical compartment is open.
1. Screw both antennas on the WiFi
adapter.
2. Punch out the second perforation for
the cable gland with a suitable tool.
3. Mount the cable gland on the punched
out position. Feed the cable with both
connectors through the cable gland
[ Figure 09].
4. Connect the power supply to the I/O
card [ Figure
5. Set up the WiFi adapter (see 4.2 Set-
ting up the WiFi adapter).
en-US
05].
Figure 06]. Remove the
Figure
10].
