Altronix NetWay112 Series Installation Manual page 2

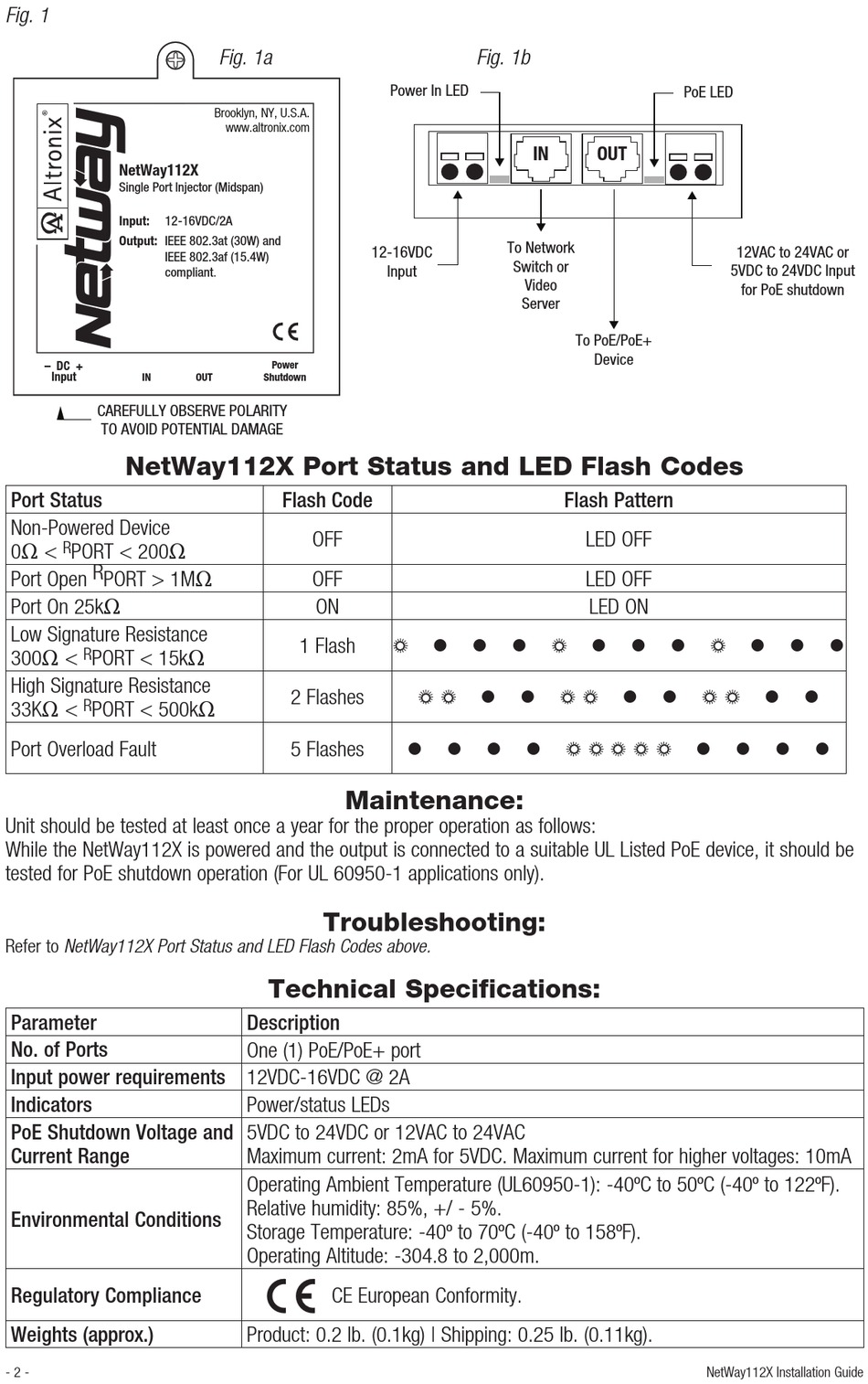

Fig. 1
NetWay112X
Single Port Injector (Midspan)
Input:
12-16VDC/2A
Output: IEEE 802.3at (30W) and
IEEE 802.3af (15.4W)
compliant.
– DC +
Input
IN
CAREFULLY OBSERVE POLARITY
TO AVOID POTENTIAL DAMAGE
NetWay112X Port Status and LED Flash Codes
Port Status
Non-Powered Device
R
0Ω < PORT < 200Ω
Port Open R PORT > 1MΩ
Port On 25kΩ
Low Signature Resistance
R
300Ω < PORT < 15kΩ
High Signature Resistance
R
33KΩ < PORT < 500kΩ
Port Overload Fault
Unit should be tested at least once a year for the proper operation as follows:
While the NetWay112X is powered and the output is connected to a suitable UL Listed PoE device, it should be
tested for PoE shutdown operation (For UL 60950-1 applications only).
Refer to NetWay112X Port Status and LED Flash Codes above.
Parameter
No. of Ports
Input power requirements 12VDC-16VDC @ 2A
Indicators
PoE Shutdown Voltage and
Current Range
Environmental Conditions
Regulatory Compliance
Weights (approx.)
- 2 -
Fig. 1a
Brooklyn, NY, U.S.A.
www.altronix.com
Power
OUT Shutdown
Flash Code
OFF
OFF
ON
1 Flash
2 Flashes
5 Flashes
Maintenance:
Troubleshooting:
Technical Specifications:
Description
One (1) PoE/PoE+ port
Power/status LEDs
5VDC to 24VDC or 12VAC to 24VAC
Maximum current: 2mA for 5VDC. Maximum current for higher voltages: 10mA
Operating Ambient Temperature (UL60950-1): -40ºC to 50ºC (-40º to 122ºF).
Relative humidity: 85%, +/ - 5%.
Storage Temperature: -40º to 70ºC (-40º to 158ºF).
Operating Altitude: -304.8 to 2,000m.
CE European Conformity.
Product: 0.2 lb. (0.1kg) | Shipping: 0.25 lb. (0.11kg).
Fig. 1b
Power In LED
IN
To Network
12-16VDC
Switch or
Input
Video
Server
l l l
Z
l l
Z Z
l l l l
PoE LED
OUT
To PoE/PoE+
Device
Flash Pattern
LED OFF
LED OFF
LED ON
l l l
Z Z
l l
Z Z Z Z
l
Z Z Z Z Z
NetWay112X Installation Guide
12VAC to 24VAC or
5VDC to 24VDC Input
for PoE shutdown
l l l
l l
l l l
