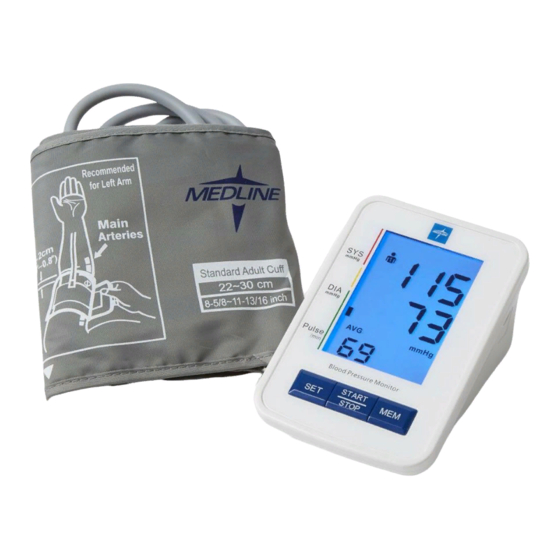

Medline MDS4001 Quick Start Manual

CUFF PLACEMENT
• Place cuff on your left arm at the
same level as your heart, about 1-2
centimeters above the elbow joint.
• Position the tube in the middle of
your arm, in line with your middle
finger.
• The cuff should be snug but
comfortable.
BODY PLACEMENT FOR
MEASUREMENT
• Seated – Place arm, palm-up, on
flat surface. Feet flat on floor. Cuff
level with heart.
Press START/STOP to turn the
monitor on. After the display shows
"00", blood pressure measurement
will begin automatically. To turn off
the monitor when measurement is
complete, press START again or wait
1 minute for automatic shutoff.
GETTING STARTED
• Setting Date and Time
1. Make sure that the unit is powered off
2. Press and hold the SET button for 5 seconds until the year begins to
flash, then release.
3. Press the MEM button repeatedly until the desired year is displayed.
4. Then press the SET button to set the correct month. The month
value will begin to flash. Press the MEM button repeatedly until the
correct day is displayed.
5. Press the SET button to now set the day. The day value will begin
to flash. Repeatedly press the MEM button until the correct day has
been selected.
6. Then press the SET button to set the time. The hour value will begin
to flash. Press the MEM button repeatedly until the desired hour has
been selected. Please note that time can only be set in Military time
(hours 0-24). For example, a time of 1:00 PM would be 13:00.
7. Press the SET button to change the minute value. The minute value
will begin to flash. Repeatedly press the MEM button until the
desired minute value has been selected.
8. Press the SET button to exit the date and time setting adjustment.
See the enclosed Manual for further details and instructions.
The cuff plugs in on the LEFT side of the machine. The port on the
RIGHT is for use with an A/C adapter (sold separately).
IMPORTANT!
You can stop the inflation or deflation of the cuff at any time by
pressing the START button.
Please read the Manual for this monitor prior to using. If you have any
questions or are experiencing difficulties, please call the Medline Service
Center at 1-800-MEDLINE (1-800-633-5463). RL17CN1
TIPS FOR TAKING YOUR BLOOD PRESSURE
The right size cuff should not feel
1.
too loose or tight. Place cuff on
arm with the tubing lined up with
your middle finger.
2. Secure the cuff snugly with hook
& loop closures, allowing room for
no more than two fingers.
3. Sit quietly for five minutes before
testing. Support the back
and let feet rest on floor, keeping
legs uncrossed.
4. Keep the arm and body still
and avoid talking during the
measurement process.
5. Keep the arm being tested at
heart level and let the other arm
relax in a comfortable position.
